Section 14 STEERING SYSTEM
Subsection 01 (STEERING SYSTEM)

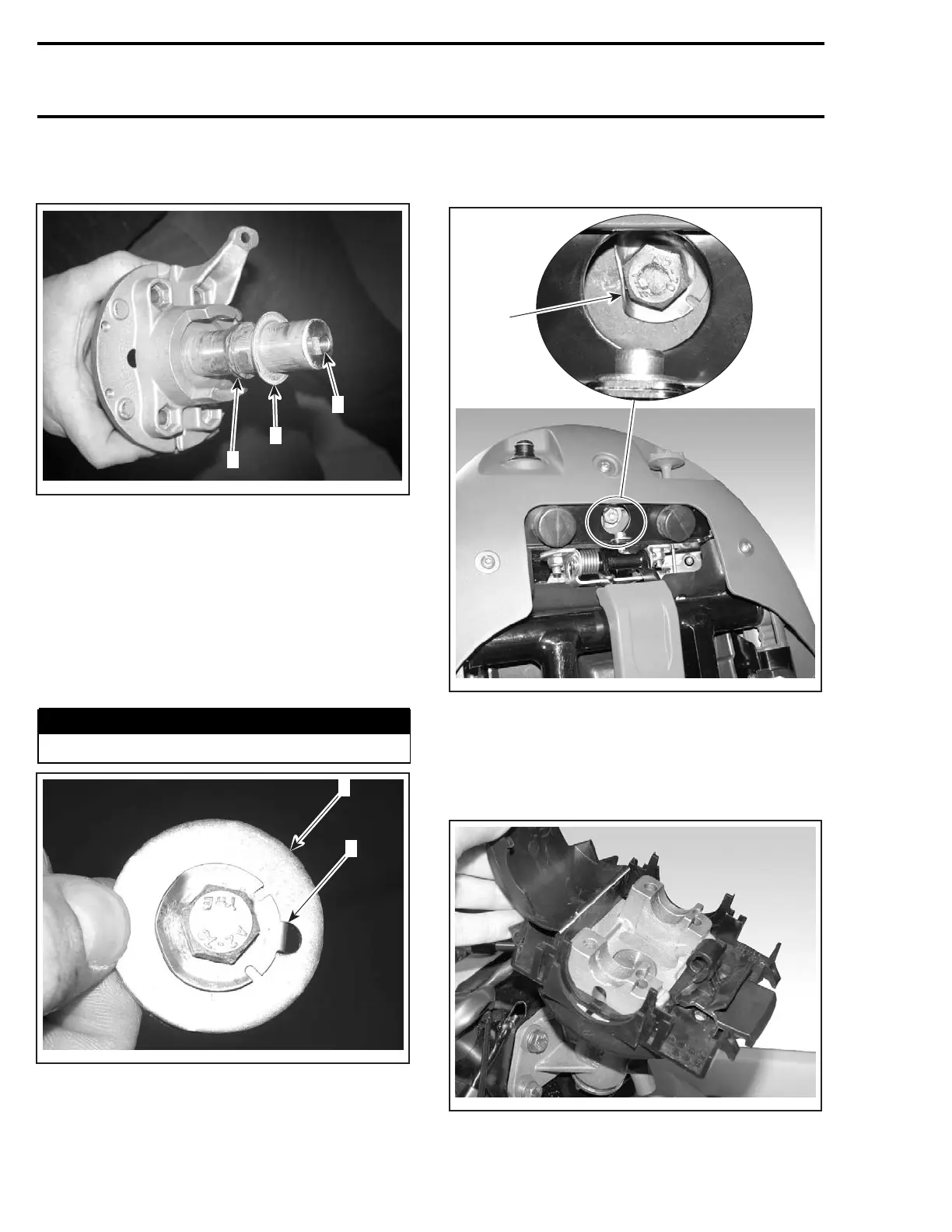

Ensure spring washer and washer are positioned
as shown.
F22K1TA
1
2
3
1. Spring washers
2. Washer
3. Notice the square end
Install steering stem into steering support and po-
sition its lever on the RH side.
Position rounded edge of washer no. 38 opposite
of screw head and position washer square hole
into square end of stem.
Using a new tab lock no. 21 position its small tab
into hole of washer no. 38.
WARNING
Ensure to use a new tab lock.
F22K1UA
1
2
1. Rounded edge on backside
2. Small tab into hole of washer
Torque screw no. 22 then bend tab lock edge
against a flat side of screw head.
1
F22K0ZA
1. Tab lock edge against flat side of screw head
Properly route wiring harness and steering cable
in steering support notches.
First install latch lever no. 18 then steering
padding support no. 16.
F22K1VA
74 smr2004-3D
