Portable X-ray Units
Service Manual
SM-1076R2
126
7. Remove the Control Driver Board as described in Section 5.3.14 (steps
2. to 10.) without disassembling the Filaments HF Board (A9500--01).

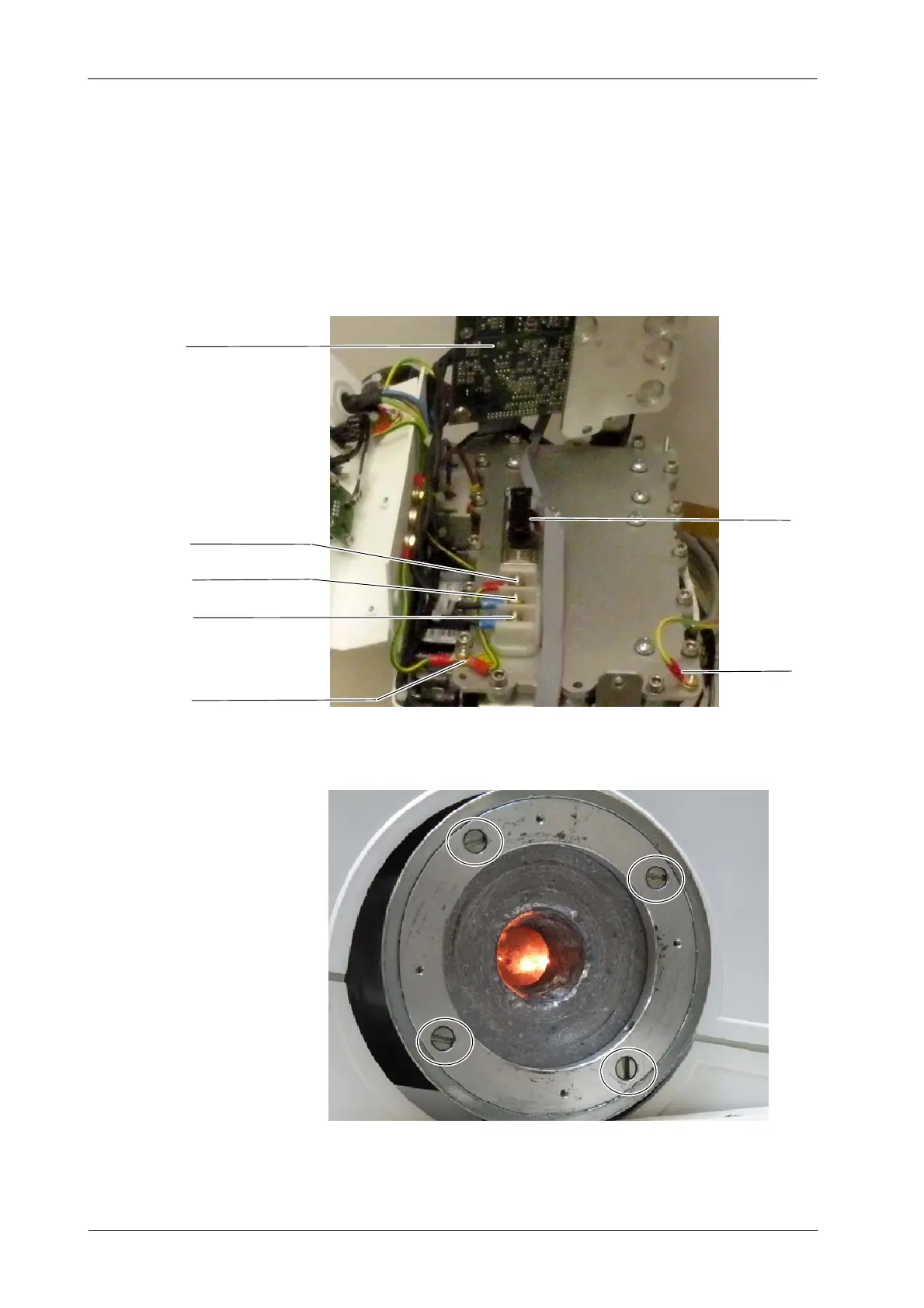

8. From the HV Transformer, disconnect the J10 Ribbon cable, the wires
connected to TR1--2, TR1--3, TR1--1 (GND) and the three GND wires
fixed to the HV T ransformer screws.
GND Wire
GND Wires
J10
TR1--3
TR1--2
TR1--1 (GND)
Control Driver Board
9. Remove the Collimator Adaptation Ring.
To Next Page
