Sedecal SPL-HF 2.0 - 5.3.2 UPPER COVER

Portable X-ray Units
Service Manual
SM-1076R2
75
5.3.2 UPPER COVER
1. T urn the Unit Off and Disconnect it from mains.
2. Place the Unit on a table.
It is not necessary to remove the Handle for covers replacement.

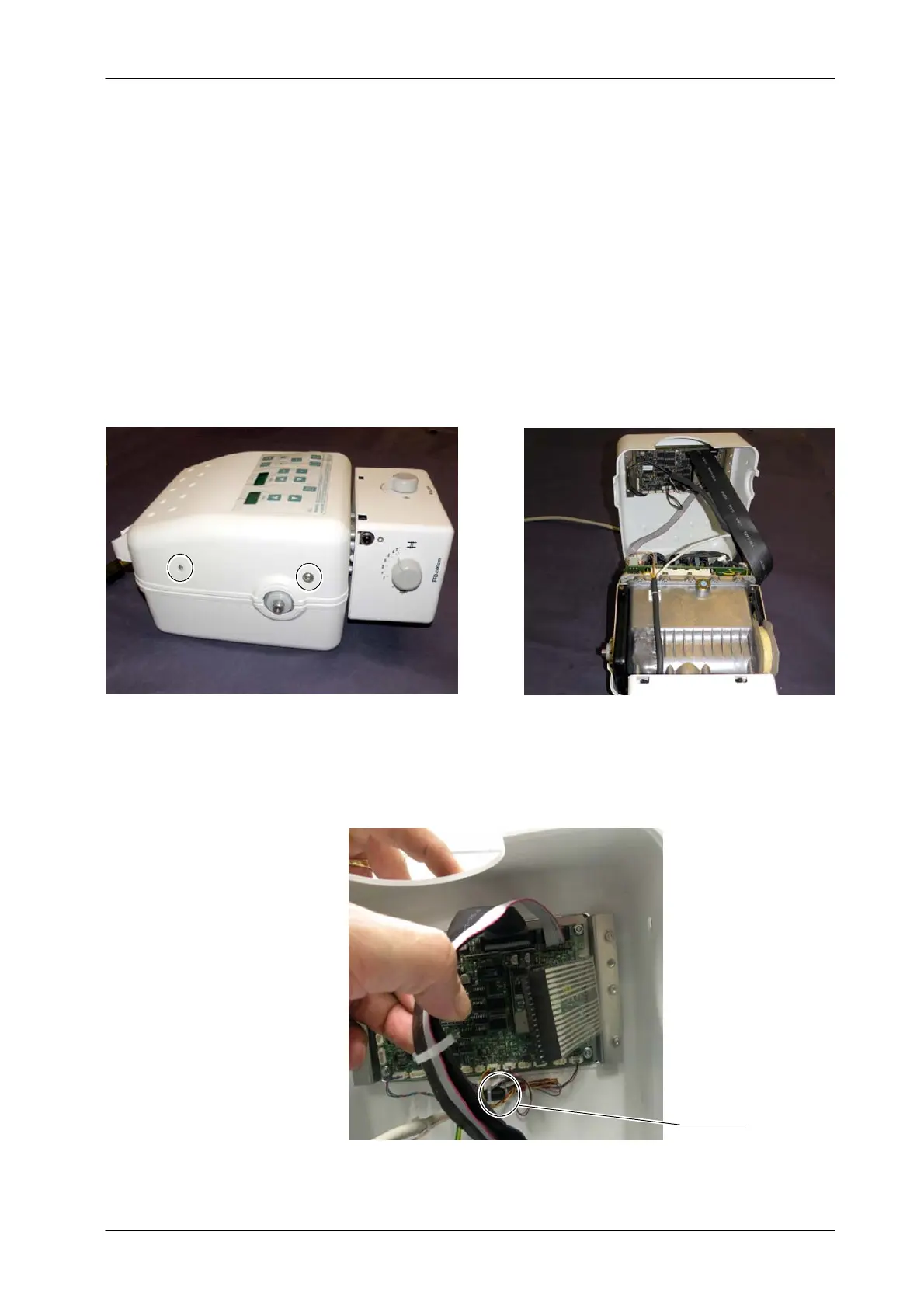

3. Remove the Upper Cover screws and carefully lift the Upper Cover .
4. Cut the tie wrap of the inner part of the Cover. It is not necessary to
disconnect any cable from the Portable Control Board (A3175--03)for
Upper Cover replacement.
Tie Wrap
Note .
