Sedecal SPL-HF 2.0 - 5.3.1 ACCESS INSIDE THE UNIT

Portable X-ray Units
Service Manual
SM-1076R2
73

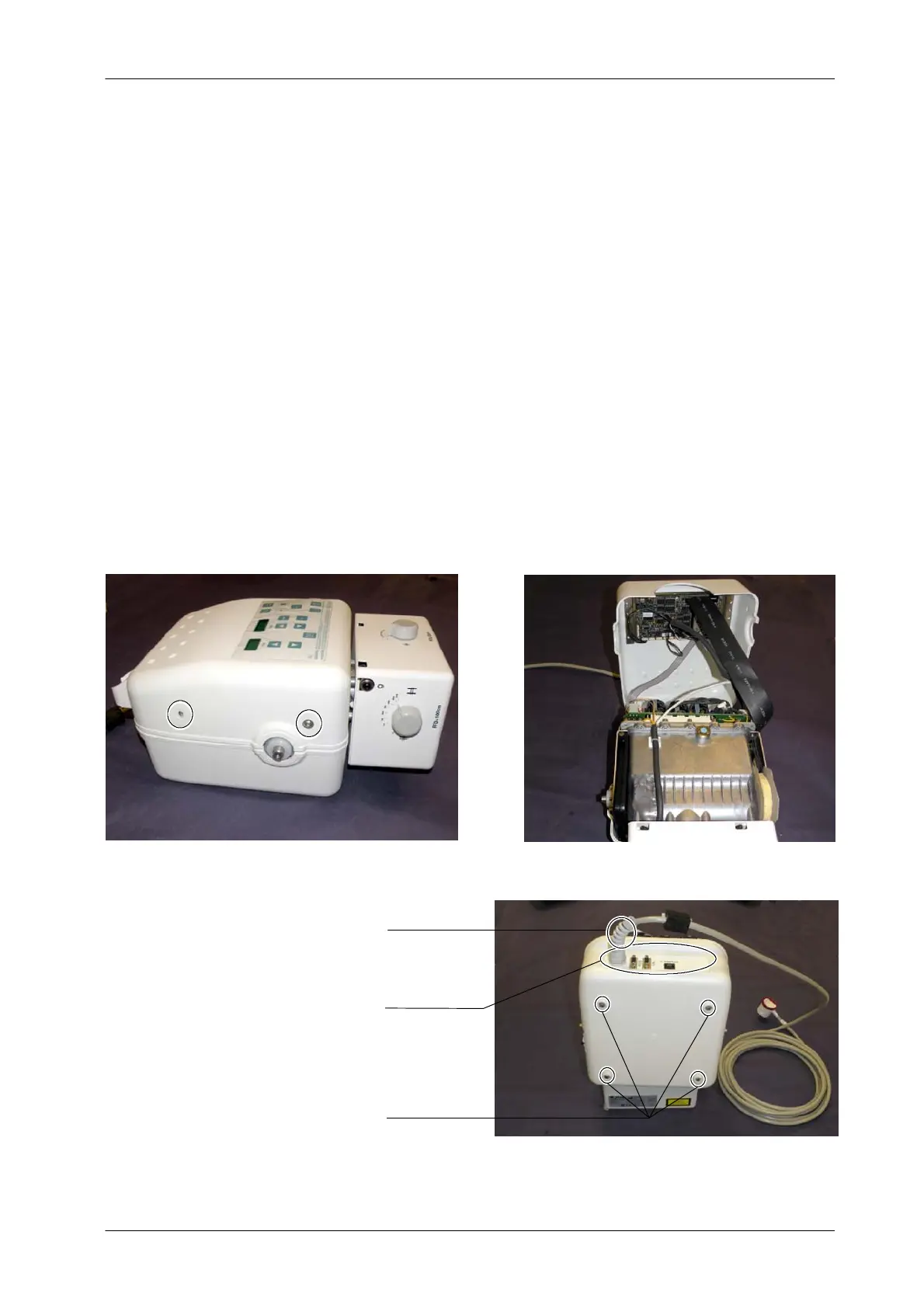

5.3.1 ACCESS INSIDE THE UNIT
This section only describes the previous steps to carry out the
components replacement inside the Unit. For covers replacement
refer to Sections 5.3.2 and 5.3.3.
1. T urn the Unit Off and Disconnect it from mains.
2. Place the Unit on a table.
It is not necessary to remove the Handle to access inside the Unit.
3. Remove the Upper Cover screws and carefully lift the Upper Cover . It is
not necessary to unplug any cable.
4. Remove the four legs located at the Lower Cover.
Four legs
Connectors Panel
Power cable
Note .
Note .
