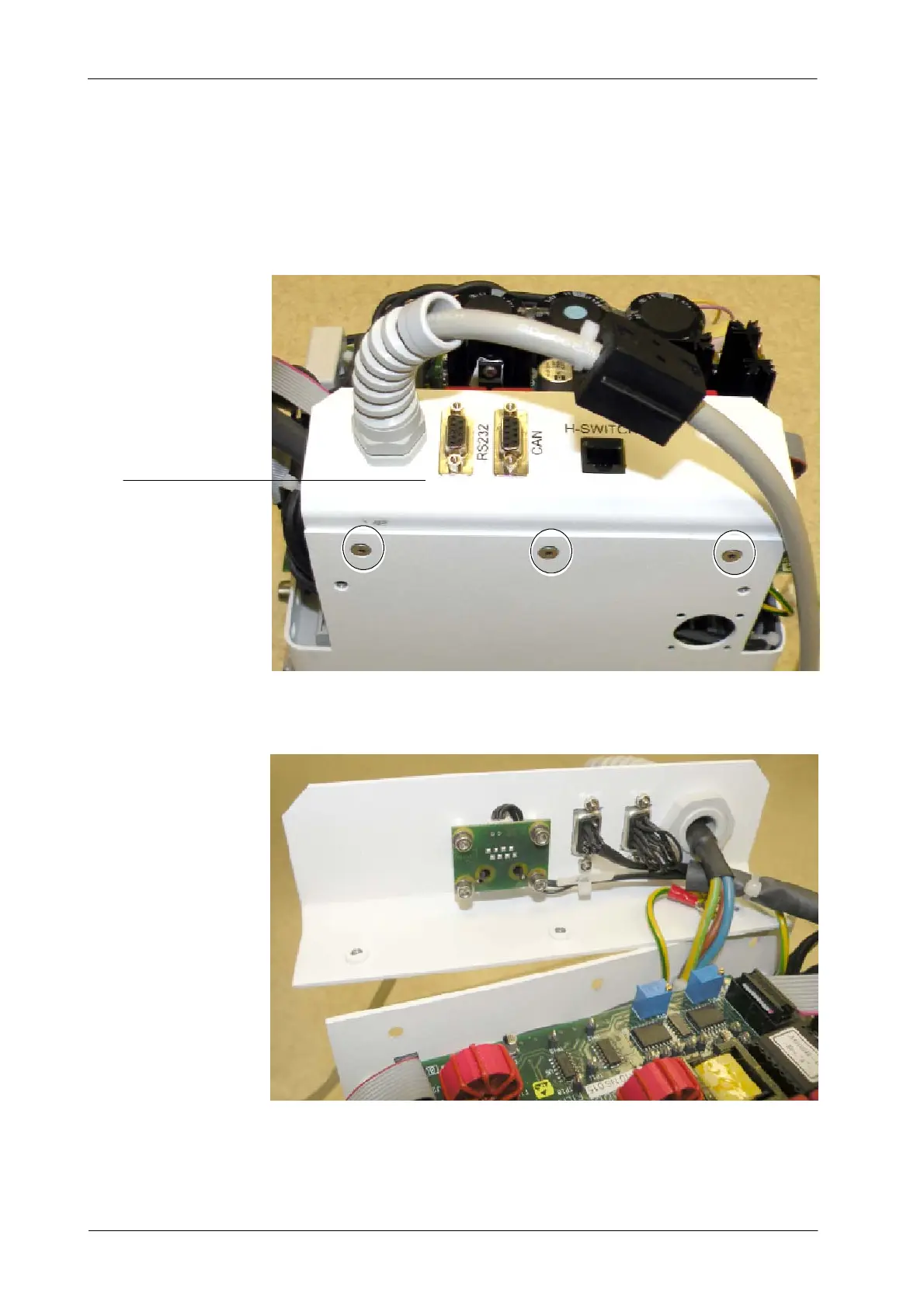

5. Carefully remove the Lower Cover. Pass the Power Line cable through

the Connectors Panel window.

6. Unscrew the Connectors Panel.

Connectors Panel

7. Lift the Connectors Panel without unplugging any cable.
