5.3.6 COLLIMATOR
For replacement of the internal parts of the Collimator included in
the Spare Parts List of this Manual, refer to the Collimator Manual.
1. T urn the Unit Off and Disconnect it from mains.
2. Place the Unit on a table.
3. If applicable remove the DAP Rails and SID Guard attached to the
Collimator (Refer to Section 5.3.7).
4. Remove the Upper cover screws and carefully lift the cover (refer to
Section 5.3.2).
5. Carefully cut the tie wraps.
6. Disconnect the GND cable from the HV Transformer chassis, the J4
connector from the Control Driver Board (A3189--04) and the J5
connector from the Portable Control Board (A3175--03).
7. Take out the cable connected to J5 from the Heat Shrink.

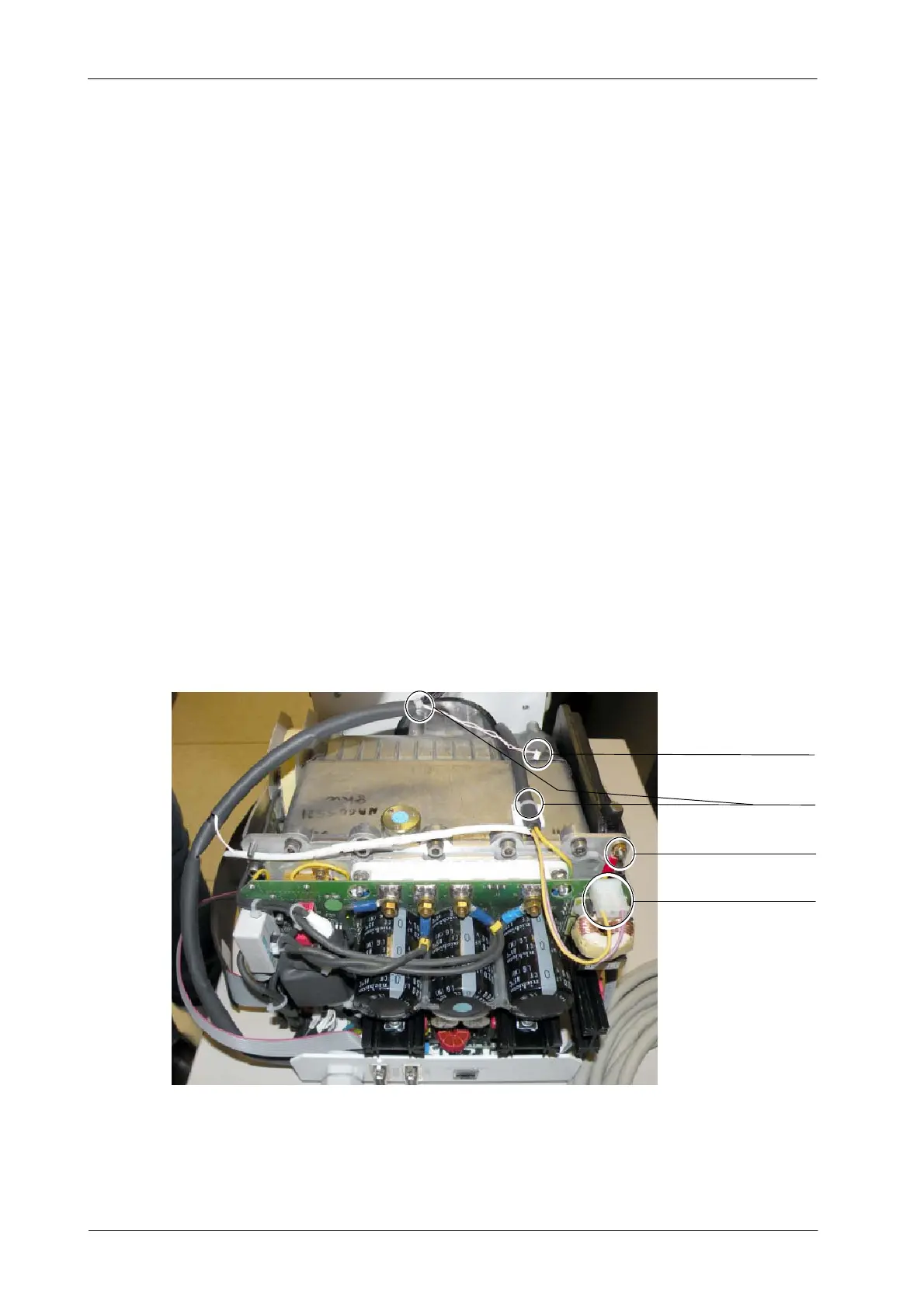

Ground Cable
J4 Connector
Tie wraps
J5 Connector
Note .
