5.3.11 HANDSWITCH BOARD
1. Access inside the Unit by removing Upper and Lower Covers and
unscrewing the Connectors Panel (refer to Section 5.3.1).

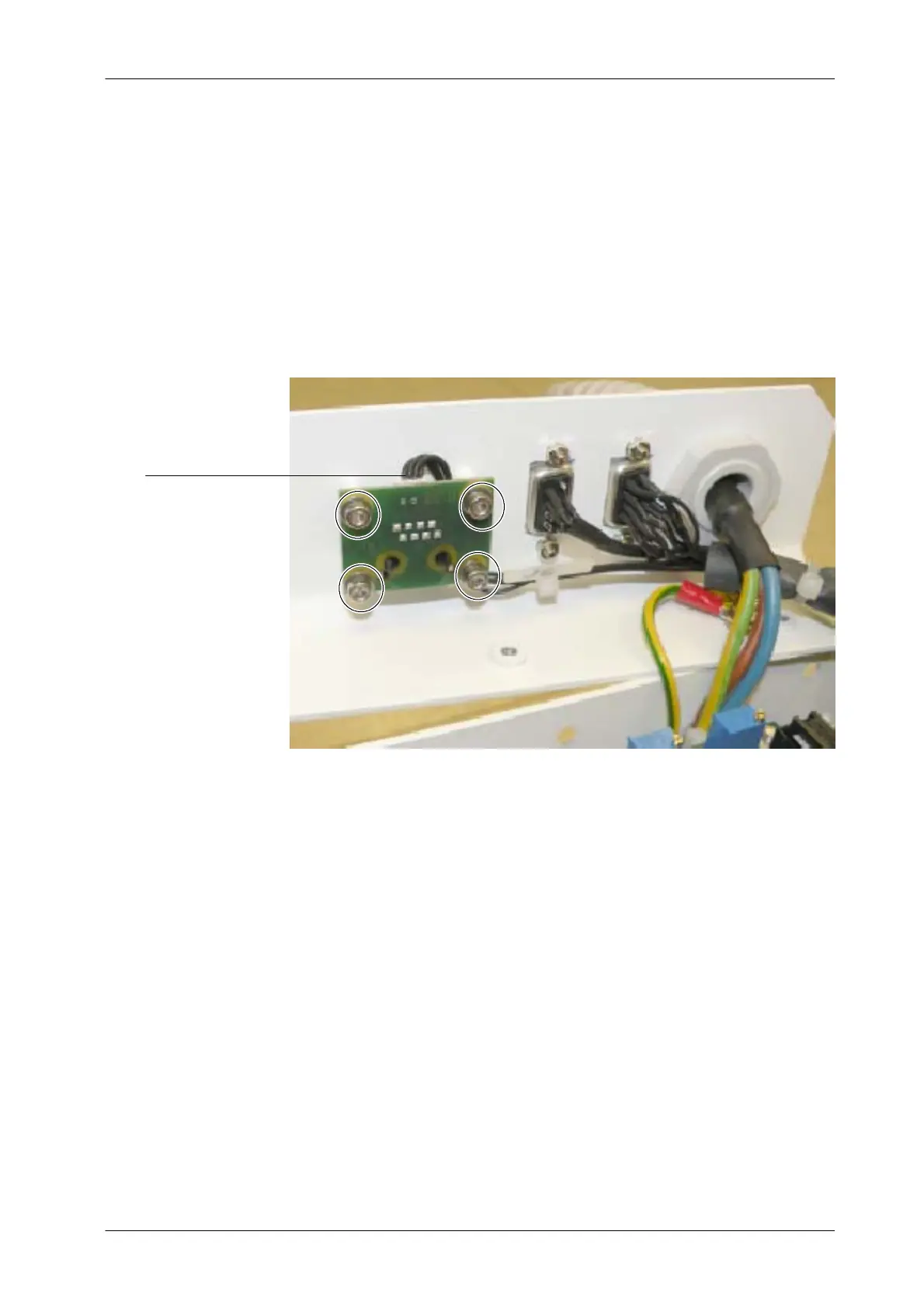

2. Remove the four screws from the Handswitch Board (A9536--01) and
disconnect the J6 connector.
J6 connector
3. Replace the Handswitch Board (A9536--01), reconnect and assemble in
reverse order.
