Sedecal SPL-HF 2.0 - 5.3.12 SNUBBER

Portable X-ray Units
Service Manual
SM-1076R2
88
5.3.12 SNUBBER

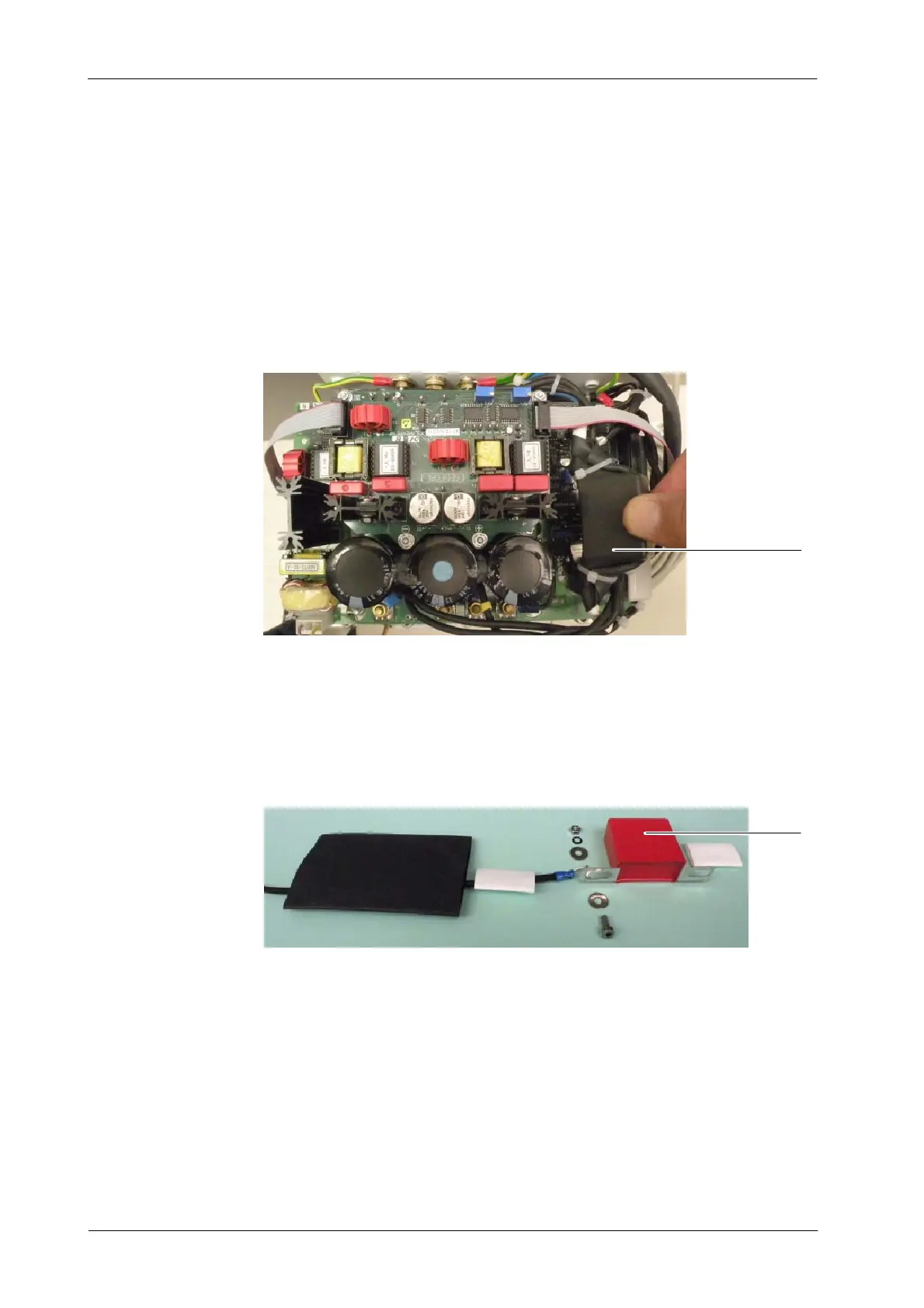

1. Access inside the Unit by removing Upper and Lower Covers and
unscrewing the Connectors Panel (refer to Section 5.3.1).
2. Cut the Tie Wraps at both sides of the Snubber and others if needed.
3. Cut the Heat Shrinks (large and small ones) and remove the screws, nuts
and washers from the Snubber.
Snubber
4. Pass the cable through the new large Heat Shrink and then through one
of the new small Heat Shrinks.
5. T ighten the screws, nuts and washers previously removed at both sides
of the new Snubber, cover both terminals with the small Heat Shrinks and
apply heat to reduce the Heat Shrinks.
Snubber
6. Cover the Snubber and its terminals with the large Heat Shrink, apply
heat to reduce the Heat Shrink and fasten it with two T ie Wraps at the
ends. Replace the other Tie Wraps previously removed.
7. Reconnect and assemble in reverse order.
