Portable X-ray Units
Service Manual
SM-1076R2
76

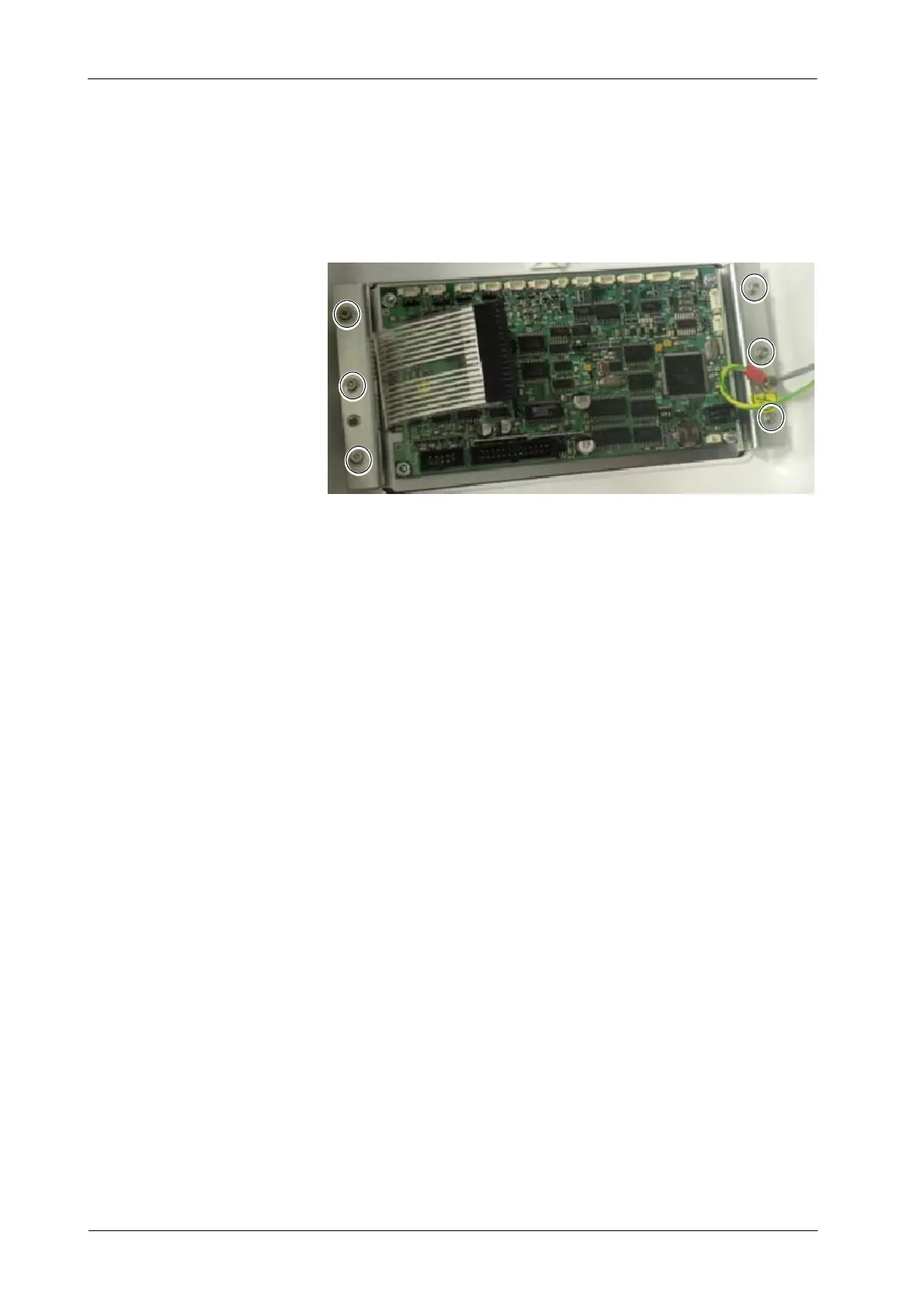

5. Unscrew the Hex screws at both sides of the Portable Control Board
support and remove it from the Cover.
6. Re-install the plate support to the new Cover with the Hex screws.
7. Secure the cables connected to Portable Control Board (A3175--03)
using a tie wrap with base in the inner part of the Upper Cover.
8. Replace the cover and assemble in reverse order.
