Seg WIC1 User Manual

Position Indication, Part 5: Current-Based and Two Contacts
Switchgear
wiProtGeneral_Y56
30
[Aux ON]
31
[Aux OFF]
10
Prot . Pos ON
&
11
Prot . Pos OFF
&
Prot .
I ON
IL1
IL2
IL3
Φ
max
If: »Prot . Meth.Detect.Bkr.Pos.« = “Current and Aux”
AND: »Prot . Aux ON« = “DI 1”
AND: »Prot . Aux OFF« = “DI 2”

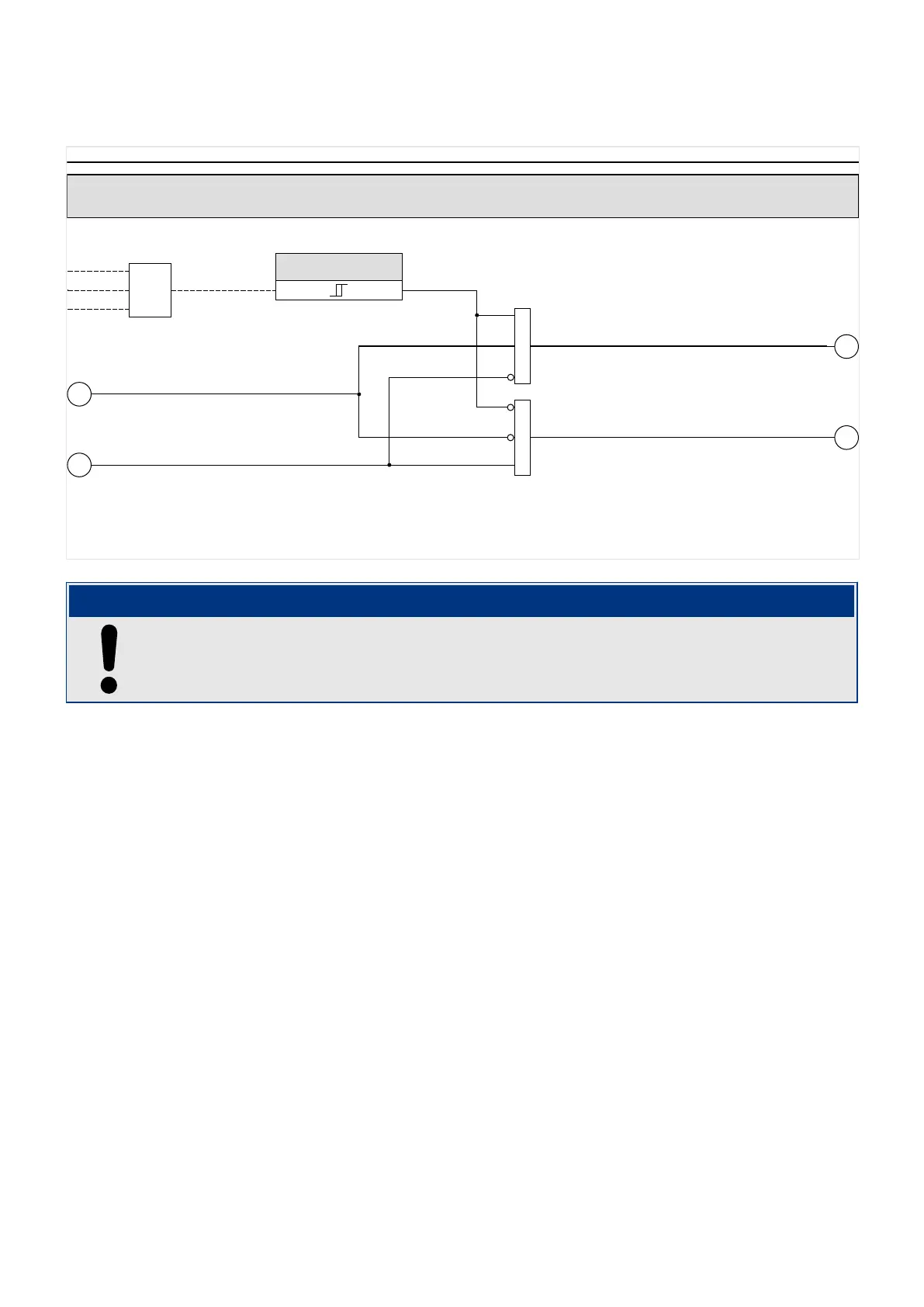

Fig. 51: “Close” / Aux ON (52a) and “Open” / Aux OFF position (52b) via two Digital Inputs and
current measurement.
NOTICE!
Note that the position indication methods
3, 4, 5 shown above can result in neither
signal (10) »Pos ON« nor signal (11) »Pos OFF« being active. This usually indicates an
intermediate or faulty switchgear position.
