Multi-core shielded cable or stranded wire should be used to connect control terminals. The terminal
which is closed to the converter must be connected to earth terminal PE. When wiring, the control cables
must be kept away from the main circuit and high-current circuit by at least 30cm. Instead of parallel
wiring, vertical wiring should be adopted to prevent the drive from malfunctions resulting from external
interference.
11
User Manual
4. Keyboard and Panel

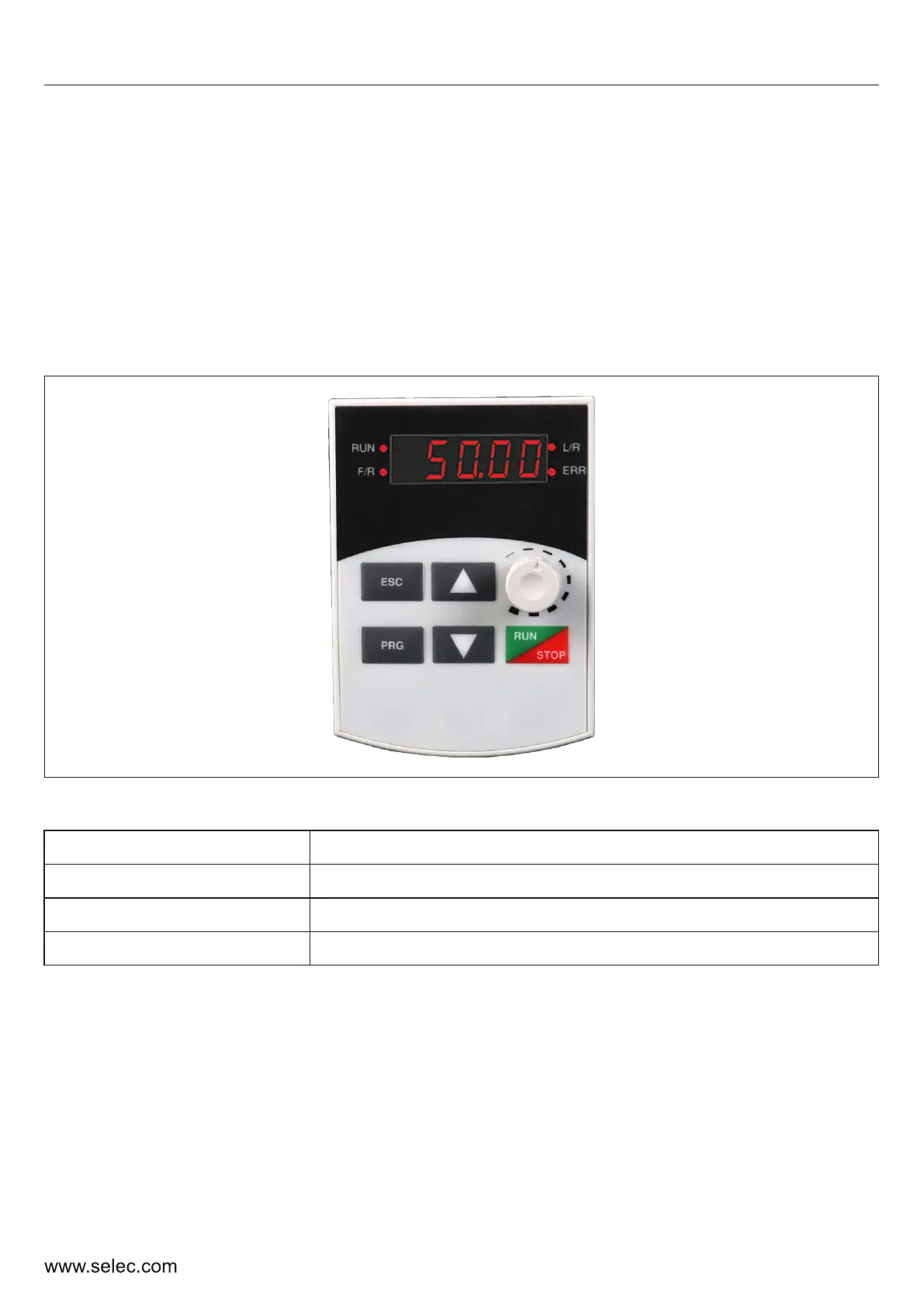

4.1 Illustration of Keypad
4.2 Units LEDs descriptions
LED
Function
V
Denotes that the value being shown is a voltage
A
Denotes that the value being shown is a current
Hz
Denotes that the value being shown is a frequency
