Selec VFD Series

57
User Manual
PC-14
Amplitude of
Frequency Arrival
Lower Limiting Frequency (P0-10)
– Upper Limiting Frequency
(P0-09)
Default:
0.0 Hz
This parameter indicates that the drive is approaching the set frequency value.
PC-15
Setting Count
1 – 9999
Default : 10
PC-16
Specific Count
1 – Setting Count (PC-15)
Default : 10

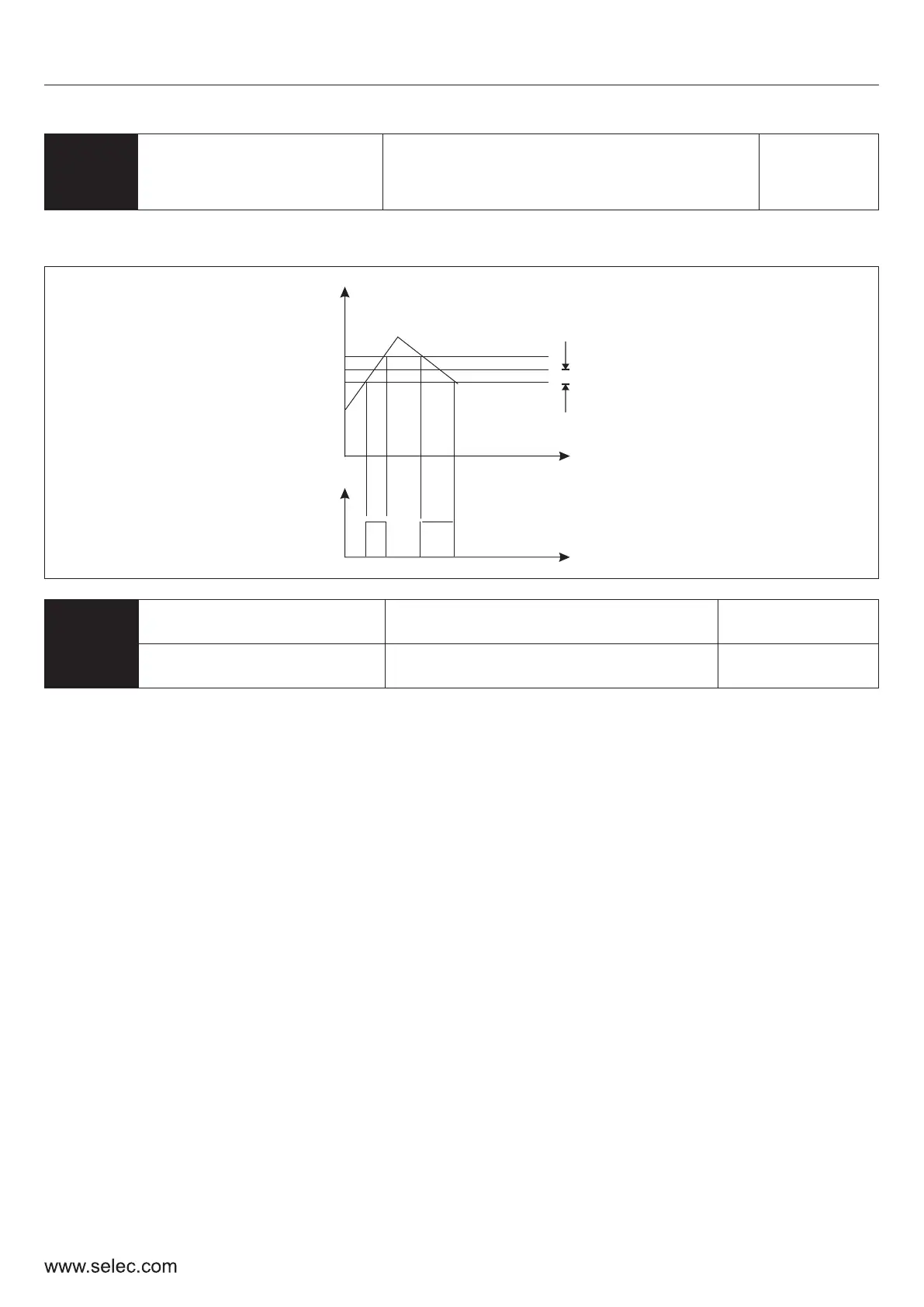

Output frequency
Setting frequency
Signal of frequency
Detected amplitude
Time
Time
ON
Counts of pulse or switching signal can be input by the counter through one of its multi-function DI
terminals. When the count value reaches up to the setting count value, the drive will signal this using
one of the DO terminals or output relays. When the count value reaches up to the specified count
value, the drive will give a similar signal using one of its DO or RO terminals. The counter will not
stop until it reaches up to the setting count value. Once reached though, the counter will stay there till
reset.
