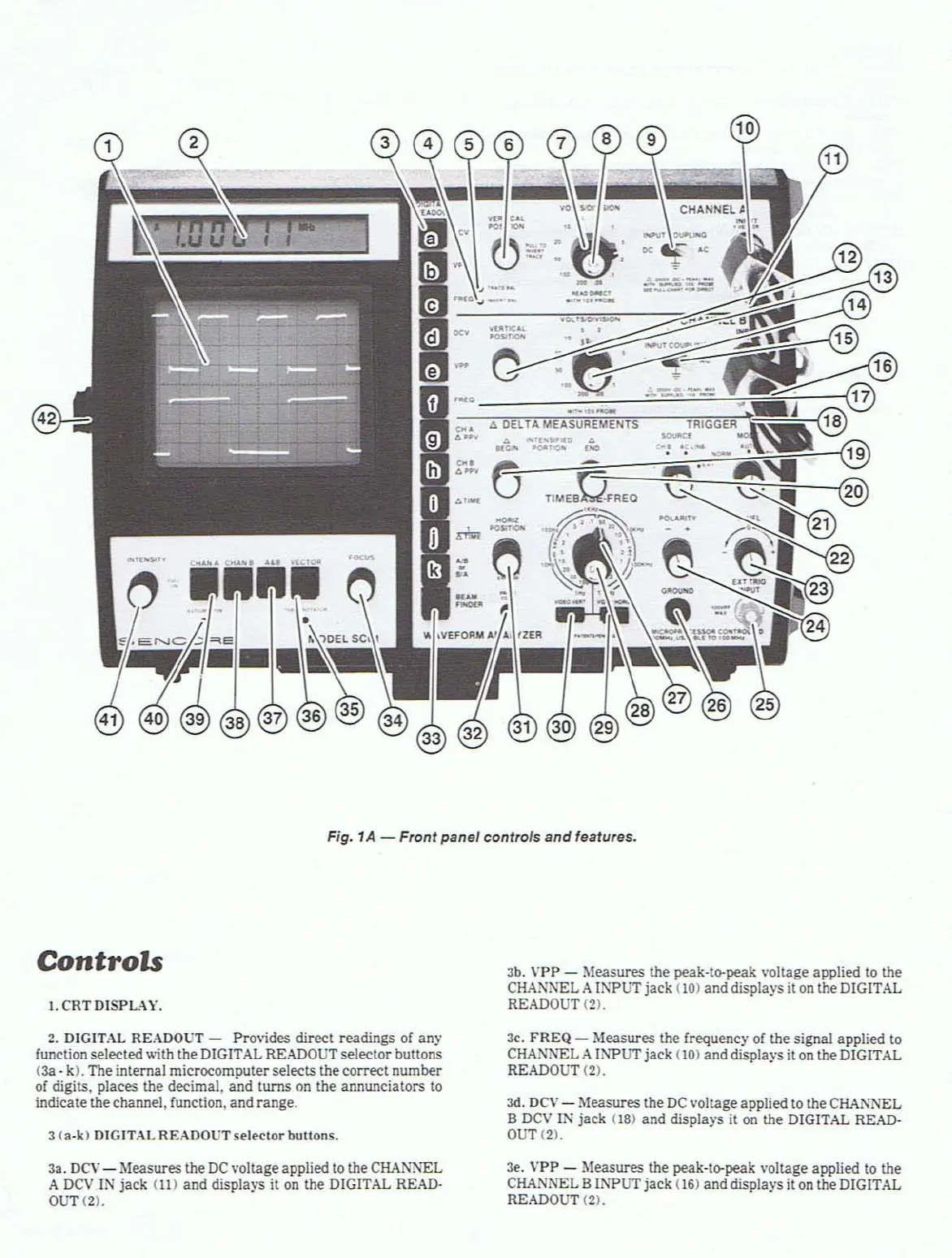

Fig.
1A
- Front panel controls andfeatures.
Controls
I.
CRT DISPL-\Y.
2.
DIGITAL READOUT - Provides direct readings of any
function selected with the
DIGITAL READOUT selector buttons
(Ja.
k). The internal microcomputerselects the correct number
of digits, places the decimal. and turns on the annunciators
to
indicate the channel, function, and range.
3(a-k)
DIGITAL READOUT selector buuons.
3a.
DCV
- Measures the
DC
voltageapplied to the CHAN!\'EL
A DCY IN jack
(11)
and displays it
on
the DIGITAL READ-
OUT (2).
3b.
"PP
- Measures the peak-to-peak voltage applied to the
CHANNEL A INPUT jack
(0)
and displays
it
on the DIGITAL
READOUT (2).
3c.
FREQ
- Measures the frequency
of
the signal applied to
CHANfI.'El A I!\'PUT jack
(10)
anddisplays it
on
the DIGITAL
READOUT
(2).
3d.
DC"
- Measures the
DC
voltage applied to the CHAJ'J!\'EL
B DCY IN jack
(8)
and displays
it
on
the DIGITAL READ-
OUT(2).
3e.
\,PP
- Measures the peak-to-peak voltage applied to the
CHANl\'El
B
rr-.:"'PUT
jack
(6)
and displays it on the DIGITAL
READOUT
(2).
