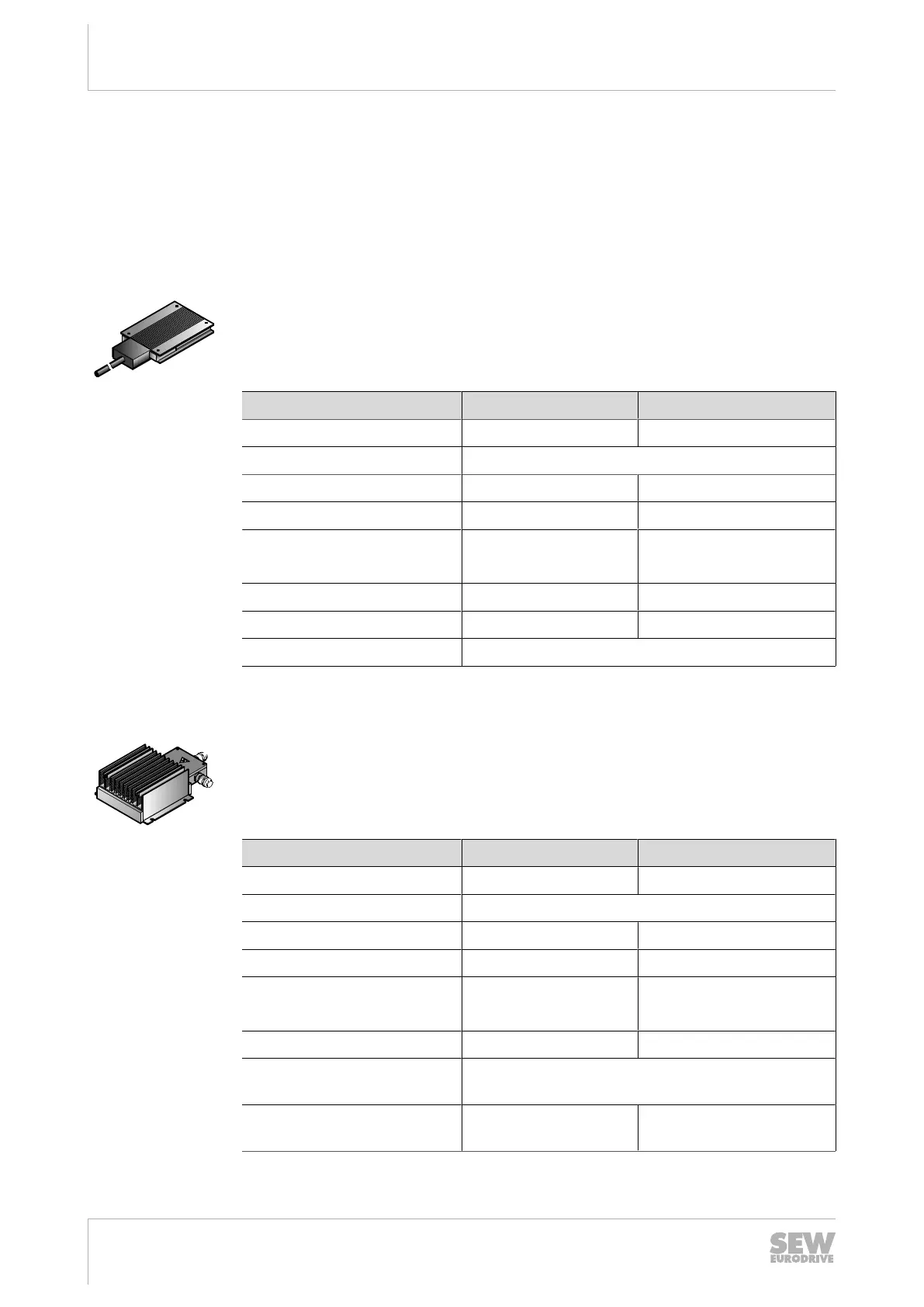

11.5.3 External braking resistor
Operation with external braking resistor is necessary for applications with a large
amount of regenerative energy.
The following table shows the external braking resistors.
BW...-.../K-1.5

Type BW100-005/K-1.5 BW150-003/K-1.5
Part number 08282862 08282927
Function Dissipating the regenerative energy
Degree of protection IP65 IP65
Resistance 100Ω 150Ω
Power rating
in S1, 100% cdf
200W 100W
Dimensions W × H × D 252 × 15× 80 mm 146 × 15× 80 mm
Cable length 1.5 m 1.5 m
Assigned grids BS-005 (part number: 0813152X)
BW...-...-T

Type BW150-006-T BW100-009-T
Part number 17969565 17969573
Function Dissipating the regenerative energy
Degree of protection IP66 IP66
Resistance 150Ω 100Ω
Power rating
in S1, 100% cdf
600 W 900 W
Dimensions W × H × D 285×75×174mm 435×75×174mm
Prescribed connection
cables
Shielded cables with a temperature resistance of
T
amb
≥90°C(194°F)
Maximum permitted cable
length
15m 15m
