AR-M550/M620/M700 DETAILS OF EACH SECTION 6 - 84
D. Maintenance and parts replacement
(1) Maintenance list
✕: Check (Clean, replace, or adjust as necessary.) ❍:Clean ▲: Replace ∆: Adjust ✩: Lubricate ❏: Shift position
(2) Maintenance and parts replacement
(List of Replacement Parts)
AR-M550U/N (PM: 250K)
When
calling
250K 500K 750K 1000K 1250K 1500K 1750K 2000K
Remark
AR-M620U/N, AR-M700U/N
(PM: 300k)
300K 600K 900K 1200K 1500K 1800K 2100K 2400K
Unit name No. Part name

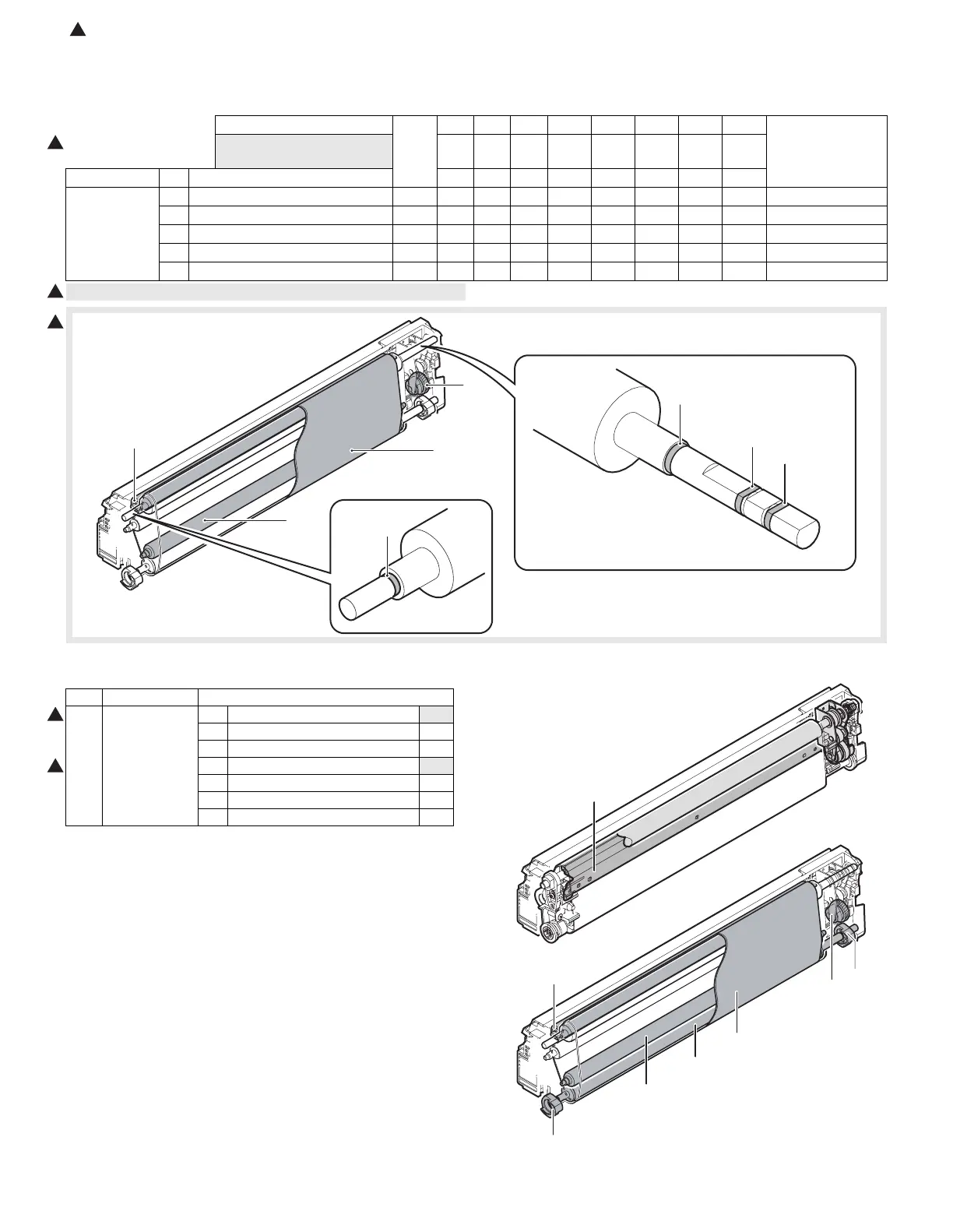

Transfer
section
1 Transfer belt ❍▲▲▲▲▲▲▲▲
2 Transfer roller ▲▲▲▲▲▲▲▲
3 Transfer drive gear ▲▲▲▲▲▲▲▲
4 Transfer cleaning roller ▲▲▲▲▲▲▲▲
5 Shaft (Conduction grease) ✕✩✩✩✩✩✩✩✩UKOG-0012QSZZ
∗ When cleaning the transfer belt, never use alcohol, solvent, and water.
1
1
1
1
2
5
5
5
3
4
5
No. Unit Parts
a Transfer unit 1 Transfer drive gear
▲
2 Transfer belt ❍▲
3 Transfer auxiliary roller
4 Transfer roller
▲
5 Transfer roller collar
6 Transfer cleaning roller ▲
7 Transfer cleaning brush
1
1
a-2
a-6
a-1
a-5
a-5
a-3
a-4
a-7
