10
Preparation

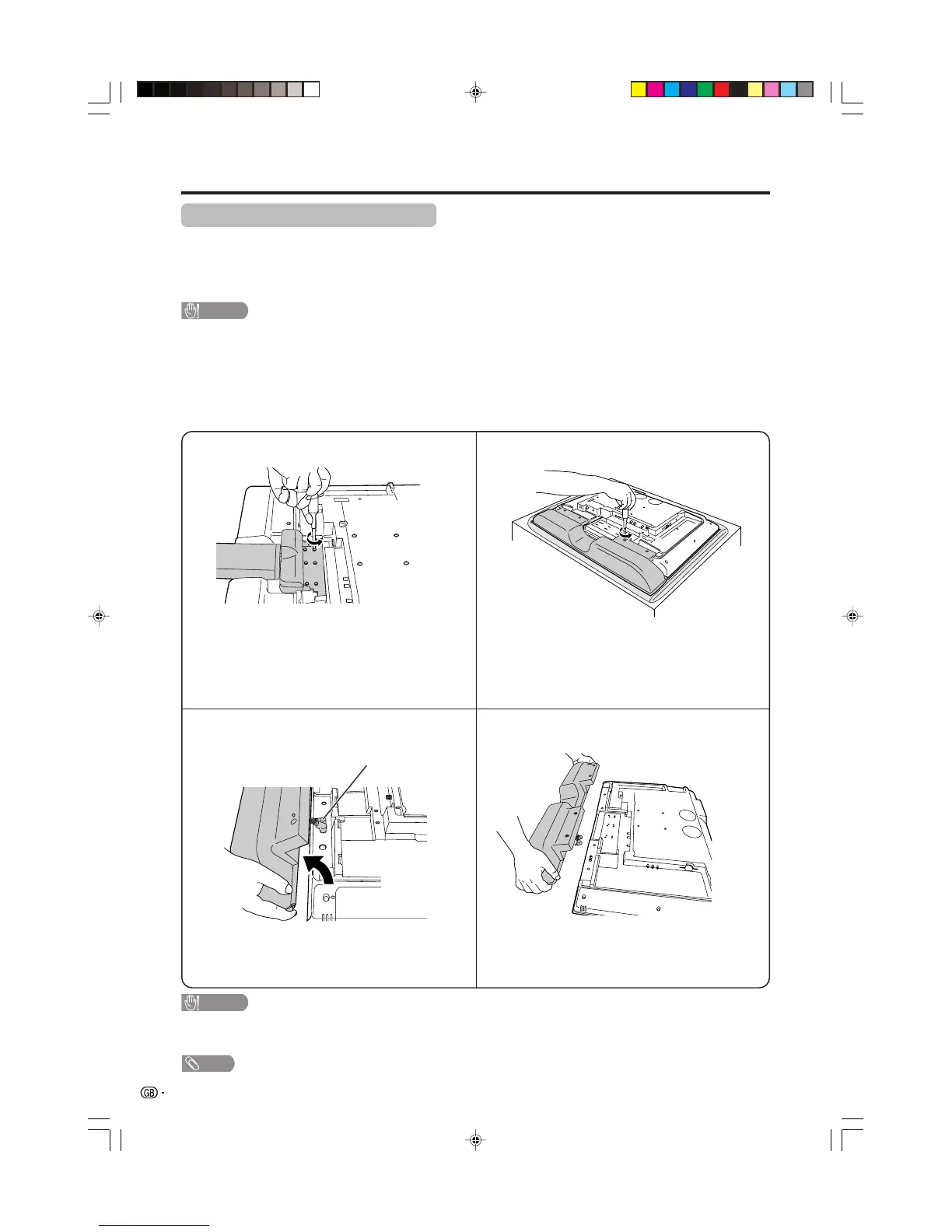

Removing the stand and speaker
This unit has detachable type speaker.
You can detach the system speaker when using external speaker.
Before removing (or attaching) speaker, unplug the AC cord from the AC outlet and the system cable from the
Display.
CAUTION
• Do not remove the stand and speaker from the Display unless using an optional bracket to mount it.
• When using the TV with the supplied stand attached, do not remove the speaker. Doing so may disturb
the balance leading to product damage or personal injury.
Before attaching/removing speaker
• Before performing work make sure to turn off the System.
• Before performing work spread cushioning over the base area to lay the Display on. This will prevent it from
being damaged.
CAUTION
• The speaker terminals on the Display are only for the attached speaker. Do not connect any third party plug or speaker
to the terminal.
• Insert the speaker plug completely into the terminal.
NOTE
• To attach the speaker and stand, perform the above steps in reverse order.
2
34
Unfasten the screws used to secure the speaker in
place.
Take hold of the speaker and slowly slide it
sideways.
(The speaker plugs are still inserted, so make
sure not to pull the speaker too far.)
Remove the speaker plugs from the terminal on the
Display.
(Do not remove the plug by pulling the cord.)
Now the speaker can be removing from the Display.
Speaker plug
1
Unfasten the screws used to secure the stand
in place, and then detach the stand from the
Display.
(Hold the stand so it will not drop the stand from
the edge of the base area.)
LC-30AD1E(E)-a 03.10.31, 1:15 PM10
