68

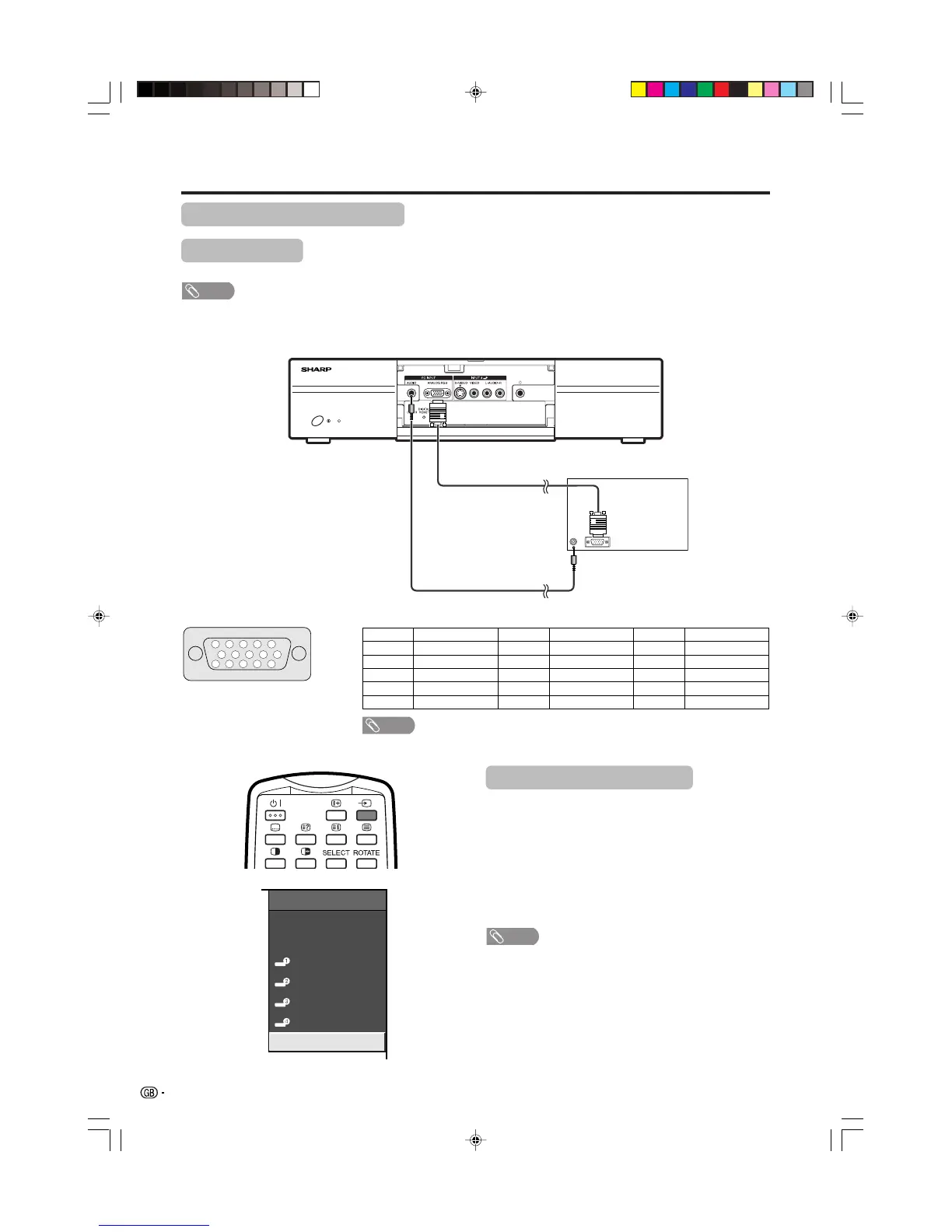

Using external equipment
RGB cable
(commercially available)
AVC System (front view)
ø 3.5 mm stereo minijack cable
(commercially available)
PC
15
14
13
12
9
11
10
8
7
6
5
4 3
2
1
Pin No. Signal name Pin No. Signal name Pin No. Signal name
1 R 6 GND (Ground) q Not connected
2 G 7 GND (Ground) w SDA
3 B 8 GND (Ground) e HD
4 Not connected 9 +5V r VD
5 CSYNC 0 GND (Ground) t SCL
Viewing an image from a PC
Connecting a PC
Use the PC terminals to connect a PC.
NOTE
• The PC input terminals are DDC1/2B-compatible.
• Refer to page 91 for a list of PC signals compatible with the System.
Signal names for 15-pin mini D-sub connecter
NOTE
• Macintosh adaptor may be required for use for some Macintosh computers.
Displaying an image from a PC
To view an image from a PC, select “PC” from the
“INPUT SOURCE” menu using b on the remote
control unit or INPUT on the Display.
When connecting to a PC, the correct input signal type
is automatically detected. (See page 78.) If the PC
image does not come in clearly, you may need to set
the Auto Sync. adjustment in the “Setup” menu. (See
page 72.)
NOTE
• Each time b is pressed, the input source toggles.
INPUT SOURCE
TV
DTV
INPUT1
INPUT2
INPUT3
INPUT4
PC
LC-30AD1E(E)-g 03.10.31, 1:25 PM68
