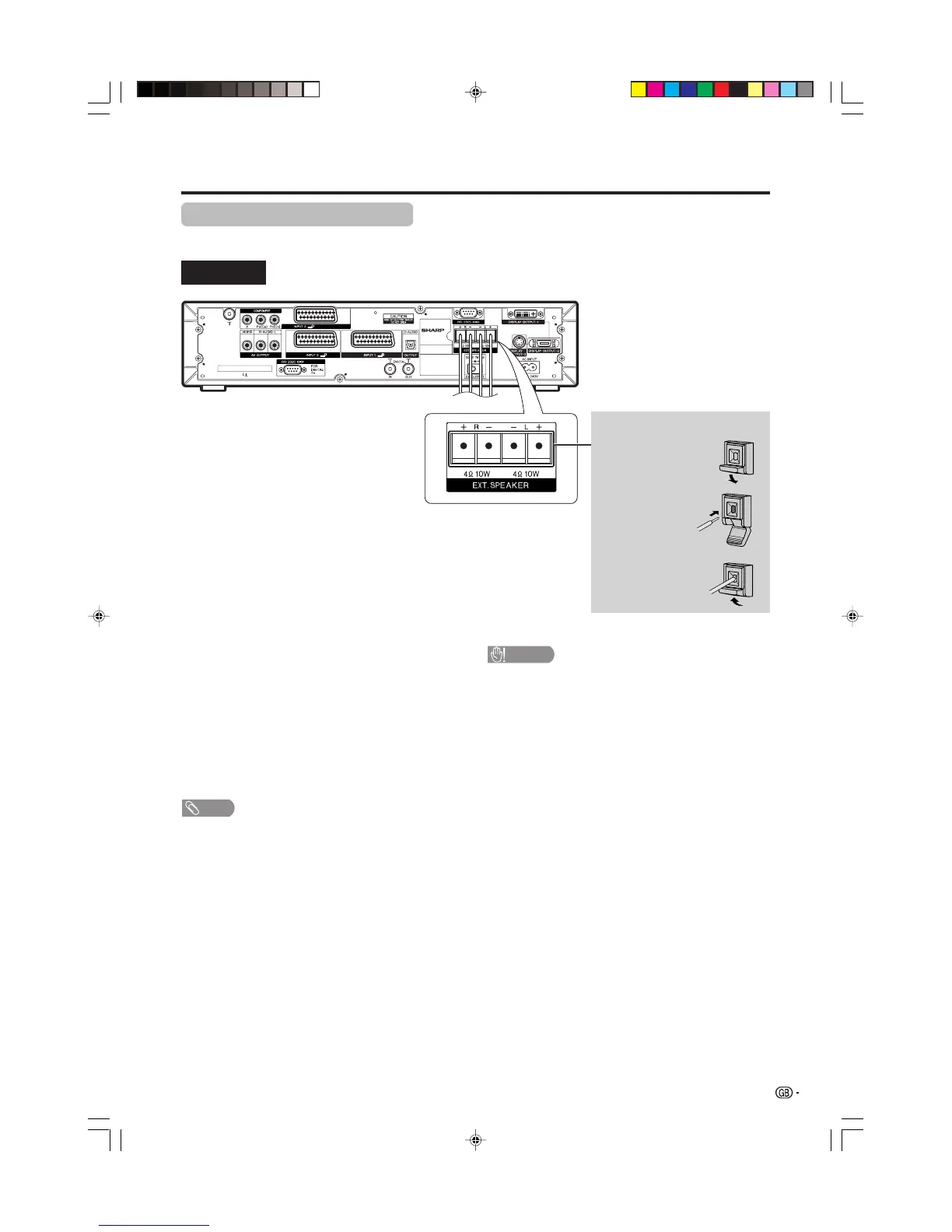

Rear view
Using external equipment
Connecting external speakers
When using external speakers
• Change the speaker setting to external speakers. (See
page 70.)
Make sure to connect the speaker terminal and cable
polarity (L, +) properly
• The speaker terminal has plus (L) and minus (+) polarity.
• Plus is red and minus is black.
• The cables are also divided into plus and minus.
• When connecting the left/right speakers, be sure to
connect the plus/minus terminals with the correct cables.
NOTE
• Unplug the AC cord from the AC outlet before installing
the speakers.
How to connect the
speaker cable
Push down the tab.
Insert the end of the
cable.
11
11
1
22
22
2
33
33
3
Lift the tab back
up.
• Make sure external speakers have 4 ohm and 10 watt
specifications.
• Connect the plus/minus terminals with the correct cables.
Incorrect connection may cause a short.
