18
INPUT 1
terminal
(SCART)
INPUT 3 terminals (Y, P
B(CB), PR(CR))
INPUT 2
terminal
(SCART)
DISPLAY OUTPUT3
terminal
DISPLAY OUTPUT1 terminal
AC INPUT terminal
CLEAR*POWER button
RS-232C terminal
INPUT 4 terminal (S-VIDEO)
PC INPUT terminal (AUDIO)
INPUT 4 terminals (AUDIO)
INPUT 3 terminal
(SCART)
AV OUTPUT terminal
(VIDEO)
AV OUTPUT
terminals
(AUDIO)
PC INPUT terminal
(ANALOG RGB)
* If the AVC System is switched on but it does not appear to be operating correctly, it may need resetting. In this
case, press CLEAR, shown in the diagram, lightly with the end of a ballpoint pen or other pointed object.
This will reset the System as shown below.
• AV MODE resets to USER.
• Analogue TV channel resets to channel 1.
• Dual screen resets to normal.
• Audio setting initialises.
• Dolby Virtual resets to Off.
• Image position is initialised.
• Input Label is initialised.
** The product may not function when receiving strong noise (e.g. excessive static electricity, power surge or
abnormal voltage due to lightning) or if operations are performed incorrectly. In such case, press DIGITAL
RESET and try operating again.
NOTE
• Pressing CLEAR will not work if the System is in standby mode (indicator lights red).
• Pressing CLEAR will not delete channel preset and PIN. See page 84 for resetting the PIN when you know it. See page
99 for initialising to the factory preset values when you forget your PIN.
ANTENNA INPUT terminal

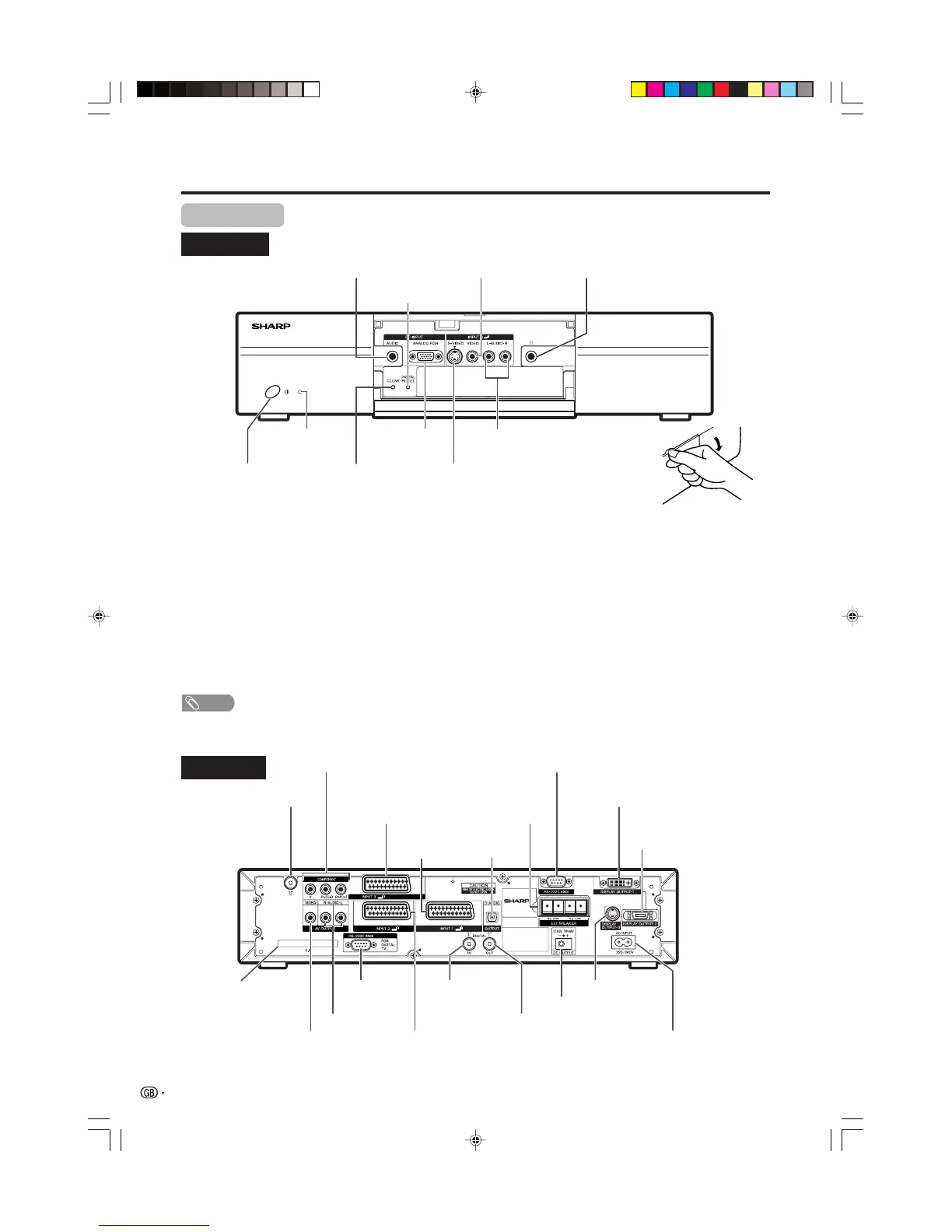

Part names
AVC System
STANDBY/ON
indicator
DISPLAY OUTPUT2
terminal
INPUT 4 terminal (VIDEO)
(How to open the door)
Front view
Rear view
Headphone
DC OUTPUT
terminal*
(When connecting headphones, the
sound from the speakers is muted.)
DIGITAL RESET**
DIGITAL-AUDIO
OUTPUT
terminal**
EXTERNAL SPEAKER
terminals
DIGITAL ANTENNA
INPUT terminal
DIGITAL
ANTENNA
OUTPUT terminal
RS-232C
terminal*
*Terminal for expanded functionality in the near future.
**Connect a digital audio equipment.
COMMON
INTERFACE slot
