Part names
• Theillustrationsandon-screendisplaysinthisoperationmanualareforexplanationpurposesandmayvaryslightlyfromthe
actual operations.
• TheillustrationsusedthroughoutthisoperationmanualarebasedonLC-46LX650H.

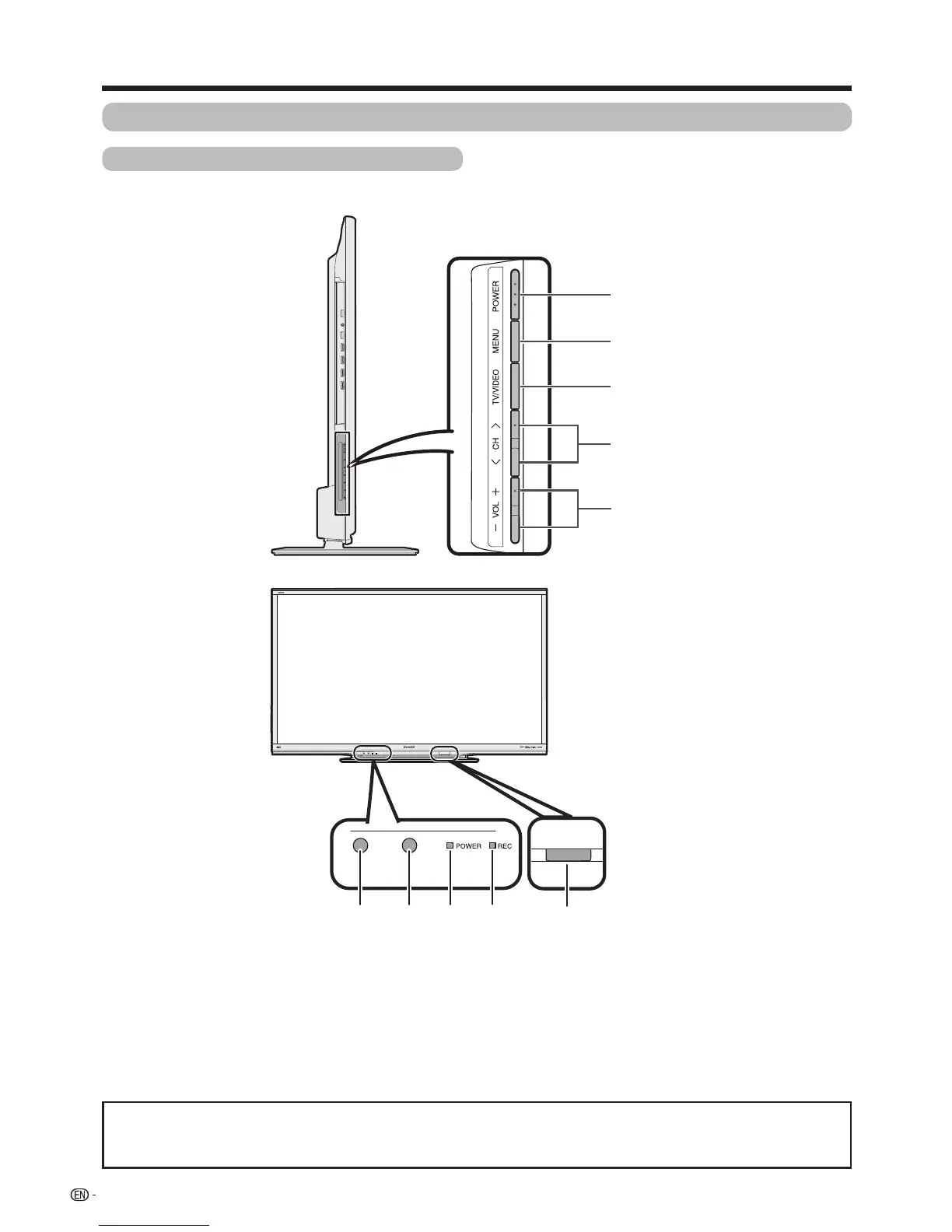

TV (Front / Side)
6
7
8
9
0
1
POWER(On/Off) button
2 MENU button
3 TV/VIDEO button
4 CH r/s(Channelup/down)buttons
5 VOL k/l(Volumeup/down)buttons
6Remotecontrolsensor
7 OPC sensor*
8
POWER indicator
9 REC indicator
0 Infraredemitter
* OPC: Optical Picture Control
(Seepage41fordetails.)
1
2
3
4
5
