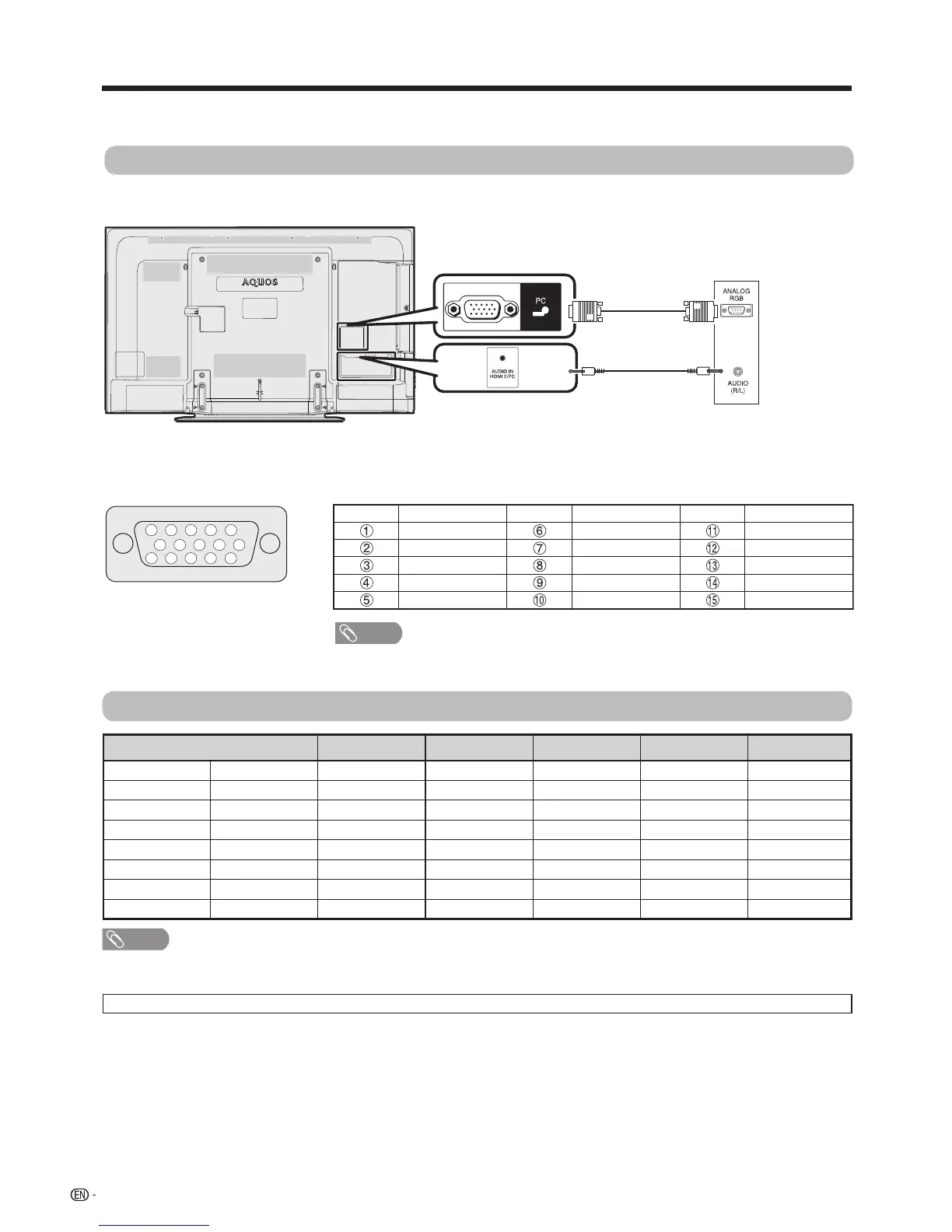

Connecting a PC
UsethePCterminalstoconnectaPC.
Signal names for 15-pin mini D-sub connector
NOTE
• MacintoshadaptormayberequiredforuseforsomeMacintoshcomputers.
• PinNo.
5
isnotusedforinputtingthesignal.
15
14
13
12
9
11
10
8
7
6
5
4 3
2
1
Pin No. Signal name Pin No. Signal name Pin No. Signal name
R GND(Ground) Notconnected
G GND(Ground) SDA
B GND(Ground) HD
Notconnected +5V VD
CSYNC GND(Ground) SCL
Analogue connection
PC
Ø3.5mmstereo
minijackcable
(Commercially
available)
RGBcable
(Commercially
available)
PC compatibility chart
VGA, SVGA, XGA, WXGA, SXGA, SXGA+ and UXGA are registered trademarks of International Business Machines Corporation.
Resolution Horizontal Frequency Vertical Frequency Analogue (D-Sub)
Digital (HDMI) VESA Standard
VGA 640
g
480 31.5kHz 60Hz
4 4 4
SVGA 800
g
600 37.9kHz 60Hz
4 4 4
XGA 1024
g
768 48.4kHz 60Hz
4 4 4
WXGA 1360
g
768 47.7kHz 60Hz
4 4 4
SXGA 1280
g
1024 64.0kHz 60Hz
4 4 4
SXGA+ 1400
g
1050 65.3kHz 60Hz
4 4 4
UXGA 1600
g
1200 75.0kHz 60Hz
4 4 4
1080p 1920
g
1080 67.5kHz 60Hz
4 4
—
NOTE
• ThisTVhasonlylimitedPCcompatibility,correctoperationcanonlybeguaranteedifthevideocardconformsexactlytotheVESA60Hz
standard.Anyvariationsfromthisstandardwillresultinpicturedistortions.
