(5.11) Audio Routing
You can use the Audio Routing page to control where your input, looper track and output audio signals
are sent. These settings are global settings (not per loop) so that you can quickly configure Sheeran Looper
X to work best for your gear and performance settings.
To show the Audio Routing page, tap the Audio Routing icon on the Navigation Menu page.
To show the page for the inputs, tracks, or outputs, tap Input Setup, Track Setup or Output Setup,
respectively.

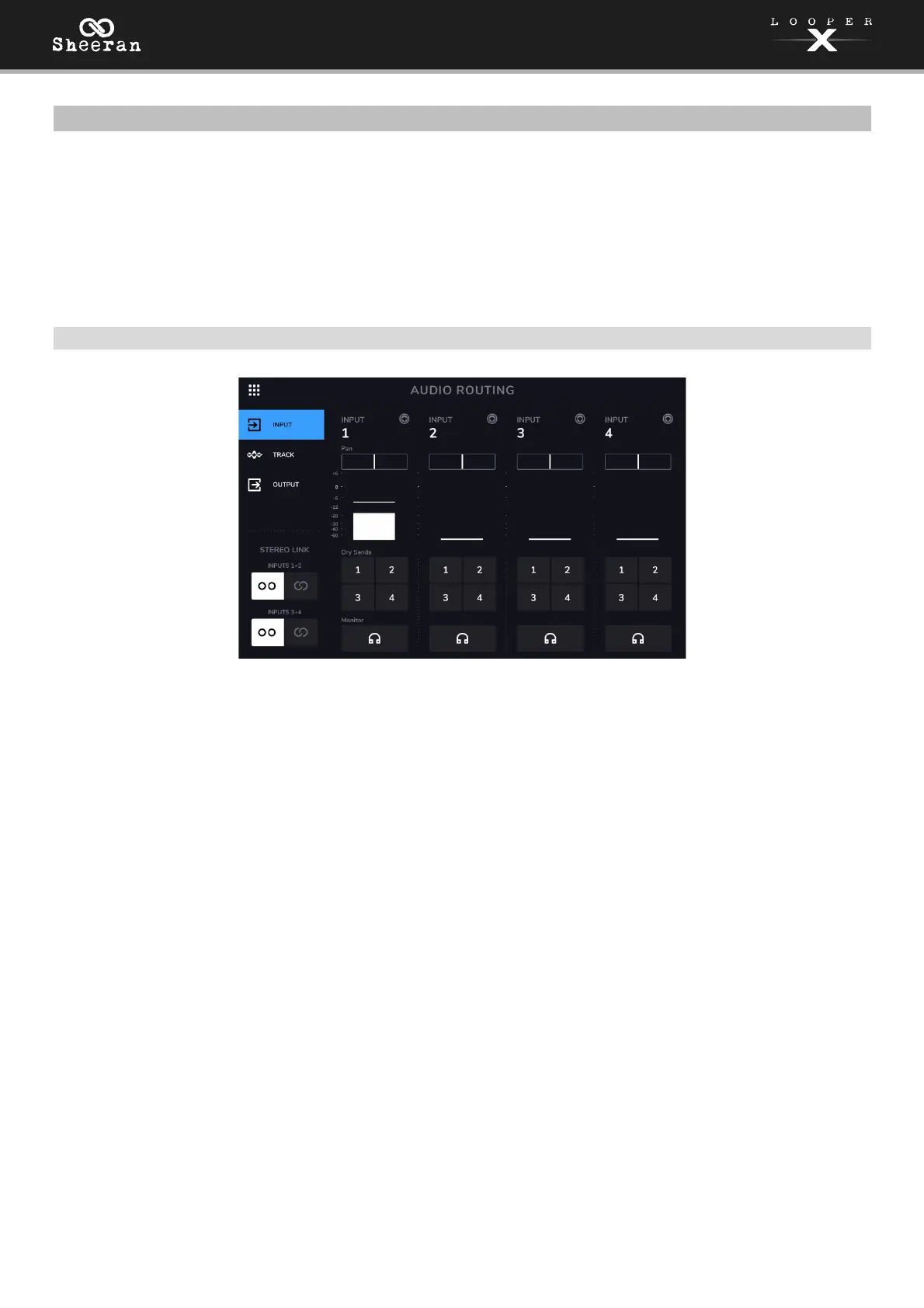

(5.11.1) Input
To adjust the level of an input signal, turn its Input Gain knob (1–4) on the top panel.
To adjust the panning of an input signal, tap its Pan slider and drag left or right. Tap and hold on the
slider to enlarge it to make more detailed adjustments.
To select an output to directly monitor the input signal, tap the desired Output 1–4 button under Dry
Sends, or the Headphones Icon button under Monitor. Audio signal from the input will be sent directly to
the selected output(s). Use the Main and Phones knobs to adjust the output volume level of the outputs
and phones, respectively.
To stereo link your inputs if you are using a stereo audio source (e.g., drum machine, keyboard, etc.),
tap the On button for Inputs 1+2 and/or Inputs 3+4 under Stereo Link on the right side of the touchscreen.
Tap the Off button to disable stereo link.
