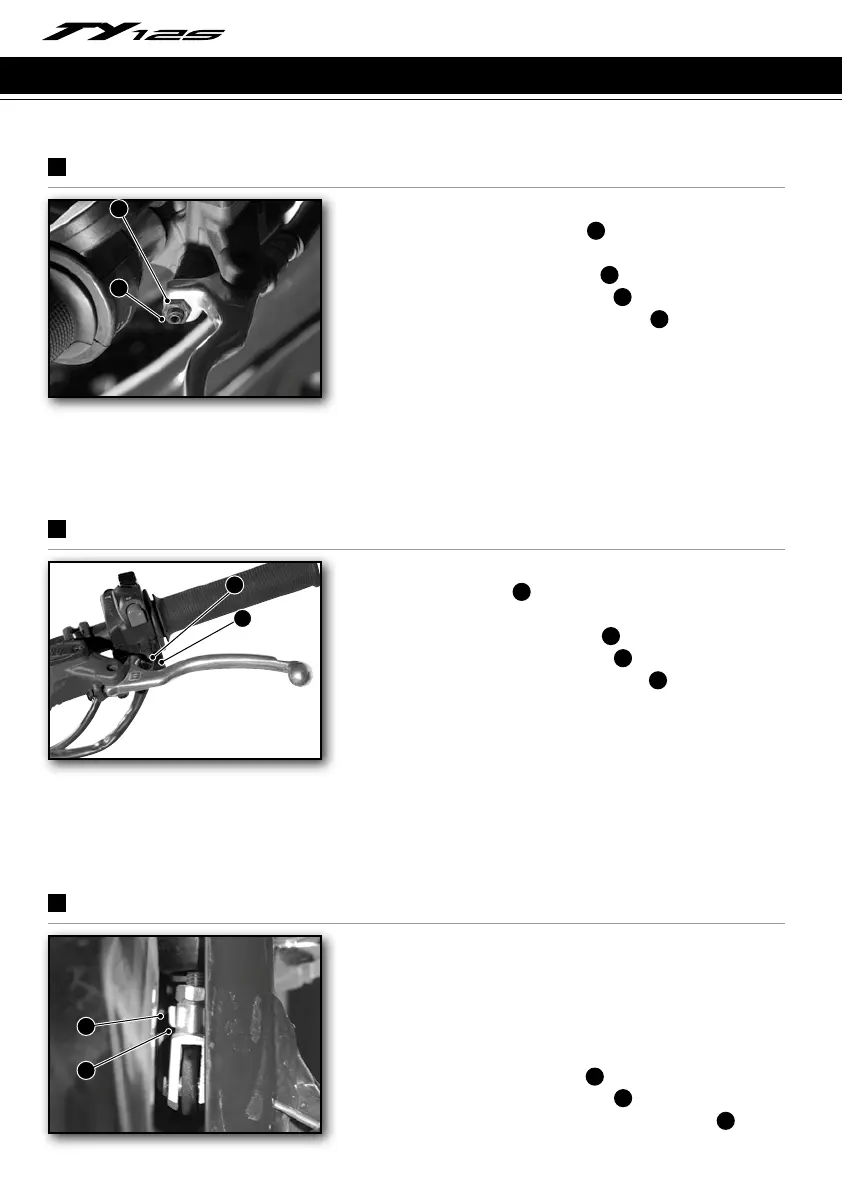

Adjusting the pressure of the front brake action
Adjusting the tension of the clutch cable
Adjusting the position of the rear brake pedal
The tension of the front brake lever is adjusted
using the threaded shaft .
- Loosen the locking nut .
- Screw the shaft in or out .
- Lock the position with the nut .
The tension of the clutch cable is adjusted using the
threaded shaft .
- Loosen the locking nut .
- Screw the shaft in or out .
- Lock the position with the nut .
The rear brake pedal is located in front of the right
footrest.
The position of the rear brake pedal is adjusted by
varying the position of the threaded shaft.
- Unscrew the locknut .
- Screw the shaft in or out .
- Lock the position by tightening the nut .
Maintenance processes
A
B
A
B
A
B
B
B
B
B
B
A
A
A
A
A
A
