INSTALLATION AND MAINTENANCE/INSPECTION
- SERVICE MANUAL - 18
4. Connect X-ray I/F cable which is included in CXDI-50G between Power Box and
XCONT 2002 PCB. (Refer to Fig.4-22 and “CXDI-50G Service Manual”.)
Wire Marking Terminal on XCONTPCB
A1 1B2
A2 1B22
B1 1B1
B2 1B11
(a) (b)

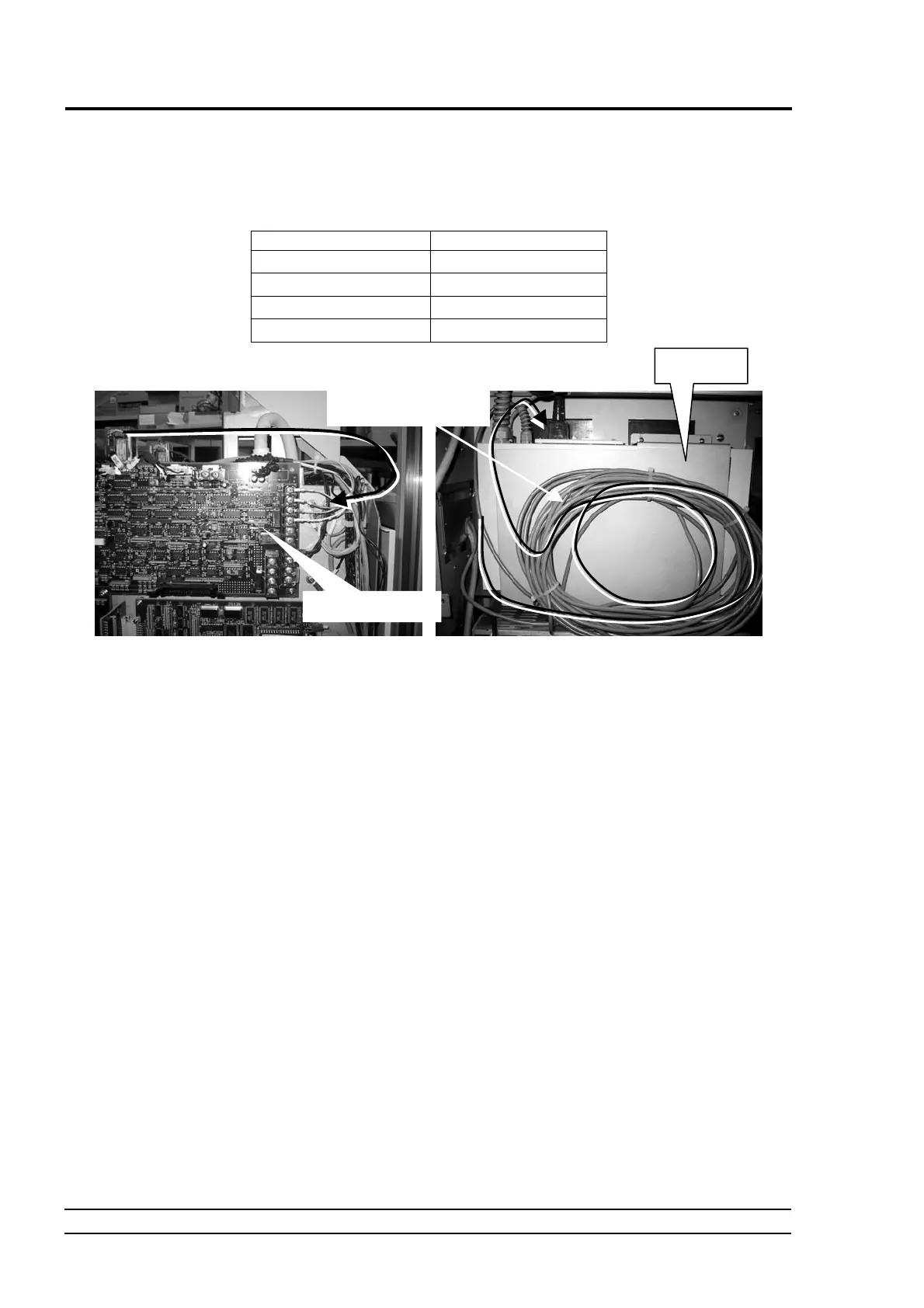

Fig.4-22 Wiring of X-ray I/F cable
Attach the cover of Power Box.
XCONT 2002 PCB
X-ray I/F cable
Power Box
