8) Take out a flat washer to check burrs and other problem, then place the flat
washer into shaft, as shown in the figure below.

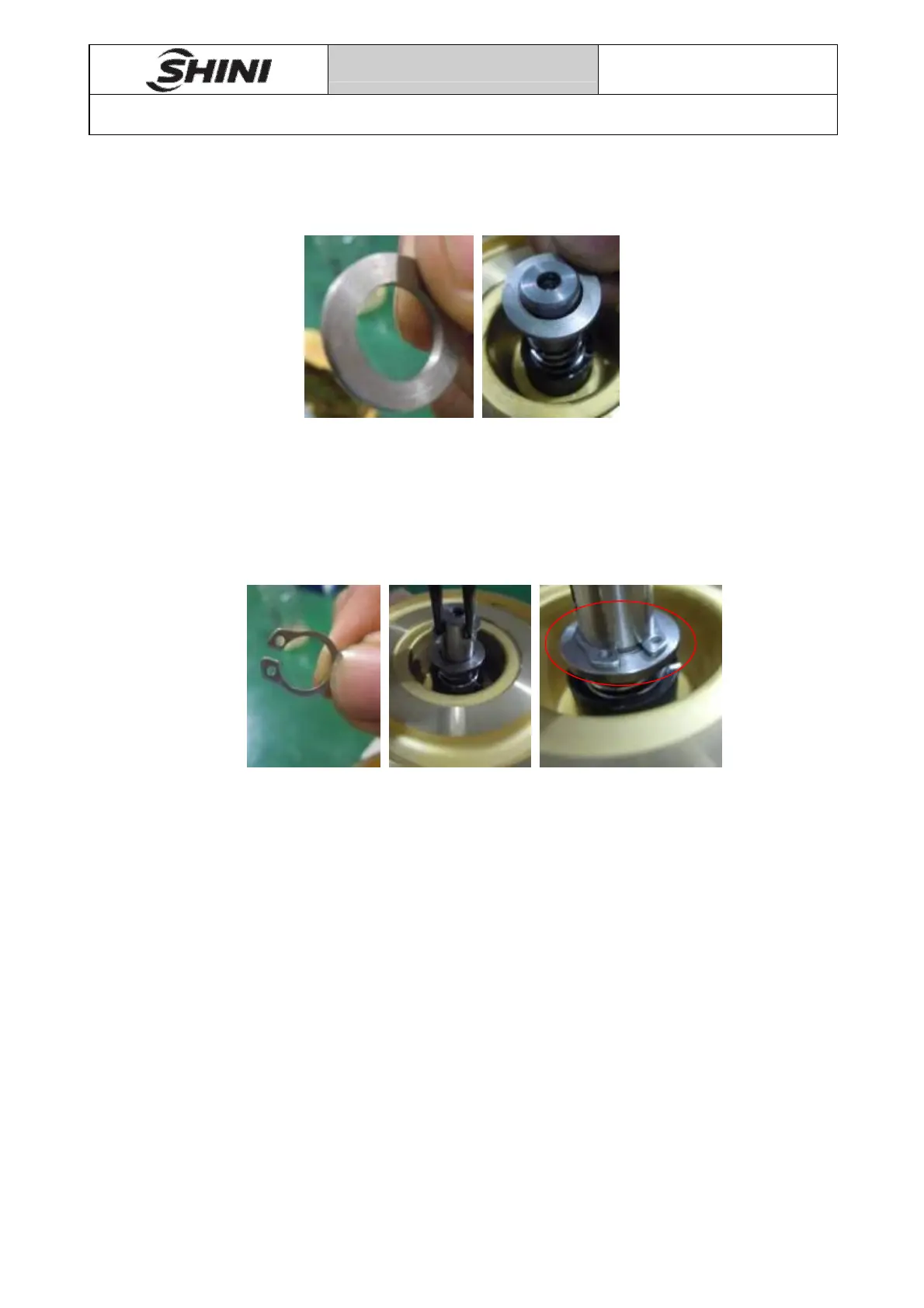

Pic 20-8
9) Take out a A type shaft circlip, check for burrs and other problem; then use shaft
circlip pliers to mount it on motor circlip groove, and check A type shaft circlip is
fully engaged into motor circlip groove, as shown in the figure below.
Pic 20-9
