Table 5: CLV61x Dual Port (PROFINET): scope of delivery, other components
Component Notes
SOPAS ET configuration software and
device description file (*.sdd file for
SOPAS ET) for the CLV61x Dual Port
(PROFINET)
Available online at:
www.sick.com/SOPAS_ET
GSD file for the PROFINET system con‐
troller (PLC)
Available online at:
www.sick.com/CLV61x_Dual_Port
Function block, e.g., for system controller
S7 (PLC)
When is it needed?
Available online at:
www.sick.com/CLV61x_Dual_Port
CLV61x Dual Port (PROFINET) operating
instructions as PDF in English, German
and French. Other languages also avail‐
able online where applicable.
Provides information about mounting, electrical
installation and technical data for the device.
Available online at:
www.sick.com/CLV61x_Dual_Port
CLV61x Dual Port (PROFINET) supplemen‐
tary information as PDF in English and
German.
Provides additional description of the procedure for
integrating the device into PROFINET from a data
technology standpoint (line or ring topology).
Available online at:
www.sick.com/CLV61x_Dual_Port
3.2.3 Operating principle
The device consists of a laser scanner (laser diode and optics) with fixed focus and an
electronics unit with integrated decoder, as well as a PROFINET module. The laser scan‐
ner and electronic unit are encased in a compact metal housing.
The light is emitted through the reading window in the industrial housing, and the
reflected light from the bar code then returns through this window.
The use of various focusing settings, resolutions, scan processes, possibly integrated
heating, mounting options and optics enables use in most industrial applications.

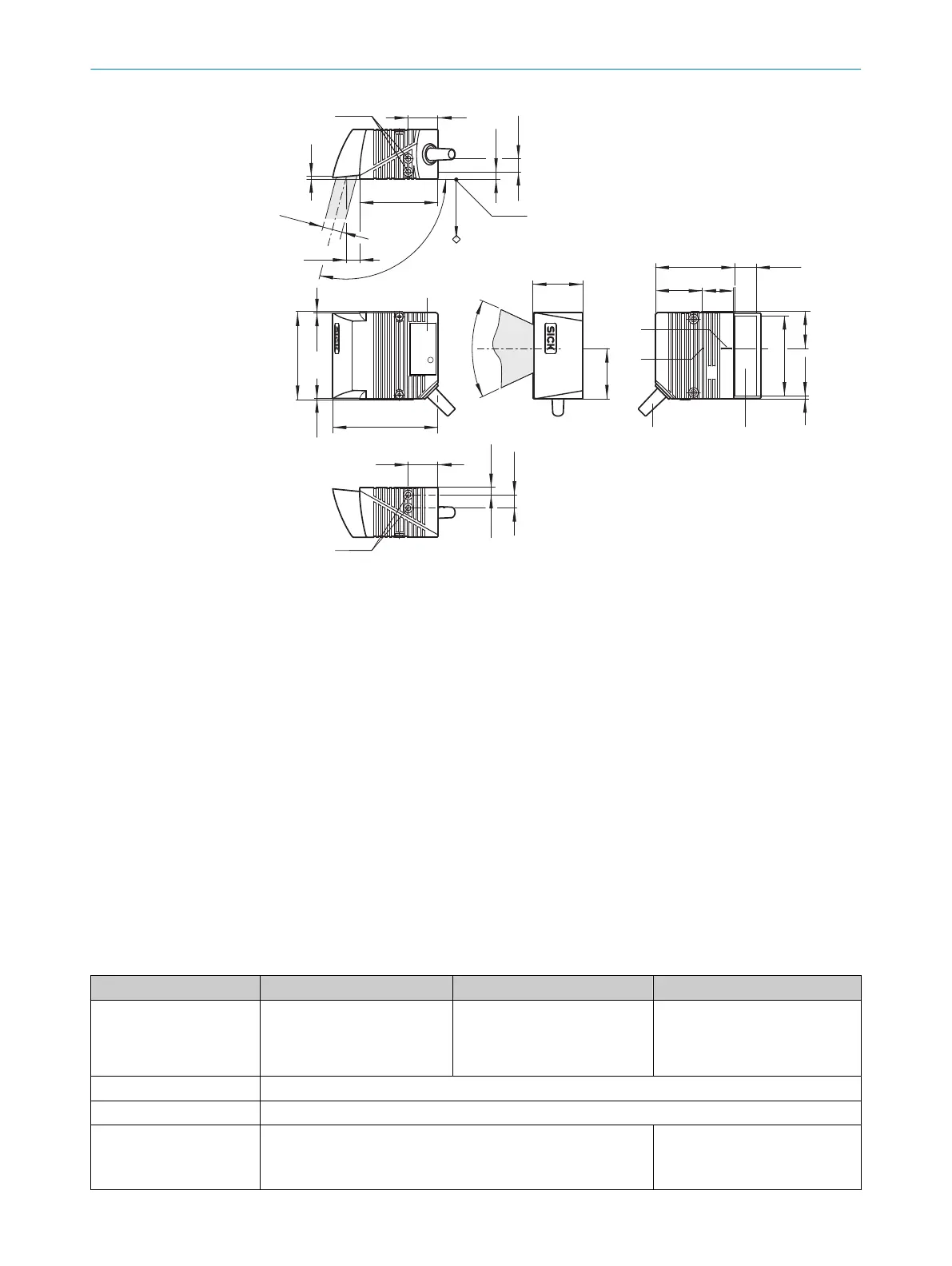

Because of the integrated D-sub shell, when the reading window is on the side the laser
beam is emitted at angle of 105° relative to the longitudinal axis of the device. The
device has three M12 round connectors available for continuous electrical connection.
Interfaces to external timers, such as photoelectric sensors or incremental encoders,
enable reading pulses independent of the control. The reading results are provided for
further processing by the data interfaces. In principle, the codes can be identified on
any one side of stationary or moving objects in a conveyor system (single-side reading).
By combining several devices, multiple sides can be recorded in one passage (multi-
side reading). The device produces a scanning line (line scanner) in order to identify the
code. In the grid scanner version, the device produces eight scanning lines that are off‐
set parallel to one another.
