CLV61x-Dx41x
Dual Port
PLC 2 / HOST
CLV61x-Dx41x
Dual Port
CLV61x-Dx41x
Dual Port
CLV62x ...
CLV65x
Cable 3, optional
IO Controller
(MRP manager)
PROFINET
Cable 5 Cable 4 Cable 4 Cable 4
1
PROFINET

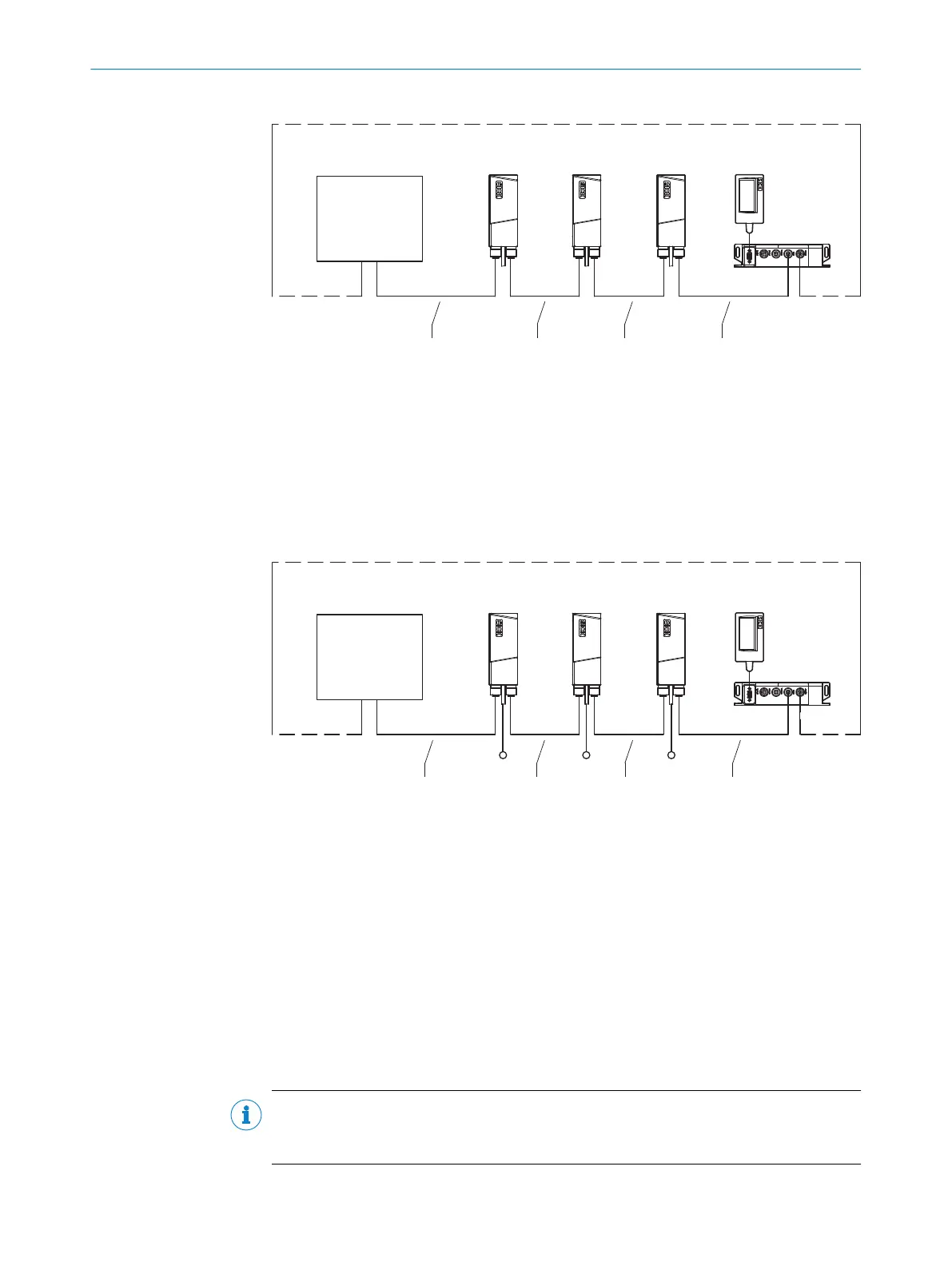

Figure 23: Example of a PROFINET network design with a line or ring topology (CLV61x-Dx41x)
1
IO controller
2
PLC
3
Adapter cable (male connector, RJ45, 8-pin / male connector, M12, 4-pin, D-coded),
optional
4
Cable 1:1 (male connector, M12, 4-pin, D-coded / male connector, M12, 4-pin, D-coded)
5
Adapter cable (male connector, RJ45, 8-pin / male connector, M12, 4-pin, D-coded)
Cable 6 Cable 4 Cable 4 Cable 4
1
CLV61x-Dx52x
Dual Port
PLC 2 / HOST
CLV61x-Dx52x
Dual Port
CLV61x-Dx52x
Dual Port
CLV62x ...
CLV65x
IO Controller
(MRP manager)
PROFINET
Trigger 5Trigger 5Trigger 5
Cable 3, optional
PROFINET
Figure 24: Example of a PROFINET network design with a line or ring topology (CLV61x-Dx52x)
1
IO controller
2
PLC
3
Adapter cable (male connector, RJ45, 8-pin / male connector, M12, 4-pin, D-coded),
optional
4
Cable 1:1 (male connector, M12, 4-pin, D-coded / male connector, M12, 4-pin, D-coded)
5
Reading cycle trigger (local)
6
Adapter cable (male connector, RJ45, 8-pin / male connector, M12, 4-pin, D-coded)
When ring topology is used, a device, such as a switch or the PROFINET controller, must
take over the function of the ring manager (MRP-Manager). The other devices must be
able to work as an MRP-Client. The device can be used as an MRP-Client, but not as an
MRP-Manager.
NOTE
The USB interface available depending on the type is only for temporary connection to a
PC for local configuration or device diagnostics.
