SICK CLV61 Series User Manual

7
Slave
8
Branch line
9
Connecting cable permanently connected with the device (male connector, D-Sub-HD, 15-pin)
ß
Device number (GN)
à
Maximum 32 users
á
Example of alternative connection module
Alternative connection modules for CLV61x: CDB620 or CDM420-0001
NOTE
Activate the CAN data interface in the device with a configuration tool, e.g., the configu‐
ration software SOPAS ET.
Make further settings in the device corresponding to the function of the device in the
system configuration.
14.7.6 Wiring digital inputs of the device in the CDM420-0006
Device = CLV61x-xx0xxx (serial variant)
Device 4
CDM420-0006
PNP sensor 7
V
S
V
S
V
S
GND
SensGND
3.32 K
6.64 K
Sensor D
V
in
C
15
1
5
Out
+24V*
GND
S6
ON
OFF
S6 : SGND-GND
Shield
GND
.
.
.
A
Sensor B
37
SGND
6
Shield
39
+24 V*
GND
SensGND
Trigger sensor 1
8
E.g. photo-electric
switch 6
3
5
110
15
6
11
5
Cable 2

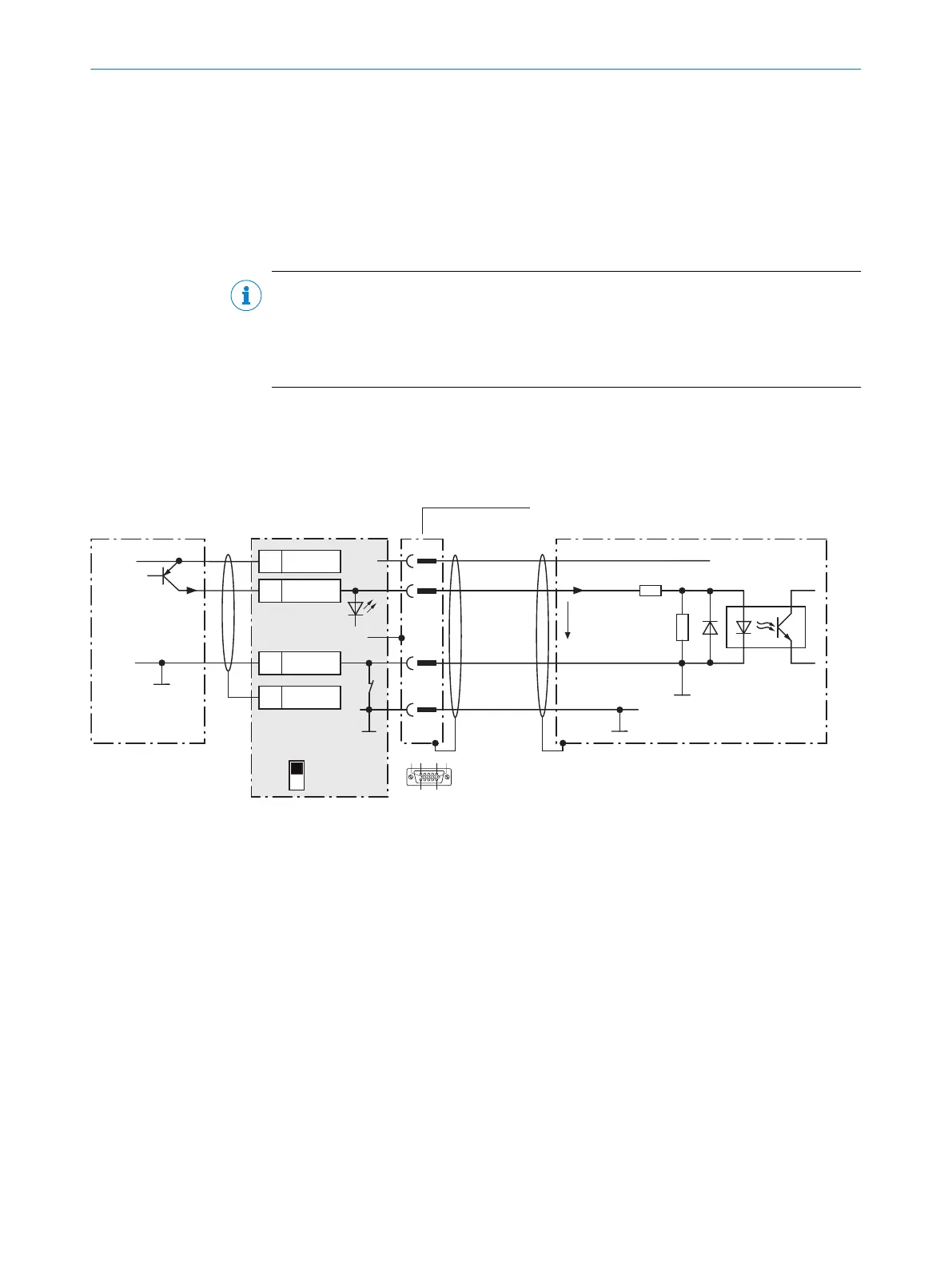

Figure 67: Trigger sensor supplied with power by connection module CDM420-0006
1
Trigger sensor, e.g. for read cycle generation
2
Connecting cable permanently connected with the device (male connector, D-Sub-HD, 15-pin)
3
Input voltage V
in
4
Device
5
Connection module: female connector, D-Sub-HD, 15-pin
6
E.g. photoelectric sensor
7
PNP sensor
8
Supply voltage V
S
ANNEX 14
8017840/19OF/2021-10-28 | SICK O P E R A T I N G I N S T R U C T I O N S | CLV61x
105
Subject to change without notice
