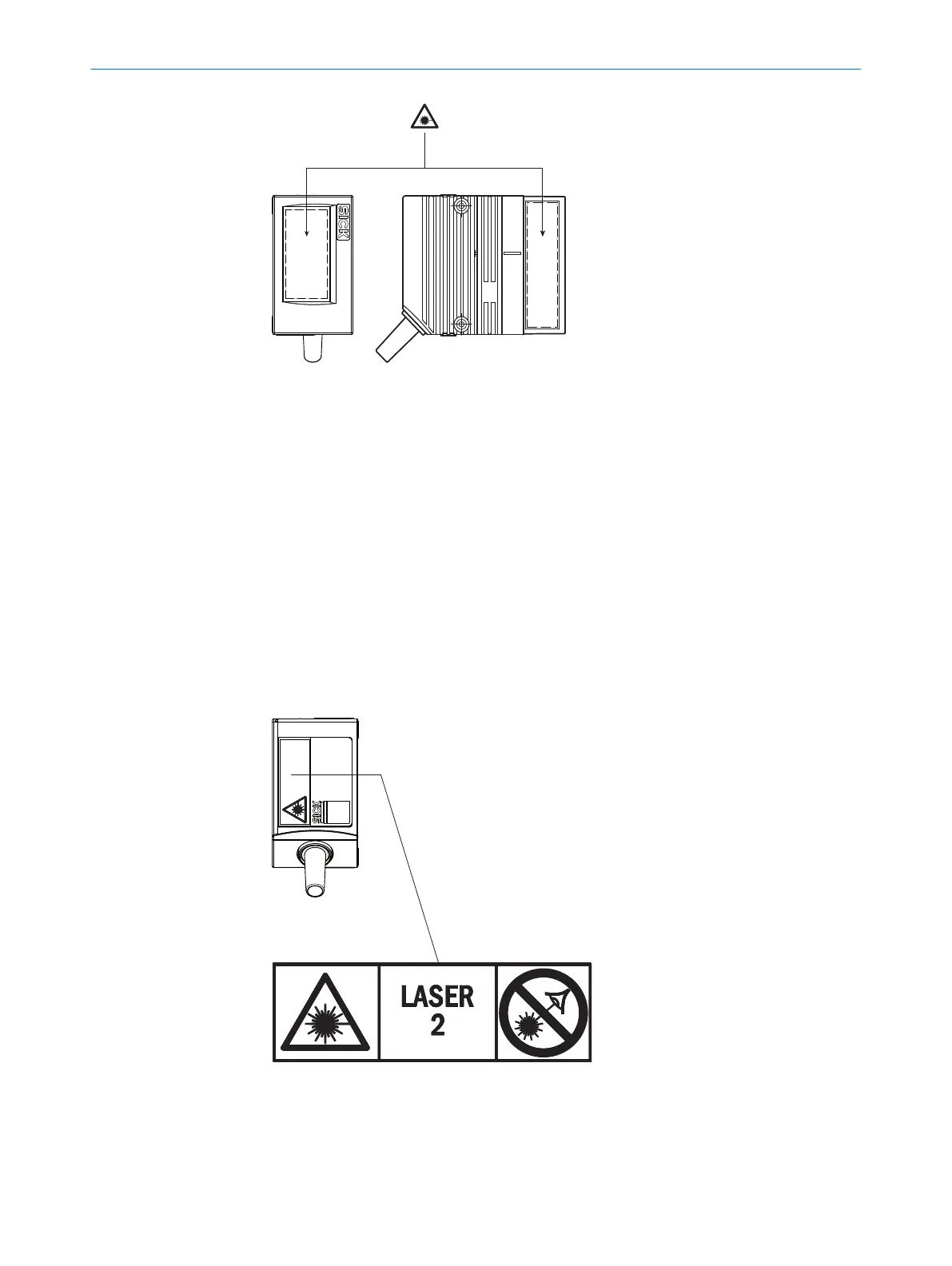

Figure 1: Laser output aperture for the two designs of the device
Warning symbol on the device
The colored laser warning label is affixed to the rear of the device combined with the
type label.
Laser output data
In addition to other information, the type label of the device in use also contains the
laser output data.
The laser power data consists of:
•
Laser output power (maximum and average)
•
Wavelength or wavelength range
•
Pulse duration
The laser power data is located in the lower part of the type label, as an example see
"Type label", page 14.
If the device is installed inaccessibly, see "Features", page 61 in the technical data.
Figure 2: Position and contents of the laser warning label on the device
Meaning of the laser warning label: Laser radiation. Do not look into the light beam.
Laser class 2.
2
SAFETY INFORMATION
12
O P E R A T I N G I N S T R U C T I O N S | CLV61x 8017840/19OF/2021-10-28 | SICK
Subject to change without notice
