22.5
5.7
10
79.9
22.5
5.7
10
2
14.9
10
105°
27.4
60.5
2.7
16.4
60.4
23.8
35.6
59.4
0.2
0.2
65.9
50°
38.5
37.9
1
1
54
3
2
7
O
Ö
Ö
Ready
G Read
N Read
HW Err
UserDef1
O
Ö
6

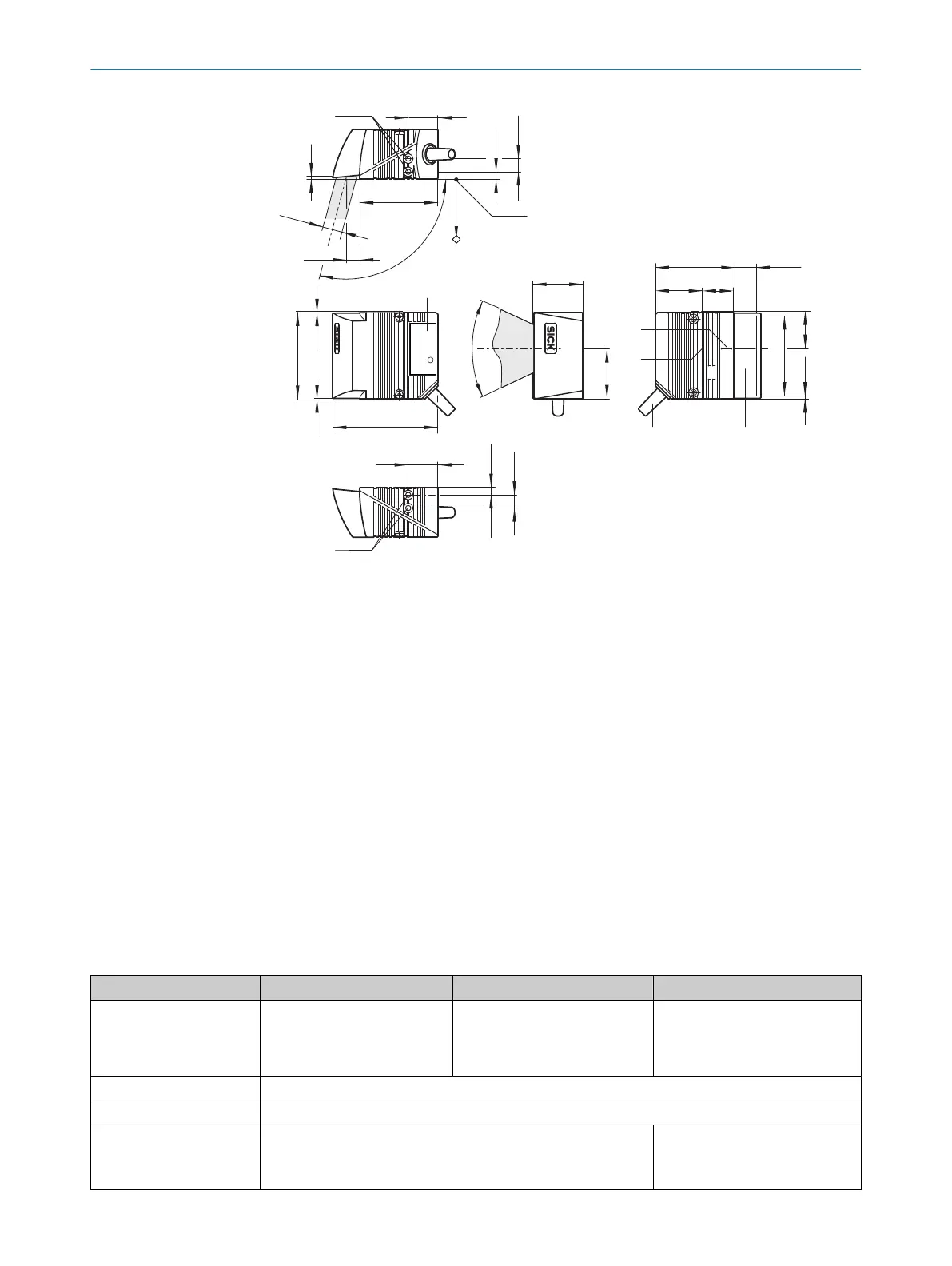

Figure 5: CLV61x with side viewing window: Structure and device dimensions, unit of measure‐
ment: mm (inch), decimal separator: Period
1
Tapped blind hole M5, 5 mm deep (2 x), for mounting the device
2
Internal impact point: Rotation point of the variable direction laser beam
3
Central position of the deflected laser beam in the V-shaped aperture angle
4
Cable outlet, standard cable 0.9 m (+10 %) with male connector, D-Sub-HD, 15-pin
5
Viewing window, side orientation
6
RGB LED (1 x), status display with signal color assignment for events
7
Reference point of the reading distance (from housing edge to object)
3.2.2 Device variants
The CLV61x product family offers four possible interface applications:
•
CLV61x CAN
•
CLV61x FIELDBUS (in combination with the CDF600 fieldbus module)
•
CLV61x Dual Port
•
CLV61x IO-Link (see CLV61x IO-Link operating instructions)
The interface applications differ, amongst other things, in regard to the following features:
Table 5: Differences between the interface applications
Feature CLV61x CAN CLV61x FIELDBUS CLV61x Dual Port (PROFINET)
Connection type Data output to host via
RS-232
Connection to fieldbus via
optional CDF600-2 fieldbus
module
(dual port switch)
Direct integration in line or ring
topology
Scanning methods Line scanning or raster scanning, depending on type
Sensor type Line scanner or raster scanner, depending on type
Reading ranges (working
range)
•
Short Range (CLV612)
•
Mid Range (CLV610)
•
Long Range (CLV615)
•
Long Range (CLV615 and
CLV618)
3 PRODUCT DESCRIPTION
18
O P E R A T I N G I N S T R U C T I O N S | CLV61x 8017840/19OF/2021-10-28 | SICK
Subject to change without notice
