SICK CLV61 Series User Manual

1
2
4
3
1
2
4
3
90
90

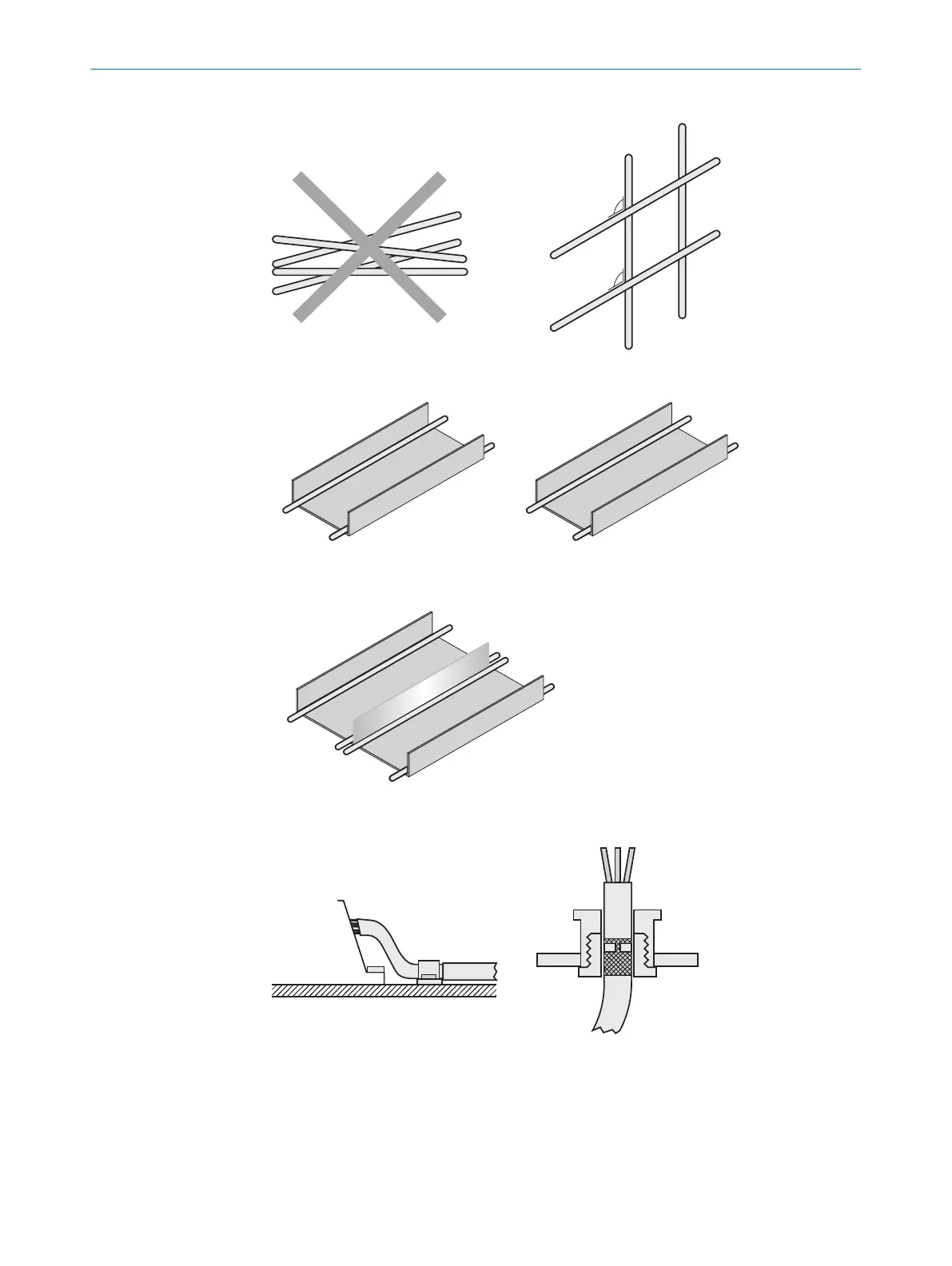

Figure 19: Cross cables at right angles
1
2
3
4
Figure 20: Ideal laying – Place cables in different cable channels
1
2
3
4
Figure 21: Alternative laying – Separate cables with metallic separators
Figure 22: Shield connection in plastic housings
6
ELECTRICAL INSTALLATION
38
O P E R A T I N G I N S T R U C T I O N S | CLV61x 8017840/19OF/2021-10-28 | SICK
Subject to change without notice
