12.7.2 CLV610: Mid Range
200
(7.87)
(7.87) (11.81) (15.75)
150
(5.91)
-150
(-5.91)
100
(3.94)
(7.9 mil) (13.8 mil)
(39.4 mil)
(19.7 mil)
-100
(-3.94)
-200
(-7.87)
50
(1.97)
-50
(-1.97)
Reading distance in mm (inch)
2
Reading field height in mm (inch) 1
Resolution 3
a: 0.2 mm
c: 0.50 mm
d: 1.00 mm
b: 0.35 mm
0 100 200 300 400
0
a
b
c
d

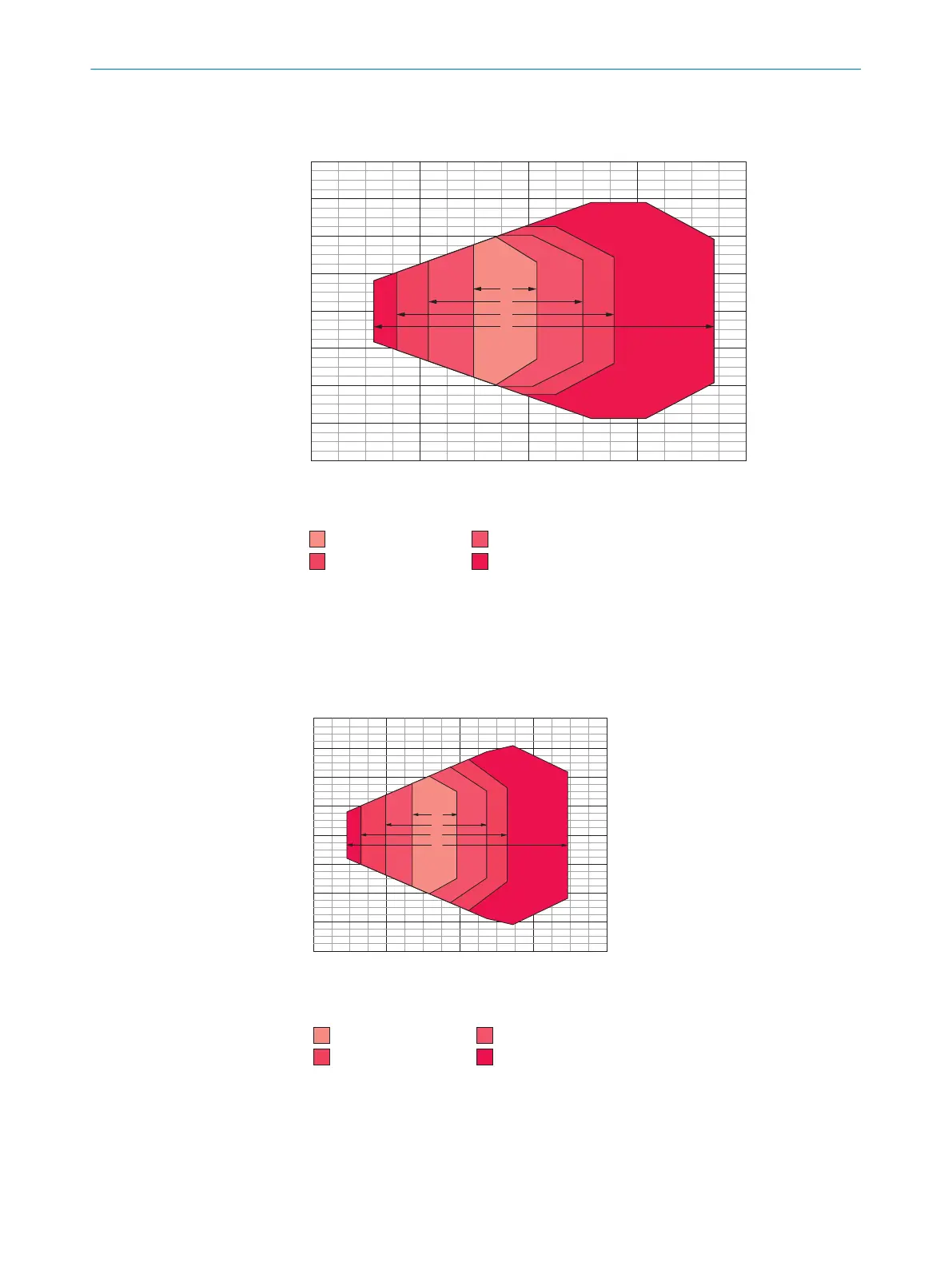

Figure 29: Reading field diagram for CLV610, Mid Range, front viewing window
1
Reading field height in mm (inch)
2
Reading distance in mm (inch)
3
Resolution
a
b
c
d
160
(6.3)
–40
(–1.57)
40
(1.57)
–80
(–3.15)
80
(3.15)
–120
(–4.72)
–160
(–6.3)
120
(4.72)
0
400
(15.75)
300
(11.81)
200
(7.87)
100
(3.94)
0
Reading distance in mm (inch)
2
Resolution 3
a: 0.2 mm (7.9 mil)
c: 0.50 mm (19.7 mil)
d: 1.00 mm (39.4 mil)
b: 0.35 mm (13.8 mil)
Reading field height in mm (inch) 1
Figure 30: Reading field diagram for CLV610, Mid Range, side viewing window
1
Reading field height in mm (inch)
2
Reading distance in mm (inch)
3
Resolution
