Electrical values 0 V ≤ V
out
1)
≤ V
S
(V
S
−1.5 V) ≤ V
out
≤ V
S
bei I
out
2)
≤ 100 mA
1)
Output voltage
2)
Output current
NOTE
Assign the functions for the digital outputs in the device using a configuration tool, e.g.,
the configuration software SOPAS ET.
14.5.9 Wiring the external digital outputs of the device in the CDB620-001
Device = CLV61x-xx0xxx (serial variant)
Load (e.g. PLC) 4
GND
V
out
For inductive load: 6
Device 1
Aux
(RS-232)
CDB620-001
CMC600 3
U
IN
*
“External
output A” 2
C
Out B
22
GND
6
Shield
5

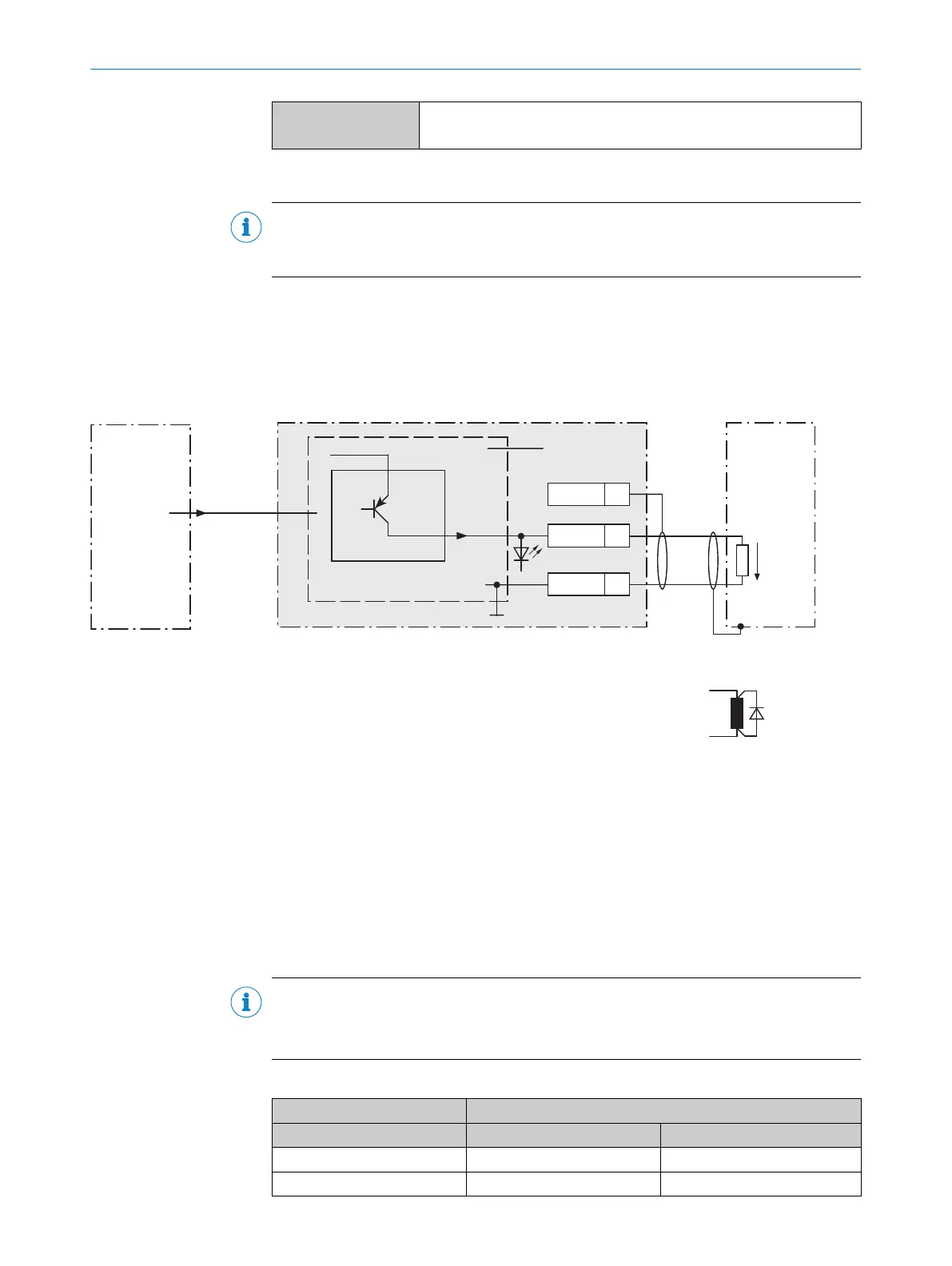

Figure 50: Wiring “Out 1” and “Out 2” external digital outputs of the device in the connection module CDB620-001.
1
Device
2
Logical “External output” in the device
3
The optional CMC600 parameter cloning module is required in the connection module in order to use the additional
external digital inputs and outputs of the device.
4
Load (e.g. PLC)
5
Output voltage V
out
6
With inductive load: see note
Inductive load
NOTE
Provide an arc-suppression switch at the digital output if inductive load is present.
b
Attach a freewheeling diode directly to the load for this purpose.
Table 32: Assignment of placeholders to the digital outputs
Device (logical output) CDB620-001 (physical output)
External output A Signal B Terminal C
1 Out 1 23
2 Out 2 24
