Chapter 4 Operating Instructions
CLV62x Bar Code Scanner
22 © SICK AG · Division Auto Ident · Germany · All rights reserved 8011965/S345/2008-04-16
Product description

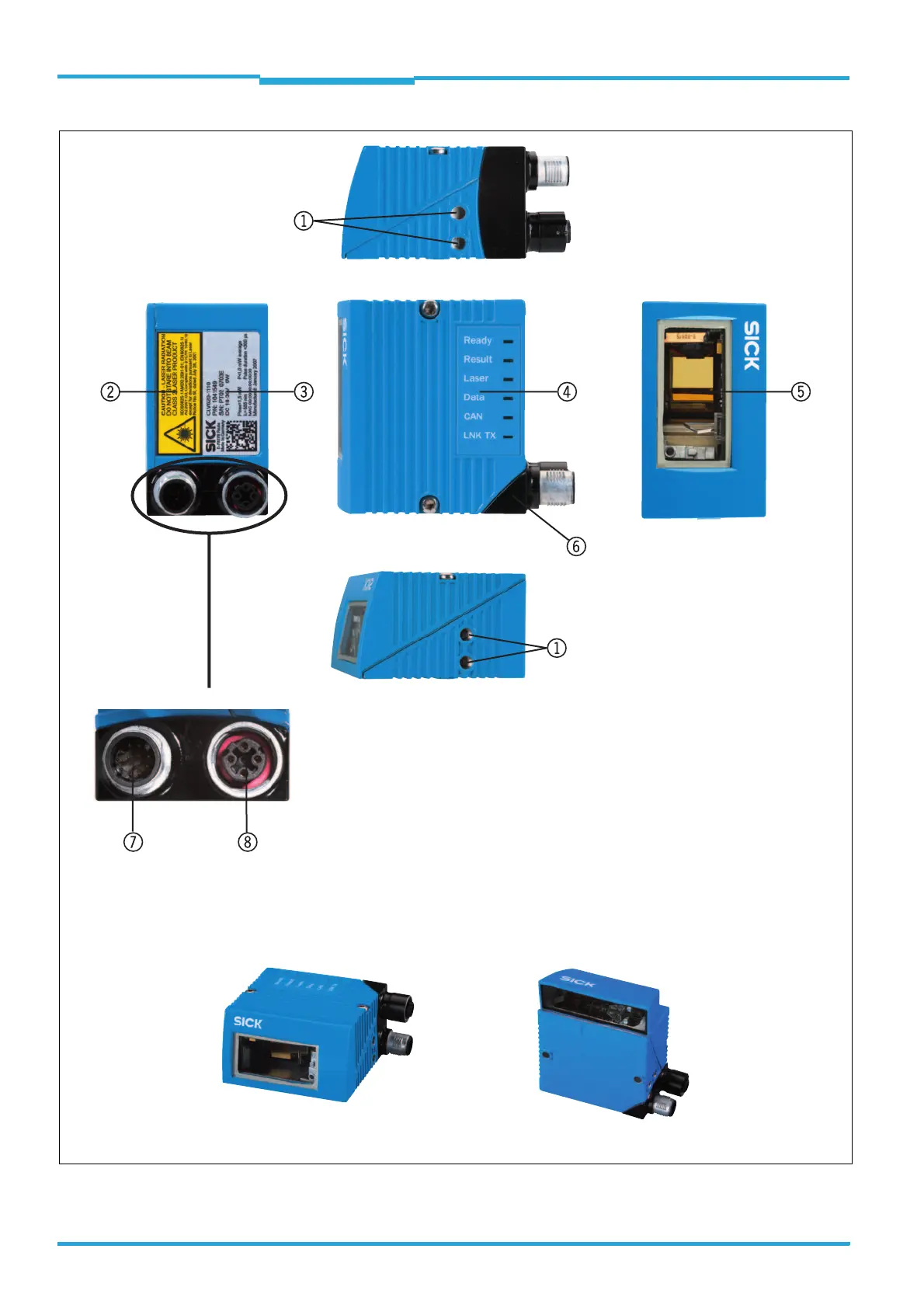

Fig. 4-2: Device view of the CLV62x Bar Code Scanner (shown here: Ethernet-Version)
1 Blind hole taps M5 (5 mm (0.2 in) deep) for fixing
2 Laser warning sign
3 Type plate
4 LEDs for status indicator
5 Reading window
6 Revolving connector unit
7 12-pole M12 plug
8 4-pole M12 jack (Ethernet connection)
Reading window on front Reading window on side
