Operating Instructions Chapter 10
CLV62x Bar Code Scanner
Technical data
8011965/S345/2008-04-16 © SICK AG · Division Auto Ident · Germany · All rights reserved 81

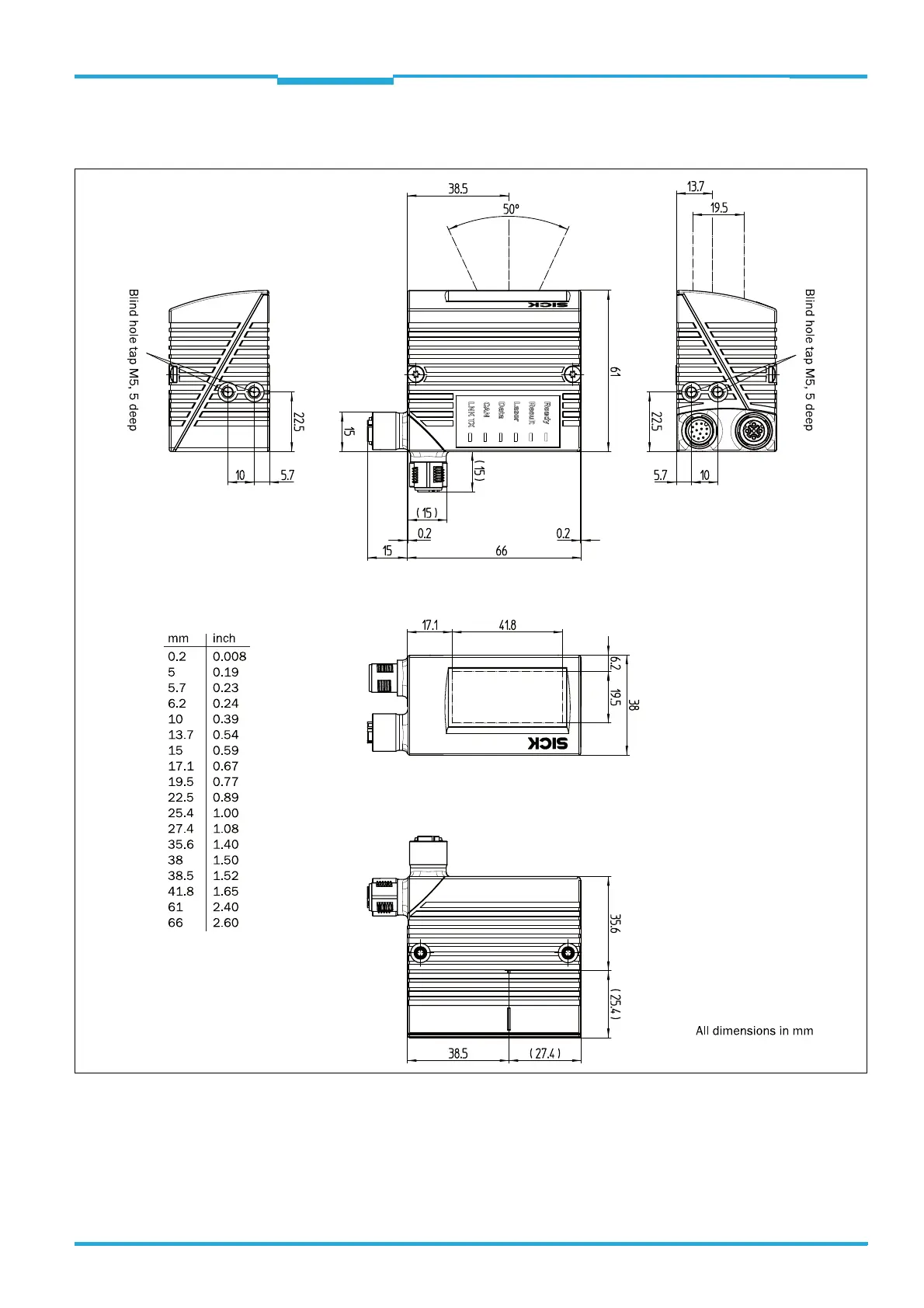

10.3.3 CLV62x-0120 and CLV62x-1120 Bar Code Scanner dimensional drawing
Fig. 10-12: Ethernet version: Dimensions of the bar code scanner with front reading window (CLV62x-0120 and CLV62x-1120)
