10.2 Specification diagrams
Tab. 10-2: Reading conditions for all specification diagrams
10.2.1 Reading ranges of the CLV620 Bar Code Scanner (Mid-range)

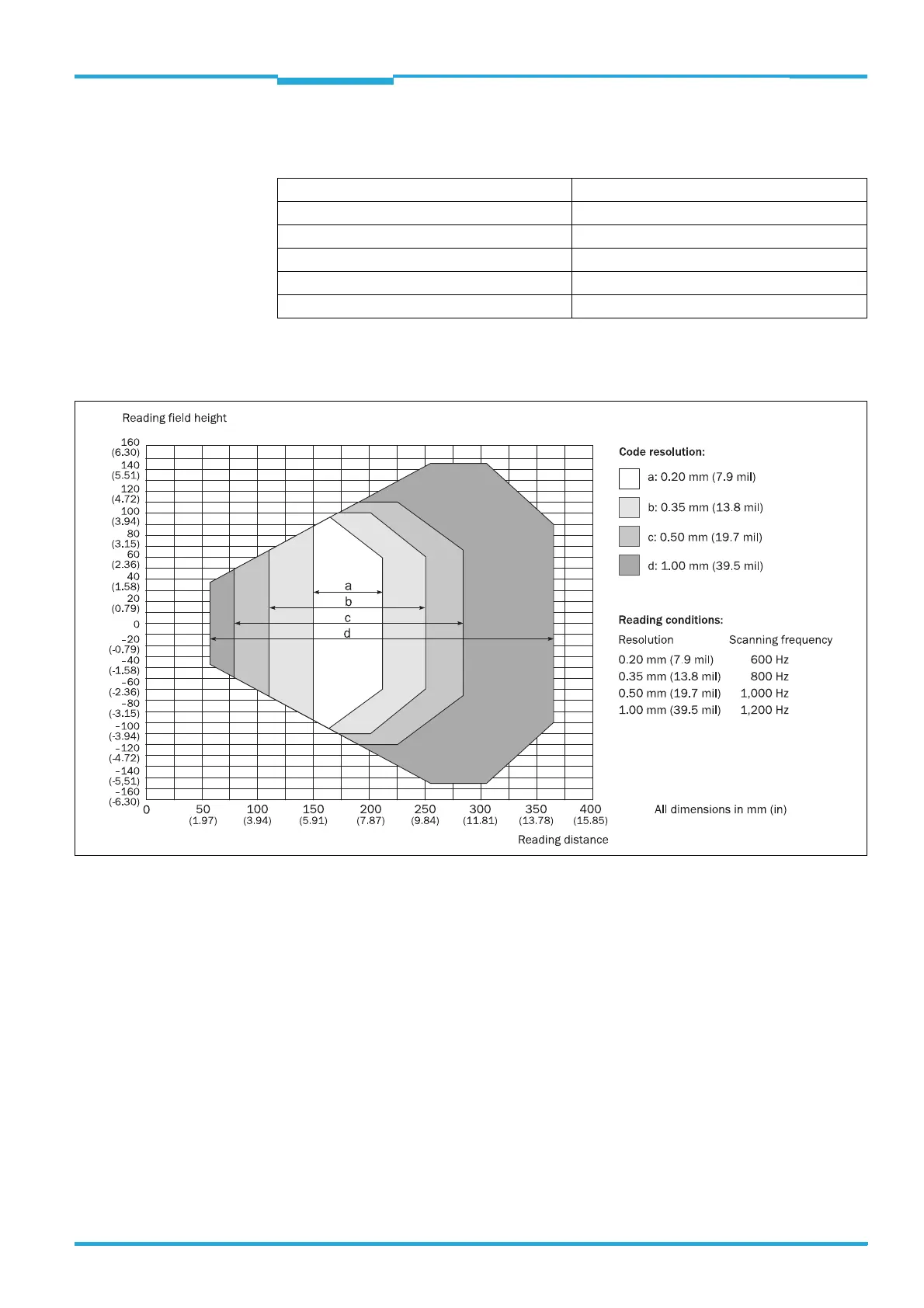

Fig. 10-1: Reading ranges of the CLV620 Bar Code Scanner (with front reading window)
Test code Code 39/ITF
Print ratio 2:1
Print contrast > 90 %
Tilt ±10°
Ambient light < 2 000 lx
Good read rate > 75 %
