Operating Instructions Chapter 4

CLV62x Bar Code Scanner

Product description

4.6.5 Reading operation mode

There is only one object in the reading field during start/stop operation, i.e. all the read

codes should be unambiguously assigned to the object. The start and stop of the reading

process control one/two reading pulse sensors at the beginning and at the end of the read-

ing field as standard. The distance between each sensor is determined by the size of the

reading field. The reading process can be alternatively controlled with command strings via

the data interface. The output of the reading results is carried out either at the end of the

reading pulse (the rear edge of the object has left the end of the reading field) or during the

reading pulse if certain configurable conditions have been fulfilled.

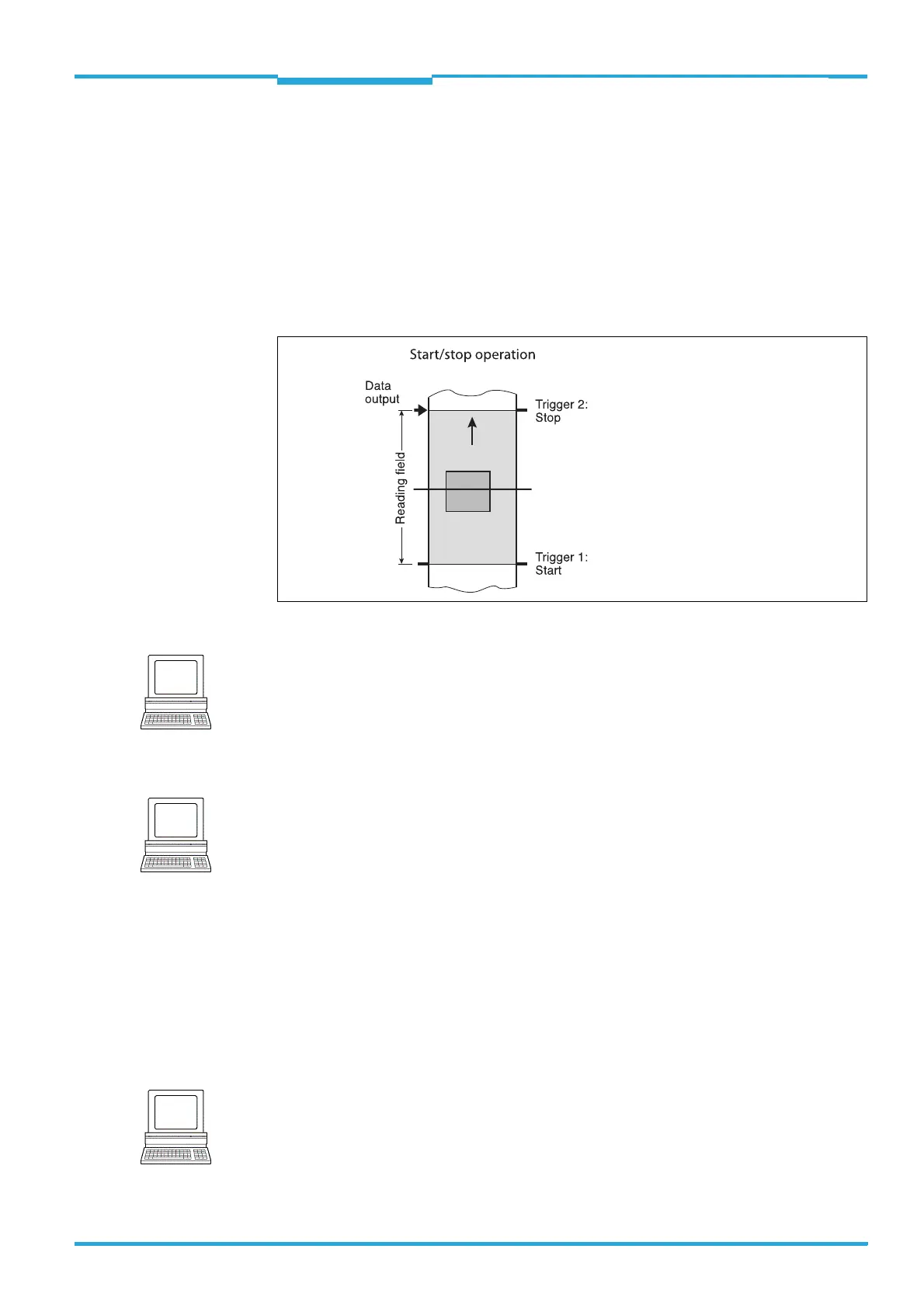

Fig. 4-4: Reading operation mode for the CLV62x Bar Code Scanner in stand-alone operation

4.6.6 Data processing

4.6.7 Output format

The reading result (decoded codes) is displayed via selectable physical interfaces. Two dif-

ferent output formats (telegrams) can be defined for this task, one format for "No Read" and

one for the heartbeat (signalisation of readiness).

Note

The reading operation mode can be configured using the SOPAS-ET configuration software:

ROJECT TREE, CLV62X, PARAMETER, DATA PROCESSING, register tab TRACKING

Note

The output time in the reading process with regard to the reading pulse start can be config-

ured using the SOPAS-ET configuration software:

ROJECT TREE, CLV62X, PARAMETER, DATA PROCESSING, OUTPUT CONTROL

Furthermore, the evaluation conditions and filters and sorters for data output to the host

computer can be configured:

ROJECT TREE, CLV62X, PARAMETER, DATA PROCESSING, EVALUATION CONDITION

PROJECT TREE, CLV62X, PARAMETER, DATA PROCESSING, FILTER/SORTER FOR OUTPUT

Note

The output formats can be configured using the SOPAS-ET configuration software:

ROJECT TREE, CLV62X, PARAMETER, DATA PROCESSING, OUTPUT FORMAT
