Chapter 10 Operating Instructions
CLV62x Bar Code Scanner
82 © SICK AG · Division Auto Ident · Germany · All rights reserved 8011965/S345/2008-04-16
Technical data
10.3.4 CLV62x-2120 and CLV62x-3120 Bar Code Scanner dimensional drawing

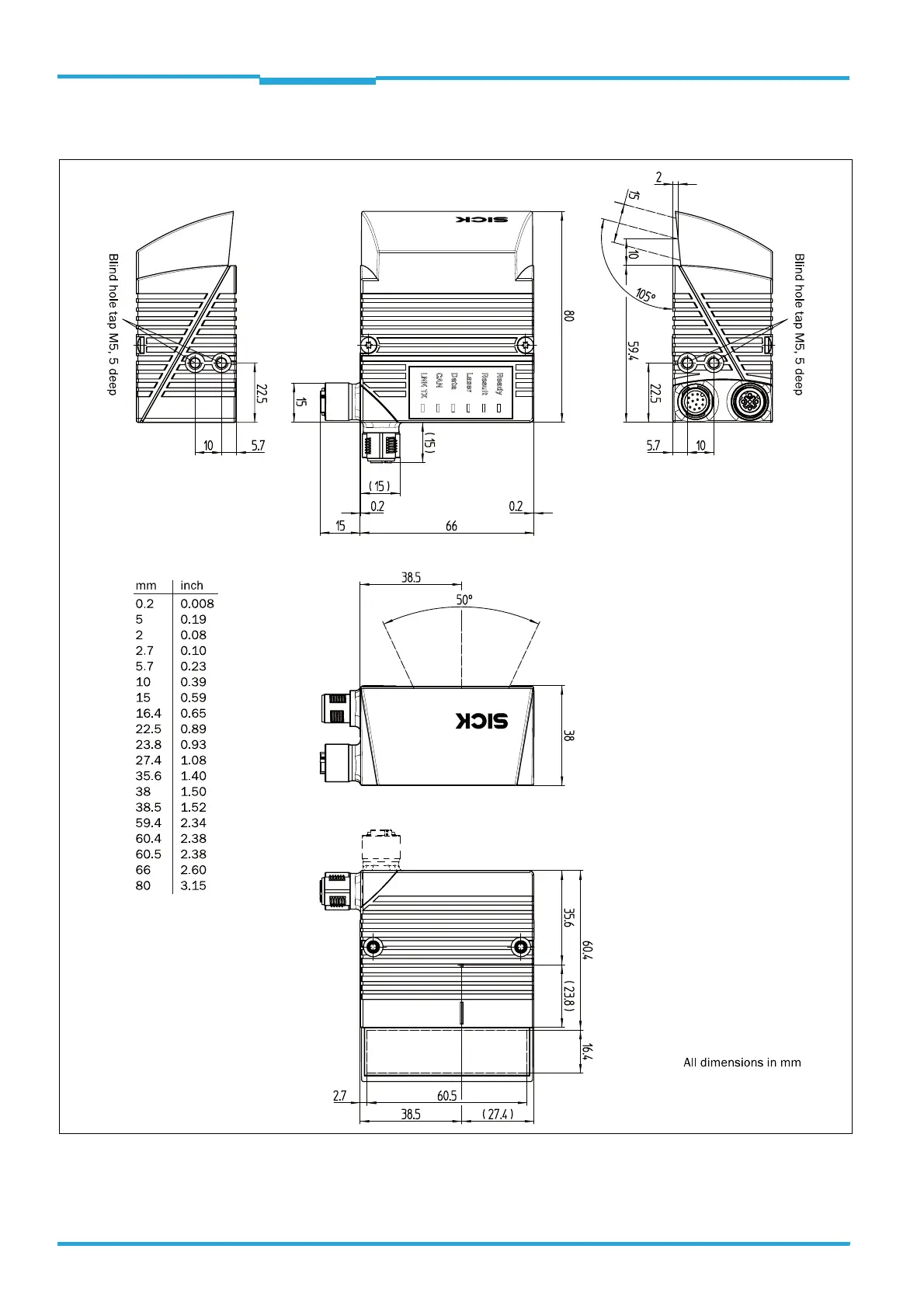

Fig. 10-13: Ethernet version: Dimensions of the bar code scanner with side reading window (CLV62x-2120 and CLV62x-3120)
