SICK CLV621 - Clv62 X Bar Code Scanner Dimensional Drawings; Fig. 10-10: Standard Version: Dimensions of the Bar Code Scanner with Front Reading Window (Clv62 X-0000 and Clv62 X-1000)

Operating Instructions Chapter 10
CLV62x Bar Code Scanner
Technical data
8011965/S345/2008-04-16 © SICK AG · Division Auto Ident · Germany · All rights reserved 79
10.3 CLV62x Bar Code Scanner dimensional drawings
10.3.1 CLV62x-0000 and CLV62x-1000 Bar Code Scanner dimensional drawing

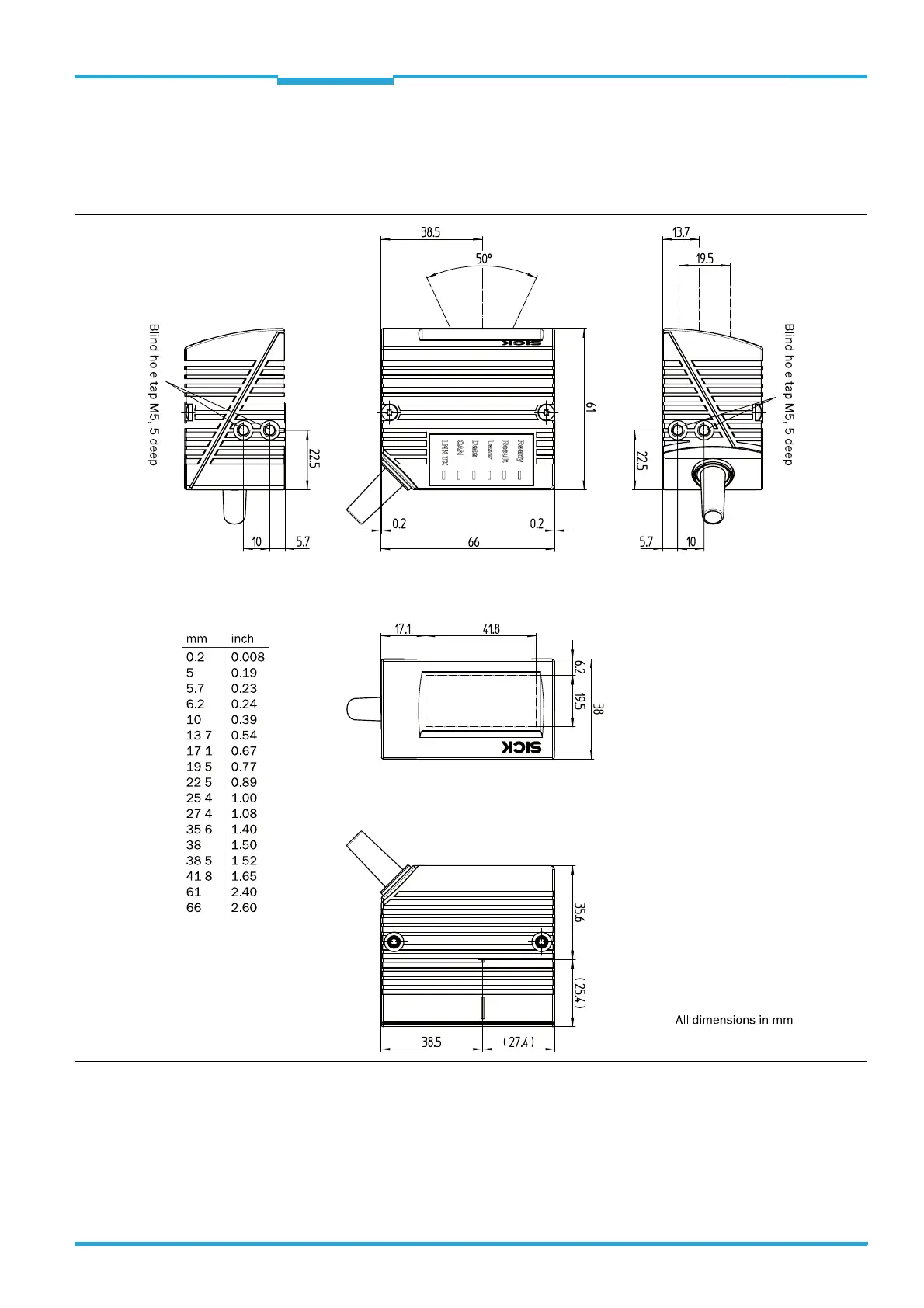

Fig. 10-10: Standard version: Dimensions of the bar code scanner with front reading window (CLV62x-0000 and CLV62x-1000)
