Operating Instructions Chapter 11
CLV62x Bar Code Scanner
Appendix
8011965/S345/2008-04-16 © SICK AG · Division Auto Ident · Germany · All rights reserved 95

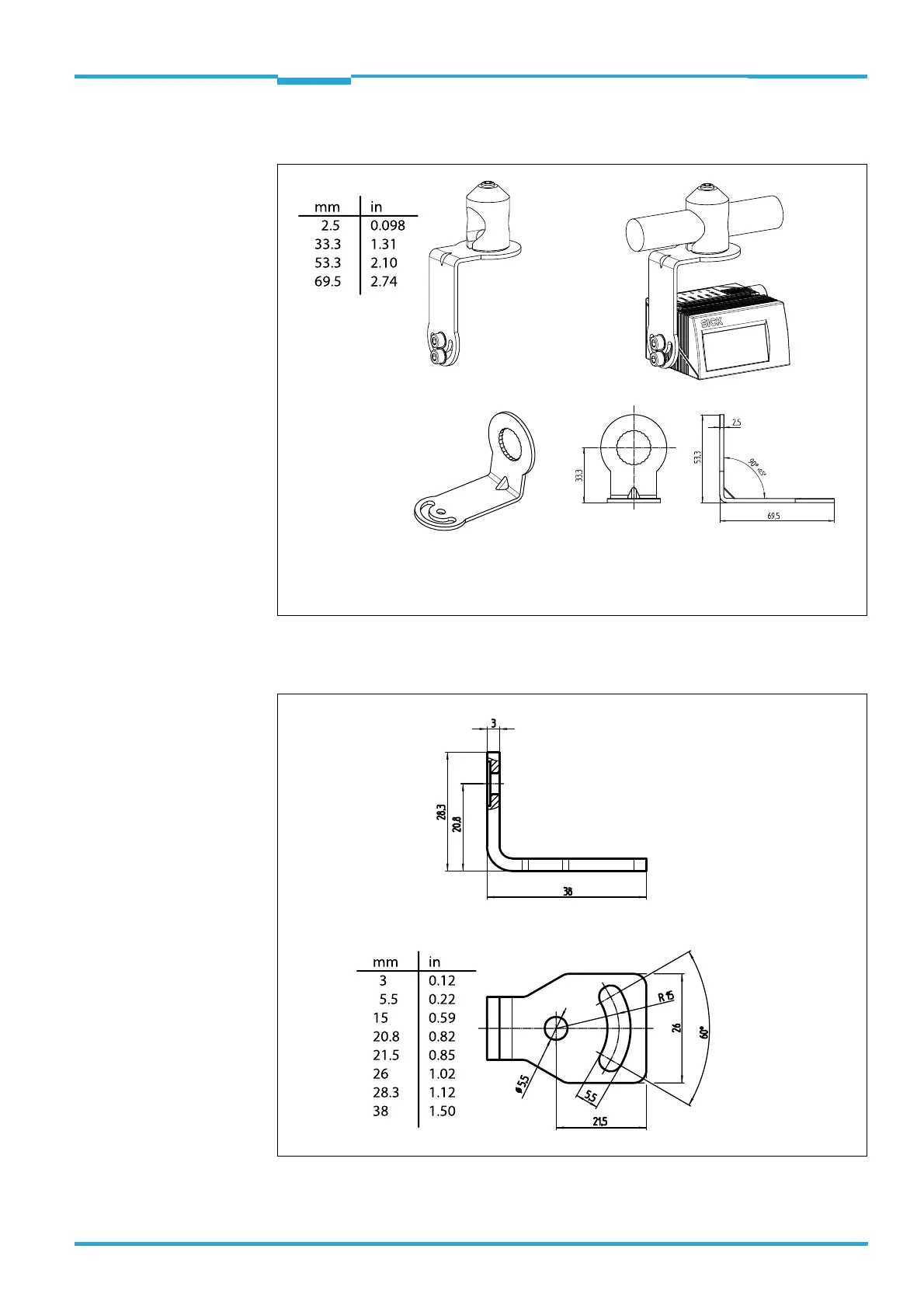

11.5.3 Dimensional drawing of round rod holder no. 2042802
Fig. 11-3: Dimensions of the round rod holder no. 2042802
11.5.4 Dimensional drawing of bracket with adapter plate no. 2042902
Fig. 11-4: Dimensions of the bracket with adapter plate no. 2042902 (here shown only the
bracket)
Included to fix the bar code scanner to the holder:
• 2 x cylinder head screws M5 x 8 mm (0.32 in), with hexagon socket, self-locking
• 2 x spring washer A5
