Chapter 10 Operating Instructions
CLV62x Bar Code Scanner
76 © SICK AG · Division Auto Ident · Germany · All rights reserved 8011965/S345/2008-04-16
Technical data

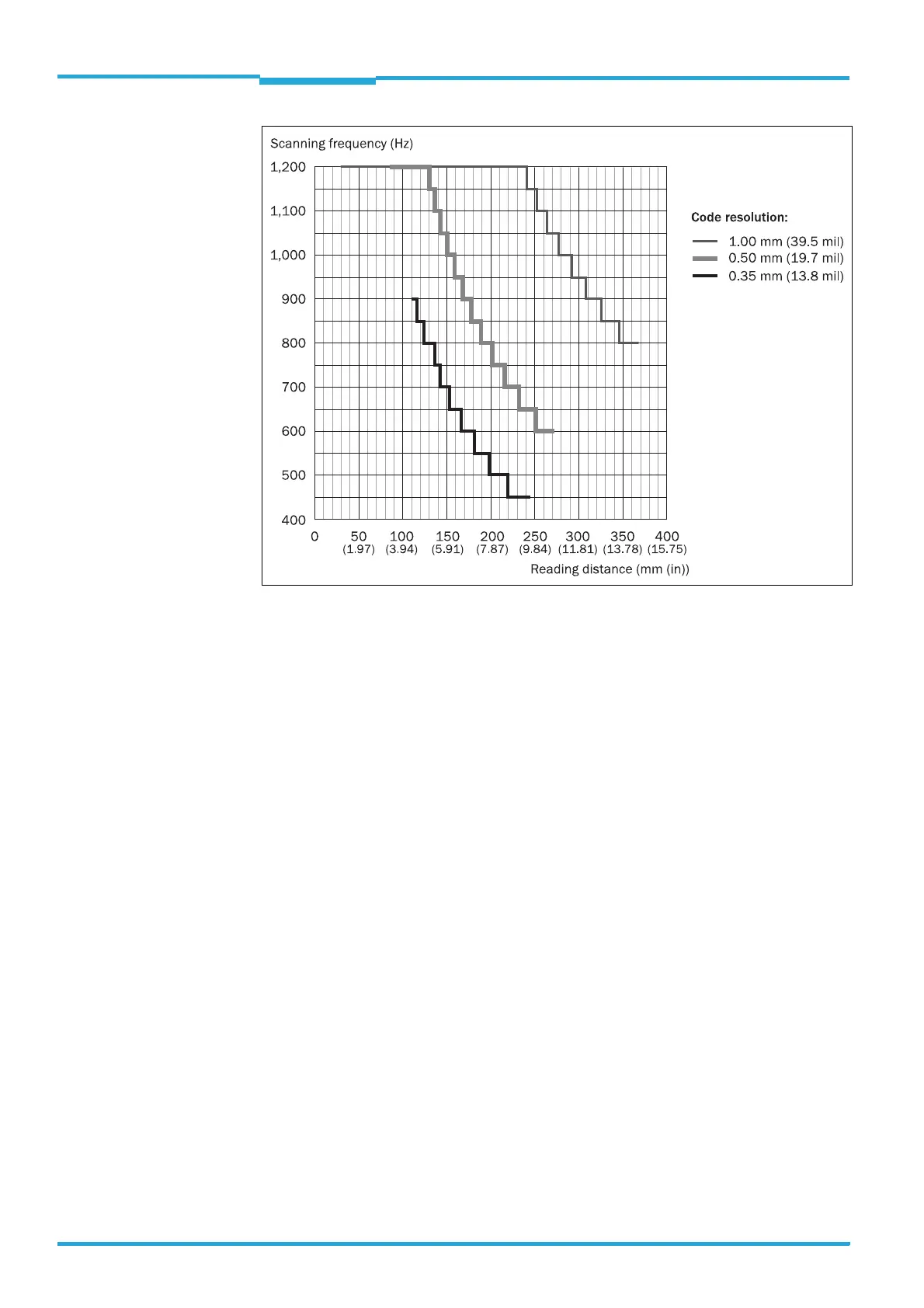

Fig. 10-6: CLV621: Set of characteristic curves for scan frequency, depending on the reading
distance and resolution (front reading window)
Important
With the CLV621 Bar Code Scanner with side reading window, the reading distance values
in the above diagram have an offset of 16 mm towards the reading window for all scan fre-
quencies.
