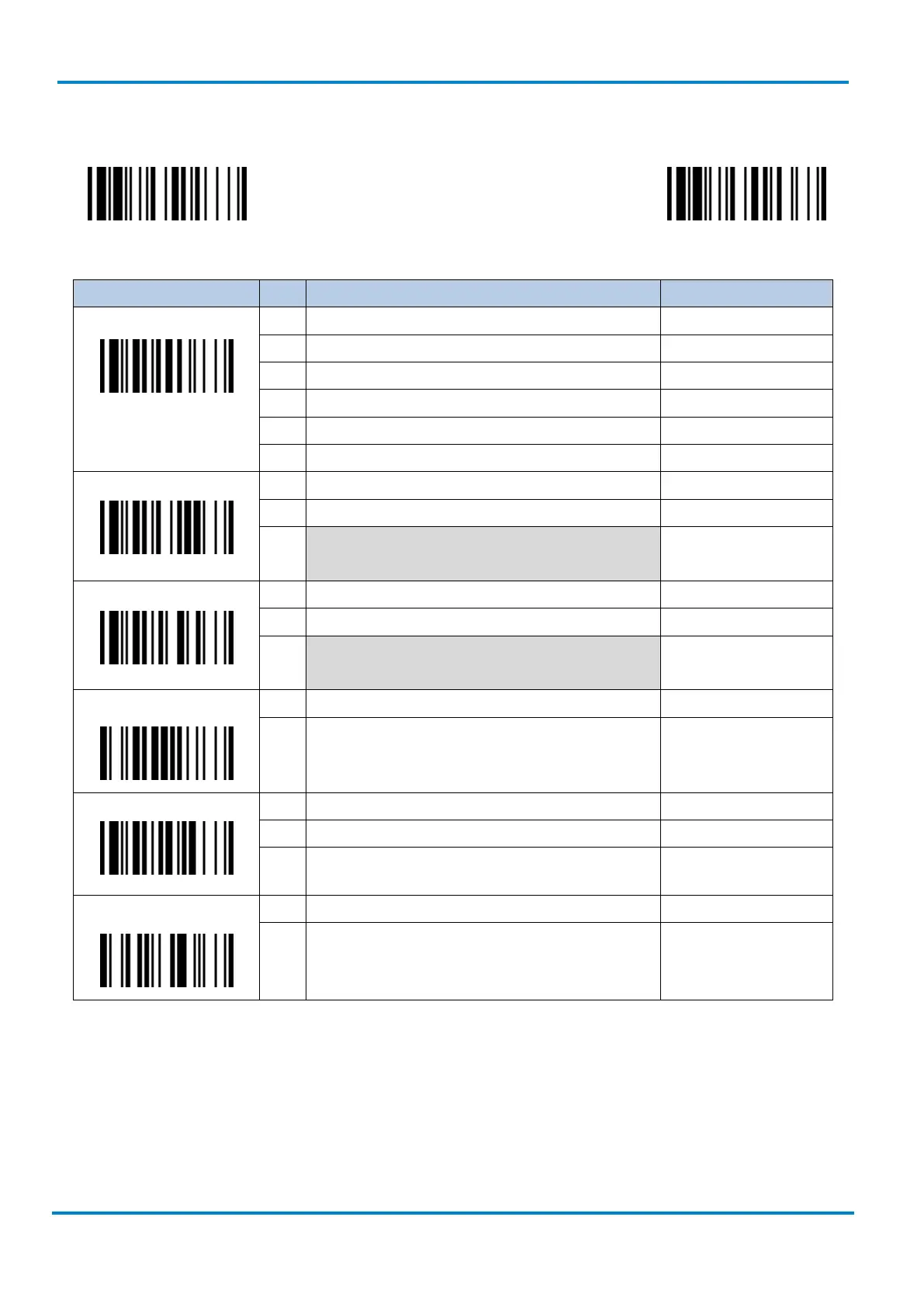

3.4.2 Suffix, Preamble, Postamble, FNC1 Transmit, Caps Lock
PROGRAM
F_DEFAULT
Family Code Selection P.C. Parameter Selection Option Code
Record Suffix
SS None 0
SS RETURN  1
SS TAB  2
SS SPACE 3
SS ENTER (Numeric Key Pad) 4
SS User defined character (1 character) 5, (00-7F)
Preamble
SS None  FIN
MS 1-15 characters [00-7F], FIN
Maximum 15-character input.
Scan “FIN” to terminate this selection.
Postamble
SS None  FIN
MS 1-15 characters [00-7F], FIN
Maximum 15-character input.
Scan “FIN” to terminate this selection.
FNC1 Symbol Char.
Transmit
SS Disable  0
SS Enable 1
Caps Lock Control
SS “Caps Lock Off” State  0
SS “Caps Lock On” State 1
SS Auto Detect (PC/AT, PS/2, Keyboard Replacement
and DOS/V Machines only)
2
Caps Lock Release
Control
SS “Caps Lock On, Caps Off”  0
SS “Caps Lock On, Shift Off” 1
FNC1 Symbol Character. Transmit
When this function is enabled and the FNC1 is contained in the scanned data, the scanner transmits the
FNC1 to the host. When the scanner interface is set to keyboard, the scanned code is converted to
corresponding key function before it is transmitted.
The function of “Caps Lock Control” and “Key Pad Emulation” are only available for IBM PC/AT, PS/VP, PS/2
series personal computers and compatible machines. While selecting the other host interfaces, these
selections don’t perform the above functions.
