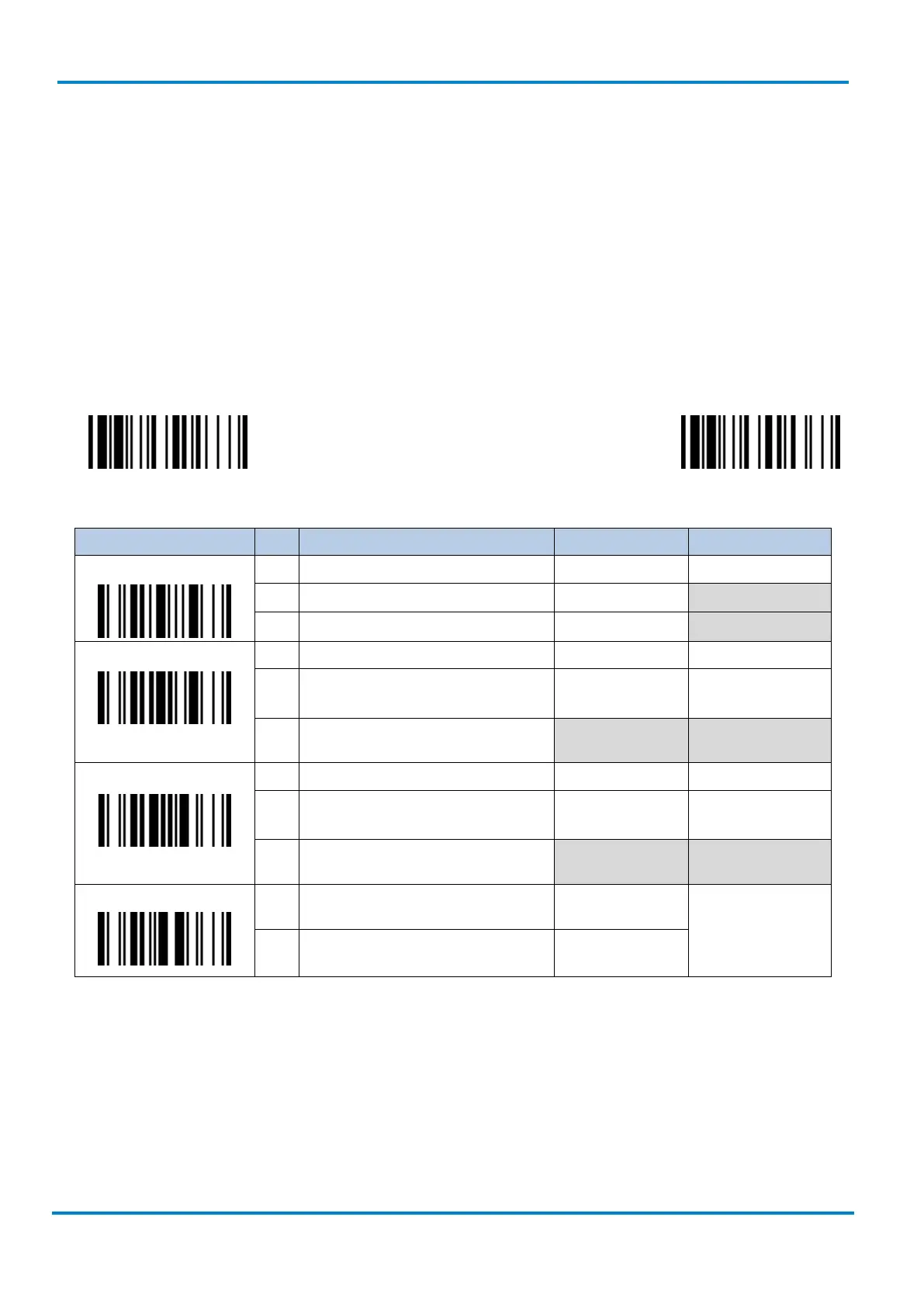

3.12.5 Data Organizer
The Data Organizer is used to edit the scanned raw data prior to transmitting the data to the host computers
or terminals. It allows you to select desired barcode symbologies for organizer control and provides maximum
two identified positions to send the data forward or backward. It also allows you to control the transmitted
data including or excluding the data of identification position. Please refer to the application example listed in
page 100 for details. While the Data Organizer is enabled, it arranges only scanned data without Preamble,
Postamble, STX, ETX, Data Length, Prefix/Suffix Symbology ID or Record Suffix. Regarding the “Bar Code
Selection” and “Position Calculation” of Data Organizer, please refer to page 99 and 100 for details. All
“Character” input should be referred to the ASCII/HEX Table listed in the Appendix (page 107) to find matched
HEX value.
Family Code Selection P.C. Parameter Selection 1
st
Option Code 2
nd
Option Code
Organizer Control
SS Disable FIN
MS
Select one barcode symbology (2 digits)
Automatic termination
MS
Select all barcode symbologies 00
Automatic termination
1st Organization
SS Disable FIN
DS
Enable Position: (2 digits) 0 (Forward)
1 (Backward)
Define position (refer
to chapter 3.12.7)
Define direction
2nd Organization
SS Disable FIN
DS
Enable Position: (2 digits) 0 (Forward)
1 (Backward)
Define position (refer
to chapter 3.12.7)
Define direction
Include/ Exclude Control
SS Transmitted data excluded the data
of identified position
0
DS
Transmitted data included the data
of identified position
1
To Next Page
