3.12.4 Data Replacer
The Data Replacer is used to edit the scanned raw data prior to transmitting the data to the host computers
or terminals. It allows you to select desired barcode symbologies for replacer control, and provides Multiple
Position Replacement in the identified position.
All data must conform to the Identified Bar Code Symbologies, and one to three Identified Characters in the
identified position. While the Data Replacer is enabled, it arranges only scanned data without Preamble,
Postamble, STX, ETX, Data Length, Prefix/Suffix Symbology ID or Record Suffix.
Regarding the “Bar Code Selection” and “Position Calculation” of Data Replacer, please refer to page 99 and
100 for details. All “Character” input should be referred to the ASCII/HEX Table listed in the Appendix (page
107) to find matched HEX value.

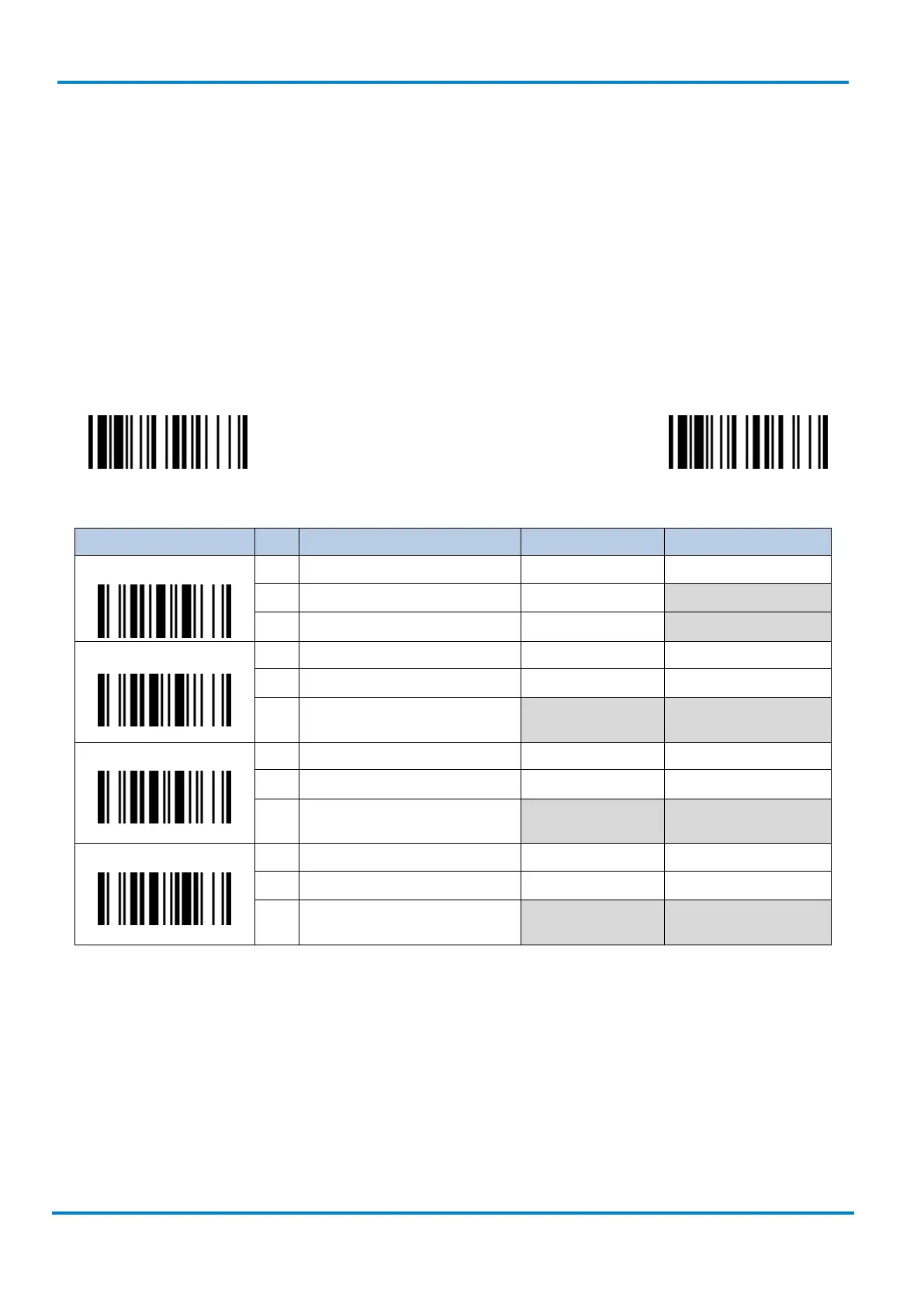

PROGRAM
F_DEFAULT
Family Code Selection P.C. Parameter Selection 1
st
Option Code 2
nd
Option Code
Replacer Control
SS Disable  FIN
MS
Select one barcode symbology (2 digits)
Automatic termination
MS
Select all barcode symbologies 00
Automatic termination
1st Replacement
SS Disable  FIN
DS
Enable Position: (2 digits) [00-7F]
Define position (refer
to chapter 3.12.7)
1 character
2nd Replacement
SS Disable  FIN
DS
Enable Position: (2 digits) [00-7F]
Define position (refer
to chapter 3.12.7)
1 character
3rd Replacement
SS Disable  FIN
DS
Enable Position: (2 digits) [00-7F]
Define position (refer
to chapter 3.12.7)
1 character
