Operating Instructions

Serial Interface Control

IDM corded

& IDM Bluetooth

8017159/2014-04-24

ACK Indication

Disable: There’s neither LED nor beeping indication for this setting.

Enable: There’s a specific LED and beeping indication for this setting.

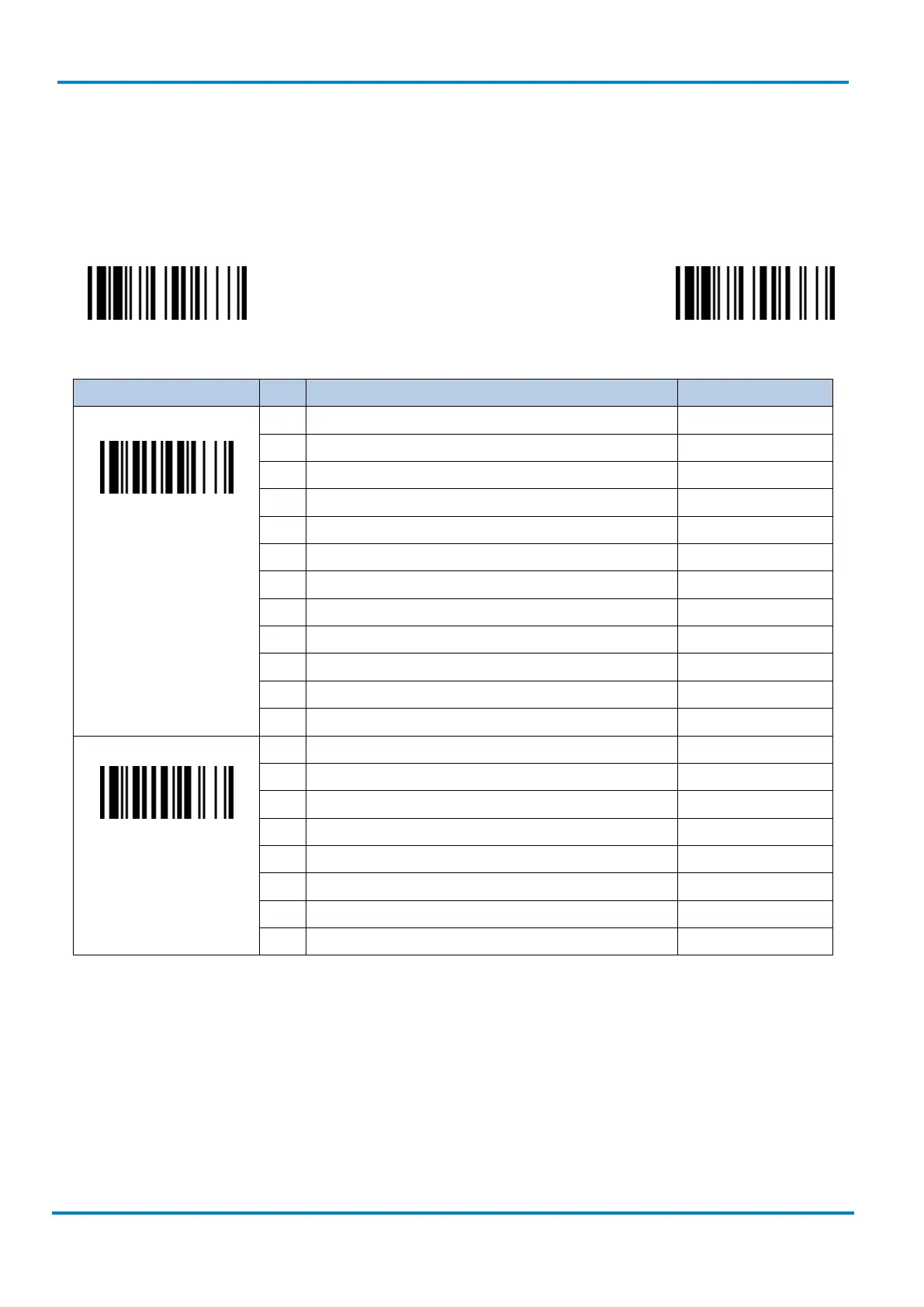

3.5.4 Response Time-out, Baud Rate

PROGRAM

F_DEFAULT

Family Code Selection P.C. Parameter Selection Option Code

Serial Response Time-out

SS None 0

SS 200 mseconds 1

SS 500 mseconds  2

SS 800 mseconds 3

SS 1 second 4

SS 2 seconds 5

SS 3 seconds 6

SS 4 seconds 7

SS 5 seconds 8

SS 8 seconds 9

SS 10 seconds A

SS 15 seconds B

Baud Rate (BPS)

SS 38.4K BPS 0

SS 19.2K BPS 1

SS 9600 BPS  2

SS 4800 BPS 3

SS 2400 BPS 4

SS 1200 BPS 5

SS 57.6K BPS 8

SS 115.2K BPS 9

The Serial Response Time-out is a pre-defined delay time for the Hand-held scanner to wait for handshaking,

acknowledgment or non-acknowledgment from the host computer
