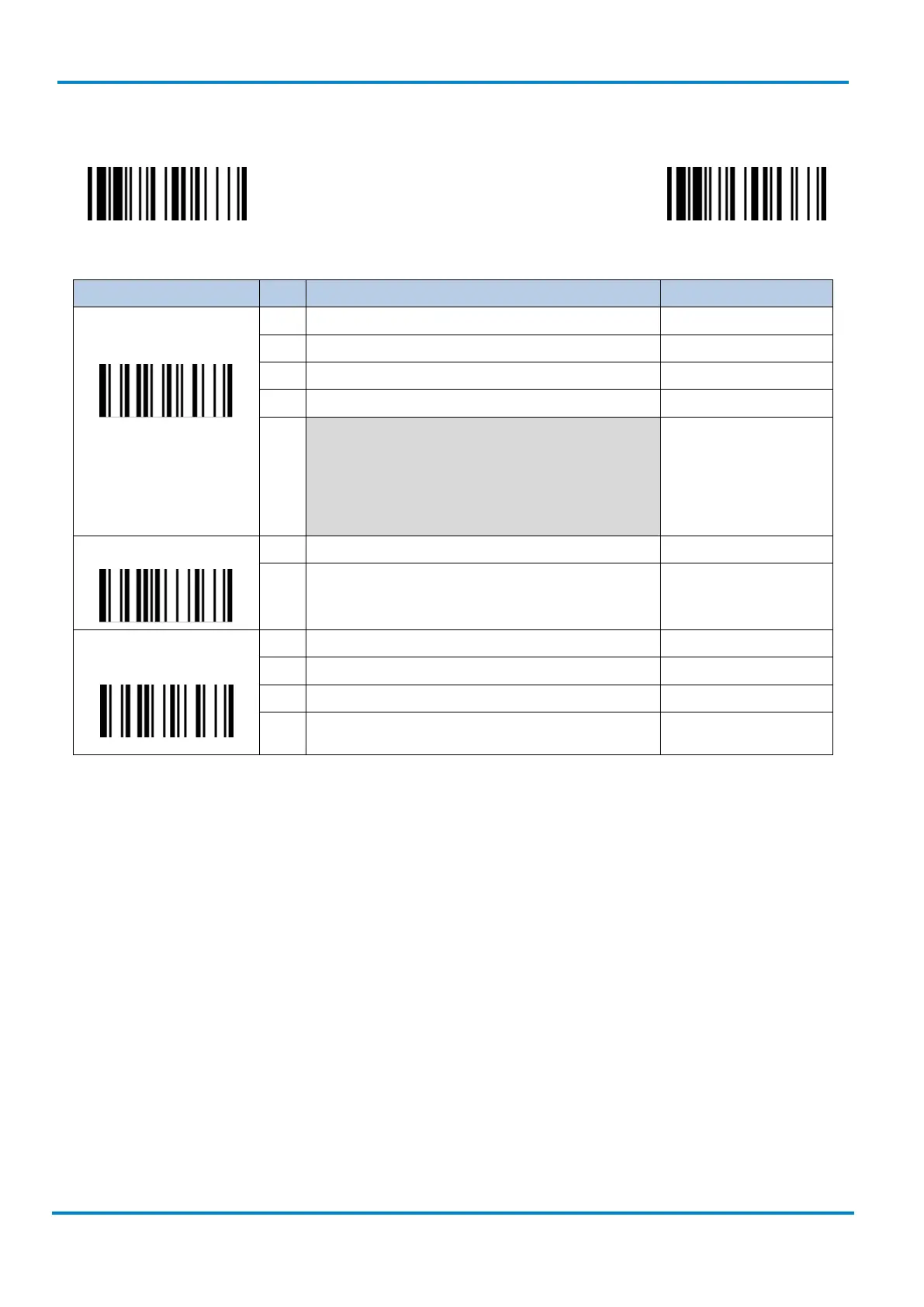

3.7.19 Composite Codes, Codablock F, PDF417, Micro PDF417
PROGRAM
F_DEFAULT
Family Code Selection P.C. Parameter Selection Option Code
Composite Codes
Settings
SS Disable composite codes  0
SS Enable composite codes 1
SS UPC Composite Mode: UPC never linked  2
SS UPC Composite Mode: UPC always linked 3
If “UPC Composite Mode: UPC never linked” is selected, UPC
barcodes are transmitted whether Micro PDF417 symbol is
detected or not.
If “UPC Composite Mode: UPC always linked” is selected,
UPC barcodes are only transmitted when the Micro PDF417
is detected.
Codablock F Settings
SS Disable  0
SS Enable 1
PDF417/ Micro PDF417
Settings
SS Disable PDF417 0
SS Enable PDF417  1
SS Disable MicroPDF417  2
SS Enable MicroPDF417 3
