SICK Lector85x User Manual

Lector85x
V2D8512R-1MCXXXALOS
Product ID:
pid.sick.com/1123615/22011234
MAC P1:
Scan Me!
D-79276 Reute
Made in Germany
Manufactured:
Janurary 2022
00:11:22:33:44:55
00:11:22:33:44:56MAC P2:
DC 24 V ±20% P max. 24 W
P/N S/N
Adjustable
F o c u s
MP12
25
1
2
6
3
7
ß
8
9
4
5
Connectivity
LA
FL 12mm
f/1.8-16.0

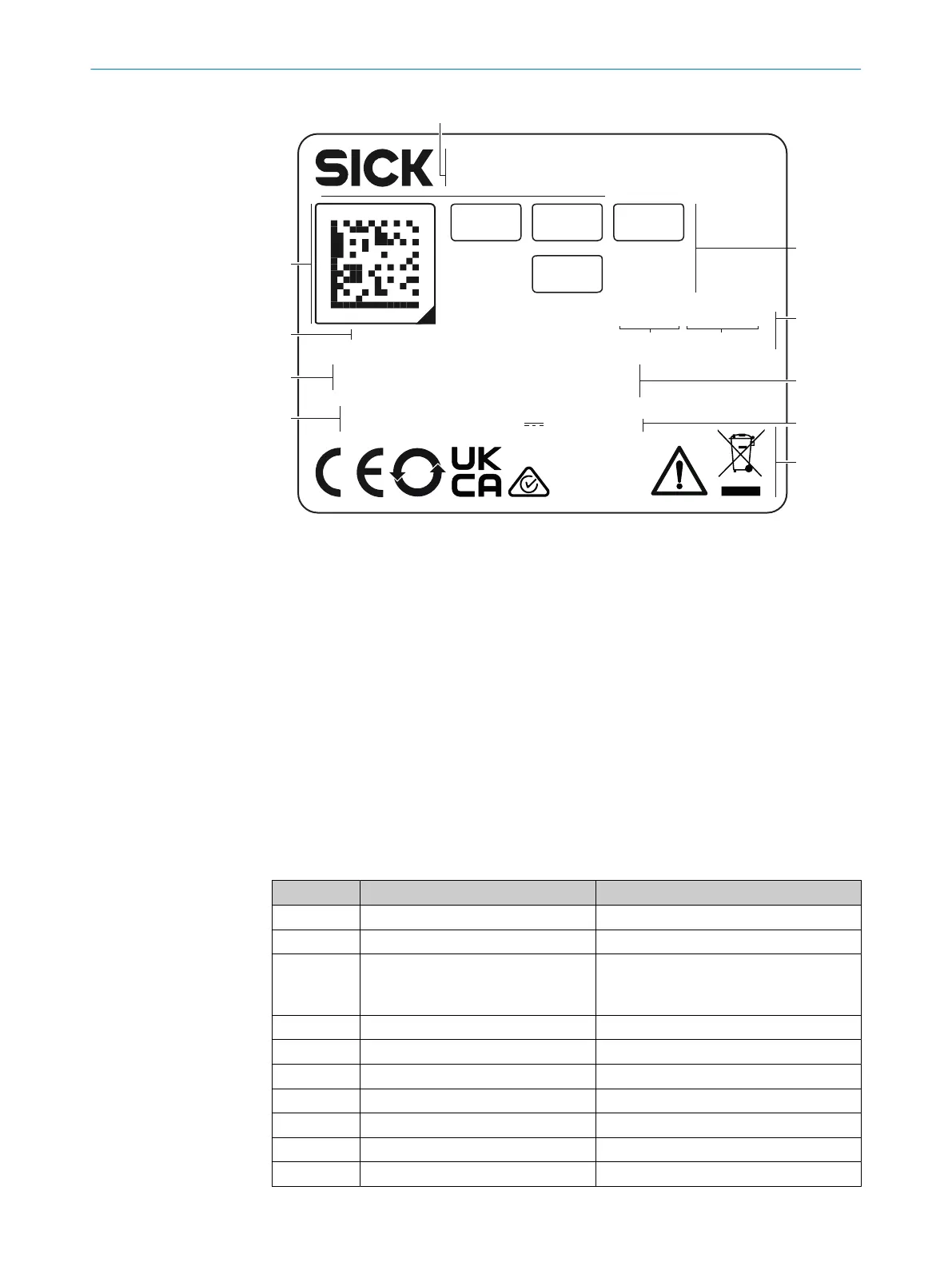

Figure 1: Lector85x type label (example)
1
Product and type designation
2
Product characteristics
3
Product ID
4
MAC address
5
Supply voltage and maximum power consumption
6
Conformity mark and certification mark
7
Production date
8
Production site
9
Scan me!
ß
QR code with a link to the product and more information
3.4 Type code
Type code structure
V2D a b c d – e f g h i j k l m n
Position Description Characteristic
a Product family 8: 8xx series
b Platform, housing 5: Advanced Line
c Resolution of the image sensor 05: 5megapixels (2,464px x 2,048px)
09: 9megapixels (4,096px x 2,176px)
12: 12megapixels (4,096px x 3,008px)
d Function R: Lector - Reading
e Generation 1: First generation
f Image sensor type/color M: Monochrome
g Optical/focusing system C: C-mount
h Illumination unit X: Without
i Focal length X: Without
j Filter X: Without
PRODUCT DESCRIPTION 3
8027859/1INN/2023-03-08 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector85x
