Status LEDs
Display LED (color) Description
Ready
O (Green)
The device is switched on and ready
for use.
O (Red)
Error
Ö (Green)
Device is not ready for use.
Reasons
•
Firmware update
•
Parameter change by the user
•
Parameter change by another
device (e.g., PLC)
O (Blue)
Device powers up.
L/A P1 GbE
L/A P2 GbE
L/A P3 GbE
o
No Ethernet connection
O (Green)
Connected to network
(10/100MB/s)
Ö (Green)
Data transmission over the network
(10/100MB/s)
O (Blue)
Connected to network (1GB/s)
Ö
Data transmission over the network
(1GB/s)
o = off; O = illuminated; Ö = flashing

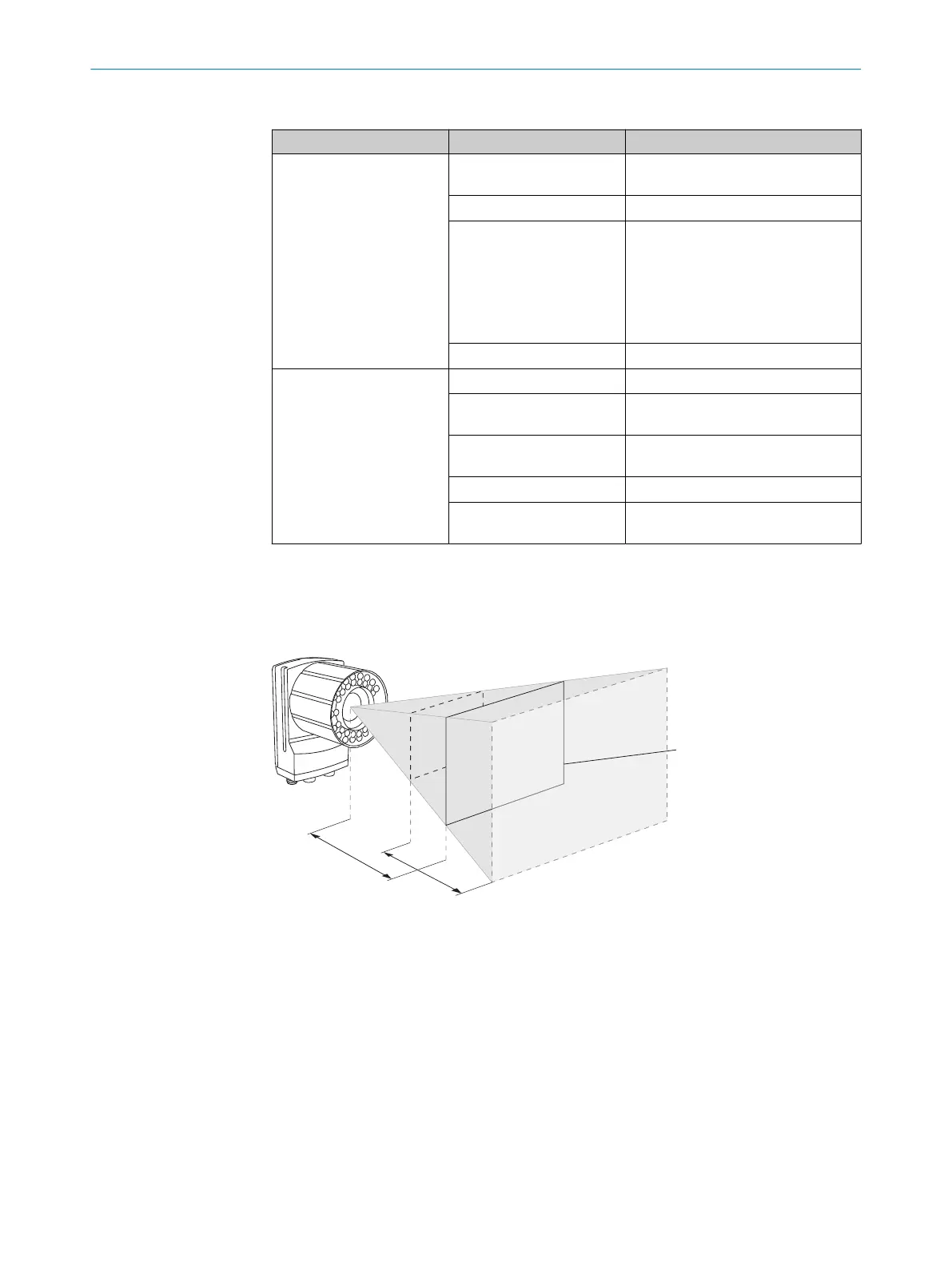

3.8 Working range
Working distance and field of view size
1
2
3
1
Working distance
2
Depth of field
3 Field of view size: horizontal x vertical (mm) in working distance 1
A working distance can be selected within the working range. The perceived field of
view area is determined by the focus position, the focal length of the lens, and the
working distance. The necessary working distance can be determined from the field of
view diagram.
Focus setting
The focus position can be adjusted manually on the lens.
The focus position is valid for one working distance. The device does not perform auto‐
matic tracking (auto focus) if, for example, the working distance changes significantly.
3 PRODUCT DESCRIPTION
16
O P E R A T I N G I N S T R U C T I O N S | Lector85x 8027859/1INN/2023-03-08 | SICK
Subject to change without notice
