3.6 Integrated illumination unit
Overview

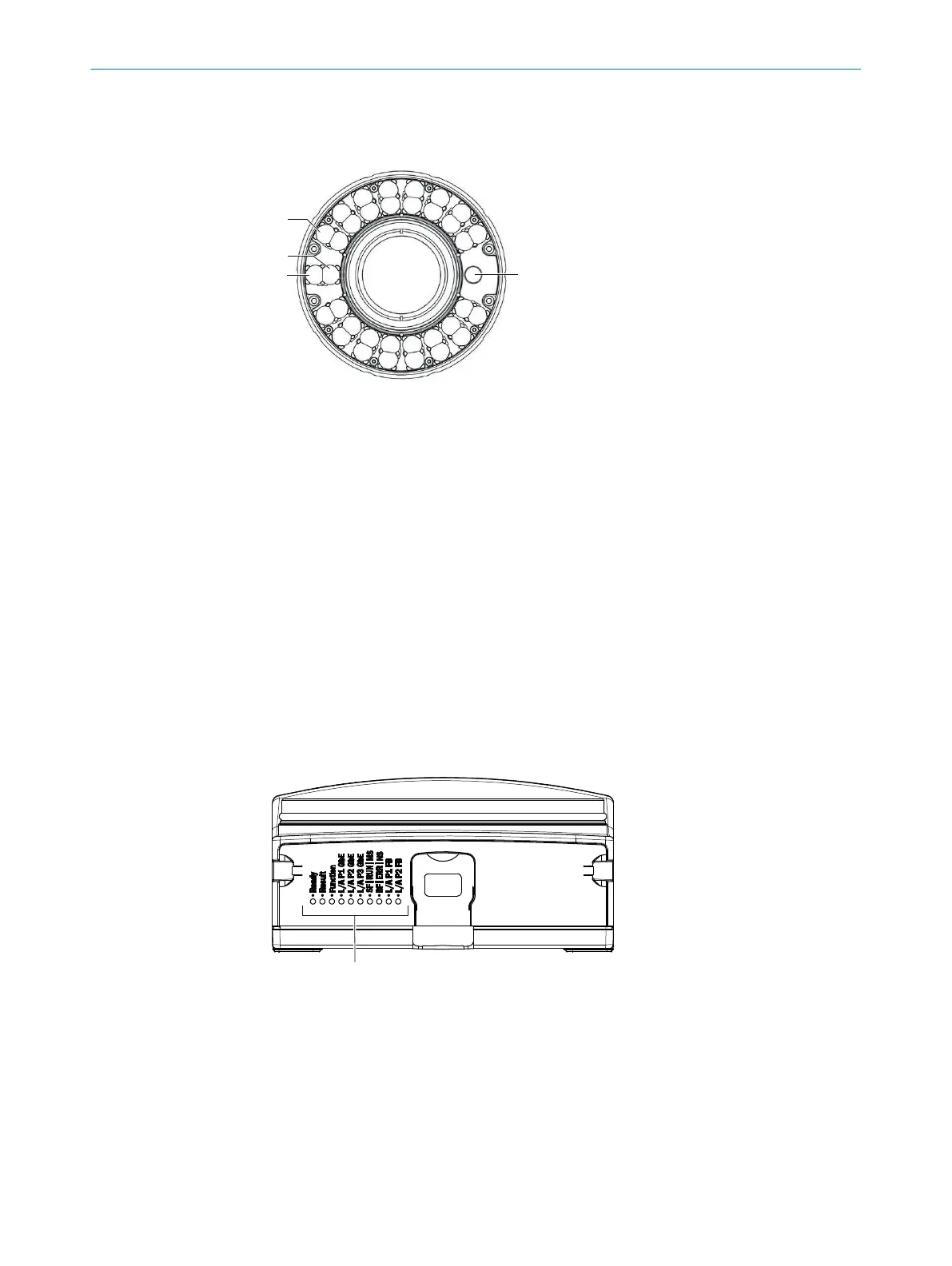

Figure 2: VI83I illumination unit
1
32 illumination LEDs, color: visible white light
2
1 Feedback LED, color: visible green light, e.g., for Good Read (not available)
3
1 Feedback LED, color: visible red light, e.g., for No Read (not available)
3
Laser alignment aid, color: visible red light (not available)
Feedback LED (not available)
The function of the feedback LED can be set using the configuration software. With
the default settings, for example, the green feedback LED briefly produces a green
feedback spot within the field of view of the product after a successful read.
Laser alignment aid (not available)
The laser alignment aid produces a red spot (laser spot) in the field of view of the
product. The alignment aid can be switched off.
3.7 Display and control elements
Overview
1
Status LEDs
PRODUCT DESCRIPTION 3
8027859/1INN/2023-03-08 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector85x
15
Subject to change without notice
