5 Mounting
5.1 Mounting instructions
•
Observe the technical data.
•
Protect the sensor from direct and indirect sunlight.
•
To prevent condensation, avoid exposing the device to rapid changes in tempera‐
ture.
•
The mounting site has to be designed for the weight of the device.
•
Mount the device in a shock and vibration insulated manner.
5.2 Mounting the lens and illumination unit

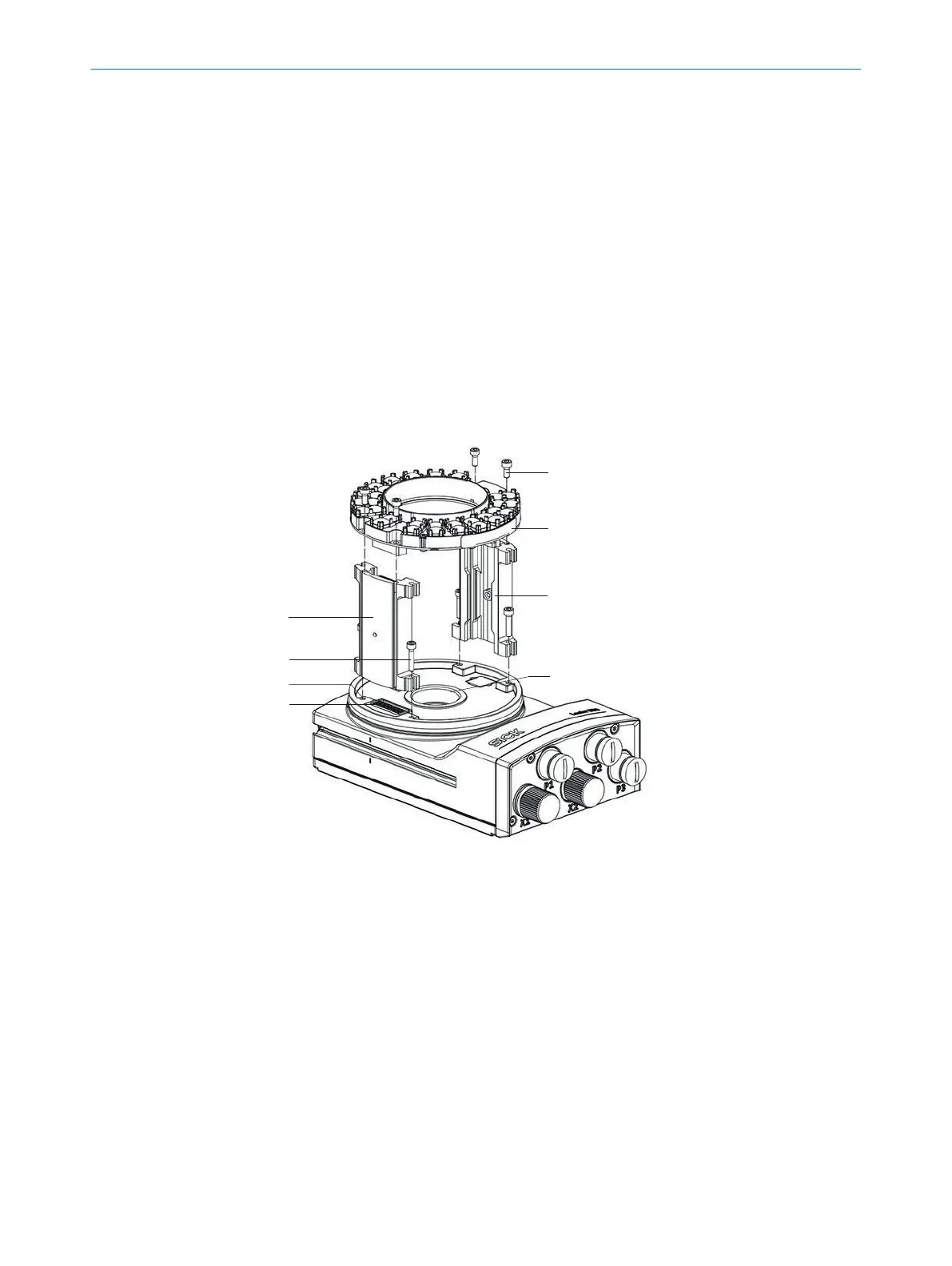

Overview
This mounting step is only required for the Lector85x Flex product variant (basic
device).
1
2
3
4
5
6
7
8
1
Spacer, left with electrical connection
2
4 tapped blind holes, M2.5, 5.5 mm deep, for mounting the spacer
3
4 long screws
4
Electrical connection for the integrated illumination unit
5
4 short screws
6
Integrated illumination unit
7
Spacer, right
8
Light inlet with threaded connection for the lens
MOUNTING 5
